60m HDMI Extender over Single Cat5e/6 Support 1080P60Hz POC EDID
Introduction

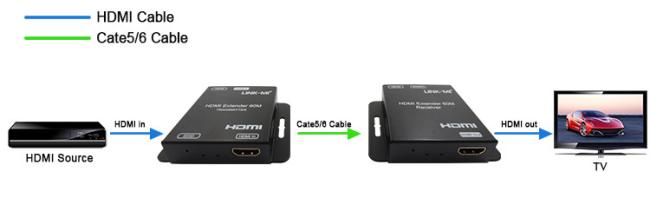

LINK-MI LM-EX74 60M HDMI Extender transmits digital audio and video over Cat5e/6 Cable. Its transmission distance is up to 60m. It comes with POC, EDID function.
Features
1.High definition resolution up to Full HD 1080p@60hz YUV4:4:4
2.Transmit over 60m CAT5e/6 without signal loss.
3.Supports 3D.
4.EDID management function with Copy and Built-in EDID.
5.Support LPCM up to 7.1/24bit/192khz.
6.Support bi-direction POC(60m distance when RX powered by TX; 30m when TX; powered by RX).
7.Support factory reset function.
Specification
|
Operating Temperature Range |
0 to +40°C (32 to +104°F) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Input Video Signal |
0.5-1.0 Volts P-P |
|
Input DDC Signal |
5 volts p-p(TTL) |
|
Support Video Format |
DTV/HDTV:720P/1080i/1080P 3D video |
|
Video Output |
HDMI |
|
Support Audio Format |
DTS-HD Master Audio,Dolby true-HD etc. |
|
Transmission Distance |
60m single CAT5e/6 without signal loss |
|
Power consumption |
2watts(Maximum) |
|
Dimension (L×W×H) |
TX: L79.3xW68xH16.5mm; RX: L79.3xW68xH16.5mm |
|
Net Weight |
232g |
| Note: Specifications are subject to change without notice | |

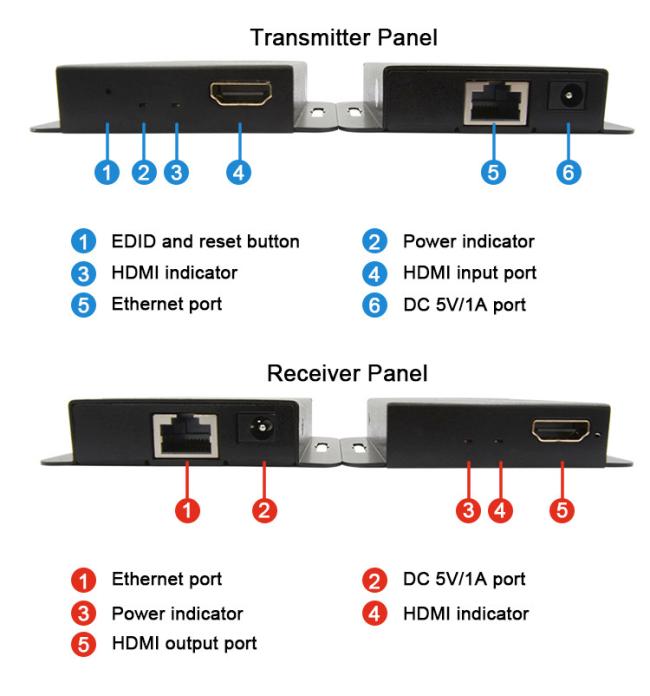

Panel Description
