2km HDMI Fiber Optic Extender Support 3D 4K EDID Video Extender over Fiber
Introduction
LINK-MI LM-THF123H The HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 4K*2K, EDID copy/pass-thru function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
1. Transmits HDMI video signals up to 2km-10km over a pair fiber optic cable;
2. Support video resolution up to 3840*2160@30Hz, 3D signal;
3. Support copy EDID copy/pass-thru, can match many kind display device;
4. Compliance with HMDI 1.4 standard;
5. High compatibility, can auto-match source and display device;
6. Built-in automatic adjustment system, make the image smooth, clear and stable;
7. Built-in ESD protection system;
8. Simple to install, plug and play.
Specification
| Parameter | Description | |
| Video | Standards | HDMI 1.4 |
| Maximum pixel clock | 225MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution range | Up to 3840*2160@30Hz | |
| Connector | Female HDMI type A | |
| Impedance | 100Ω | |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Single-mode | |
| Wavelength | Single-mode 1310nm | |
| Interface bandwidth | 10Gbps | |
| Transmission distance | Single-mode fiber: standard 2km；maximum 10km | |
| Other | Power supply | The power adapter: DC 5V/2A |
| Power dissipation | MAX 5W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 94.5*73*26mm | |
| The warranty | 1 year free warranty | |
| Note: Specifications are subject to change without notice | ||

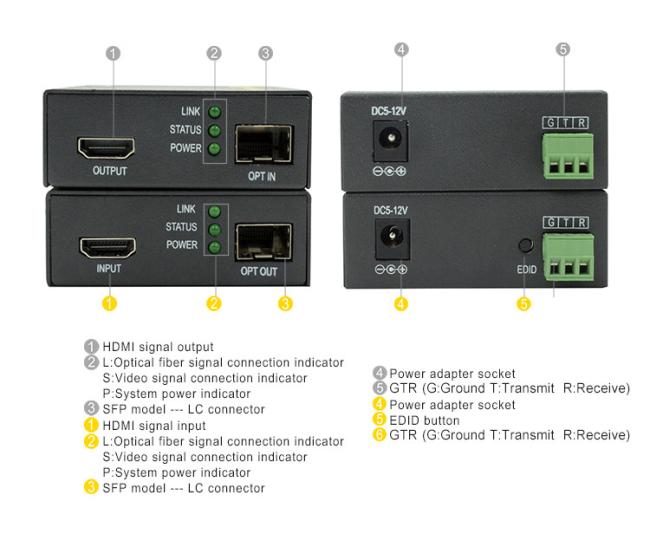

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
