40m HDMI Extender Support 4K@60Hz HDR HDBaseT Ultra Slim Extender Kit
40m HDMI Extender Support 4K@60Hz HDR HDBaseT Ultra Slim Extender Kit
Introduction
LINK-MI LM-EX53 HDBaseT Ultra Slim Extender Kit HDR, 4K@60Hz 4:4:4, up to 40M
Features
1. Bandwidth up to 18Gbps, resolution up to 4k @60hz YUV 4:4:4
2. Transmit up to 70m under 1080p, 40m under 4k
3. Support HDR10, 3D
4. With 1x looping HDMI out at Transmitter and 2 x HDMI out at Receiver
5. Bi-directional wide band IR and RS232 Pass through
6. Dual POC (Receiver powered by transmitter or transmitter powered by Receiver)
7. HDCP2.2/ HDCP1.4 Compliant
Specification
| Operating Temperature Range | -10 to +55°C (14 to +131 °F) |
| Operating Humidity Range | 5 to 90 % RH (no condensation) |
| Input Video Signal | 0.5-1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Video Format Supported |
DTV/HDTV; 4K/1080P/1080i/720P(50HZ)/576P/480P/576i/480i |
| Output Video | HDMI 2.0+HDCP1.4/2.2 |
| Output Audio | Support DTS-HD, Dolby-HD |
| Maximum Transmission Distance | 70 meters for 1080P, 40 meters for 4K |
| Power Supply | 24V1A |
| Poc | Power from TX to RX over Cat5/6 cable |
| Power Consumption | 12Watts |
| Dimensions | 139.4mmH×66.8mmW×20mmD |
| Mass (Main unit) | 0.54Kg (Pairs) |
| Note: Specifications are subject to change without notice | |

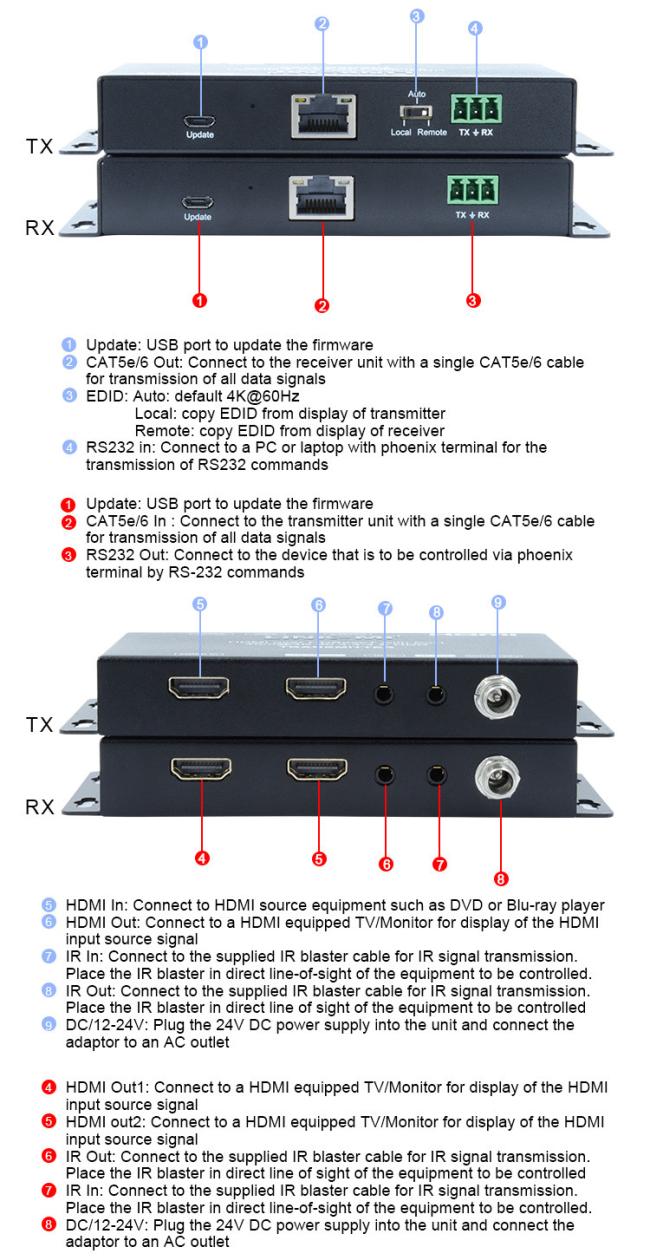

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
