2KM 1080p HDMI Extender Fiber Optic Extender HDMI Extender Over Fiber

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 5-7 work days
Brand: LINK-MI
Product Description

HDMI Fiber Optic Extender 2KM 1080p HDMI Extender over Fiber



Introduction

LINK-MI LM-DT200F The Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.



Features

1. Transmits HDMI video and audio signals up to 20km over one fiber optic cable;
2. Support video resolution up to 1920*1080@60Hz;
3. Compliance with HDMI 1.3 and HDCP 1.2 standard;
4. High compatibility, can auto-match source and display device;
5. Built-in automatic adjustment system, make the image smooth, clear and stable;
6. Built-in ESD protection system;
7. Simple to install, plug and play.



Specification

Parameter Description
Video Standards HDMI 1.3; HDCP 1.2
Maximum pixel clock 165MHz
Maximum data rate 6.75Gbps
Resolution range Up to 1920X1080P@60Hz
Connector HDMI-A
Impedance 100Ω
Optical fiber Interface SC connector
Fiber type Single Mode
Wavelength TX:1310nm/RX:1510nm
Interface bandwidth 155Mbps
Transmission distance Standard: 20km;
Other Power supply The power adapter: DC 5V
Power dissipation MAX 5W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension 102*72*25mm
The warranty 1 year free warranty
Note: Specifications are subject to change without notice

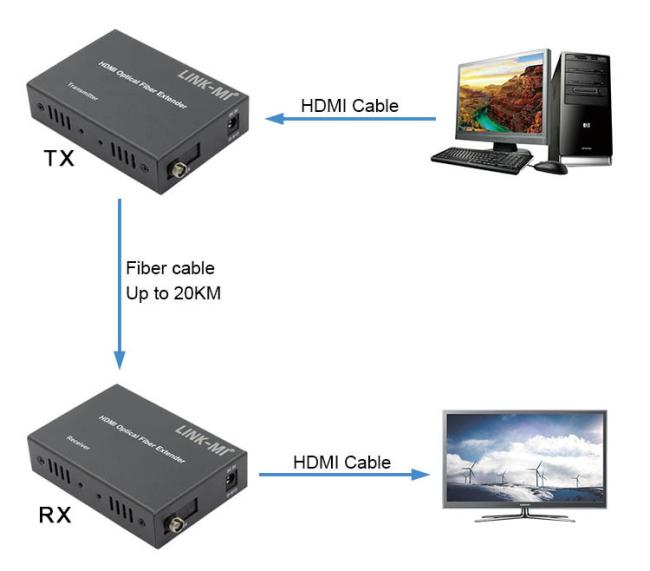

Connection Diagram

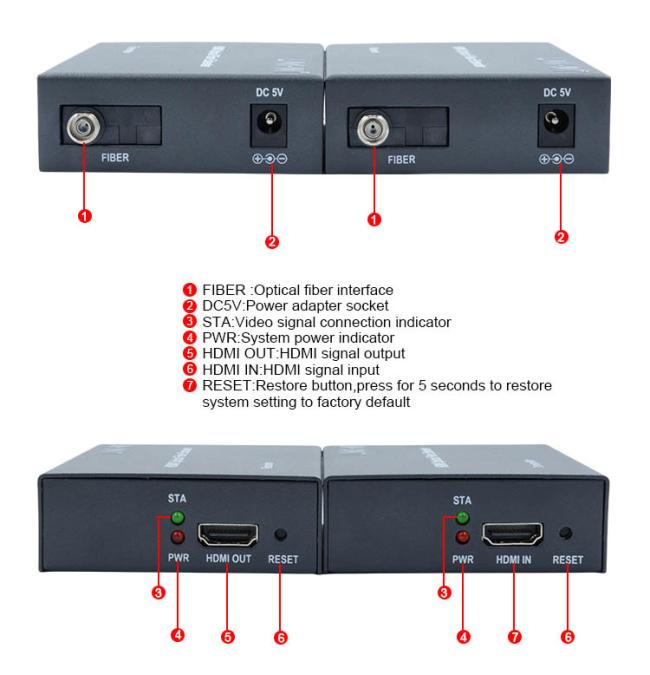

Panel Description



FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
