4K 40M HDBaseT HDMI+VGA Wallplate Extender Bi-Directional Wide Band IR RS232 Pass Through
4K 40M HDBaseT HDMI+VGA Wallplate Extender
Introduction

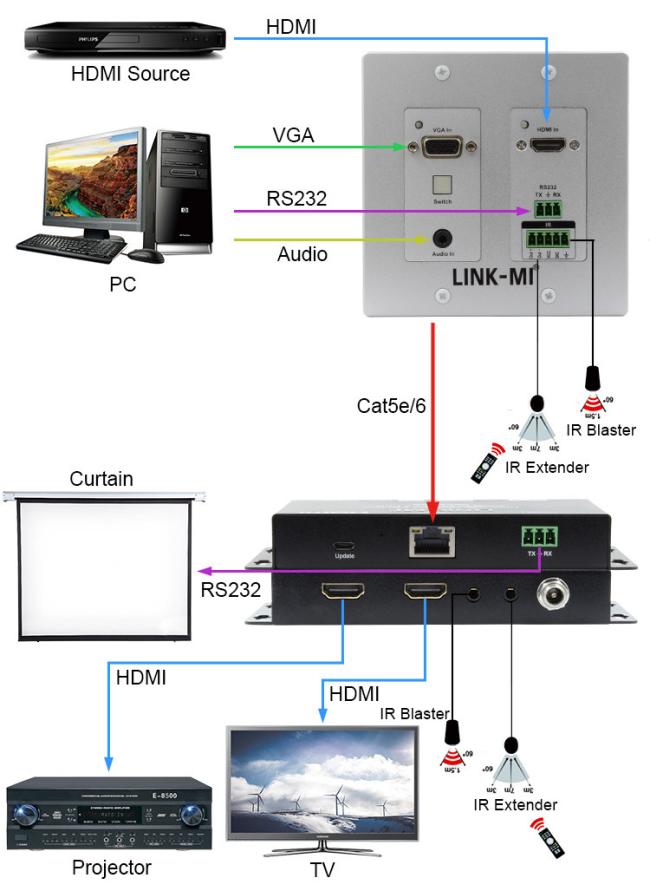

LINK-MI LM-EW53 4K 40M HDBaseT HDMI+VGA Wallplate Extender
Features
1. Transmitterin North American standard Wall plate .
2. Bandwidth up to 18Gbps, resolution up to 4k @60hz YUV4:4:4, VGA resolution reach up to 1920*1200.
3. Support Dolby TruHD, DTS-HD Master Audio,7.1 audio channel.
4. Transmit up to 70m under 1080p, 40m under 4k
5. Support HDR10, 3D
6. Support VGA or HDMI in, Switch by the Switch button on the faceplate
7. Bi-directional wide band IR (20-60KHZ)and RS232 Pass through
8. Dual POC(Receiver powered by transmitter or transmitter powered by Receiver)
9. HDCP2.2/HDCP1.4 Compliant
10. Support 2.0 Analog Audio embedded.
Specification
| Operating Temperature Range | -10 to +40°C (14 to +104 °F) |
| Operating Humidity Range | 5 to 90 % RH (no condensation) |
| Input Video Signal | 0.5-1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Video Format Supported |
DTV/HDTV; 4K/1080P/1080i/720P(50HZ)/576P/480P/576i/480i,VGA resolution . |
| Output Video | HDMI 2.0+HDCP1.4/2.2 |
| Output Audio | Support DTS-HD, Dolby-HD,71. channel. And support 2.0 analog audio in. |
| Maximum Transmission Distance | 70 meters for 1080P, 40 meters for 4K |
| Power Supply | 24V1A |
| Poc | Power from TX to RX over Cat5/6 cable |
| Power Consumption | 16.5Watts |
| Dimensions |
TX: 116mmH×115.5mmW×49.2mmD RX: 139.4mmH×66.8mmW×20mmD |
| Mass (Main unit) | Transmitter:260.6g ; Receiver:270g |

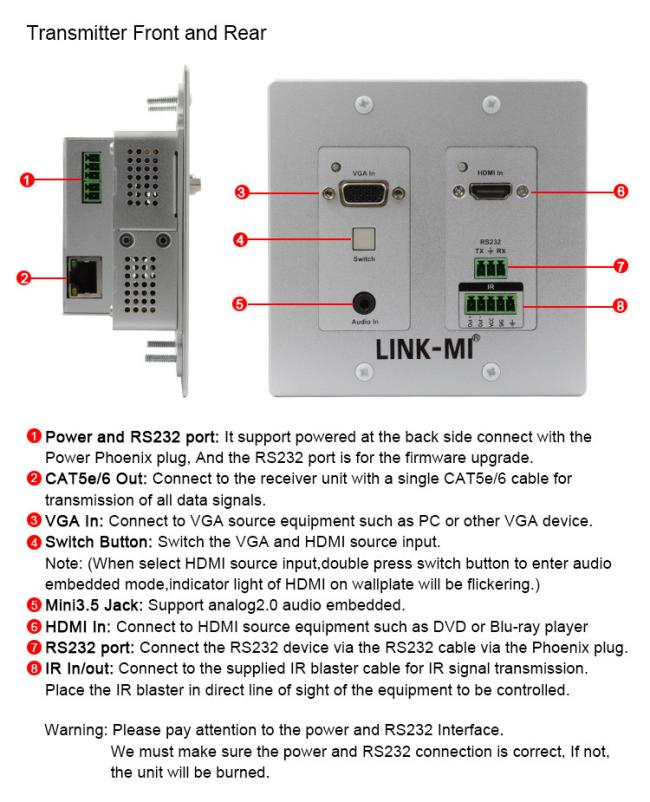

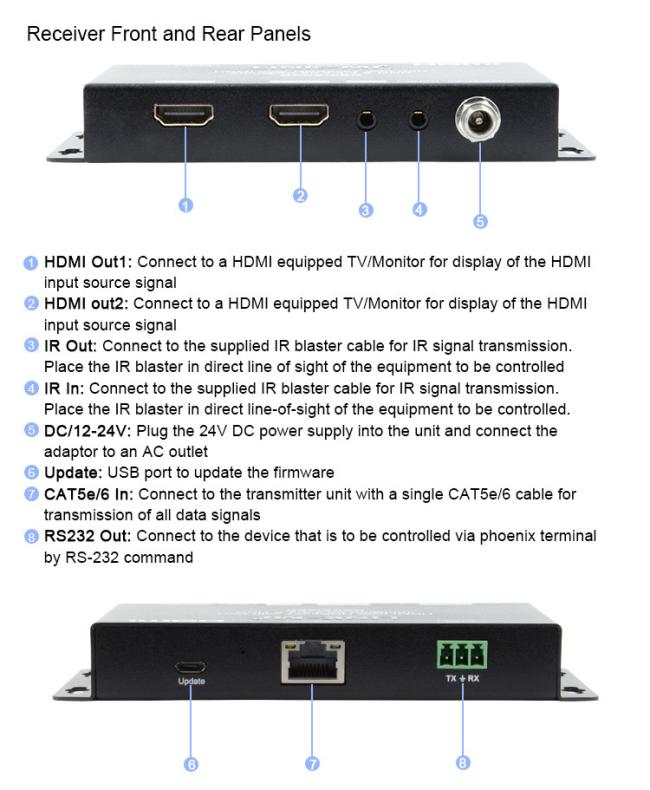

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
