HDMI And SD/HD/3G-SDI Wireless Extender 700M 5GHz All-Metal Shell
HDMI and SD/HD/3G-SDI wireless extender 700M 5GHz
Introduction
LINK-MI LM-WX700 HDMI and SD/HD/3G-SDI wireless extender 700M 5GHz
Features
1.Uncompressed 3G/HD/SD-SDI and HDMI, up to 1080p 50/60
2.Less than 1 frame latency
There is no discernible video delay and you can use it as real time on-location monitoring.
3.Operating range: 2296FT (line of sight), the transmission distance may be different, depend on surroundings, radio wave conditions,
buildings block, etc.
4.Operating band: 5GHz ISM band
5.Multicast support
Support one transmitter to multi receivers. User can set channel to pair both the transmitter and receivers.
6.AES 128 encryption
7.OLED shown in work status
8.All-Metal Shell

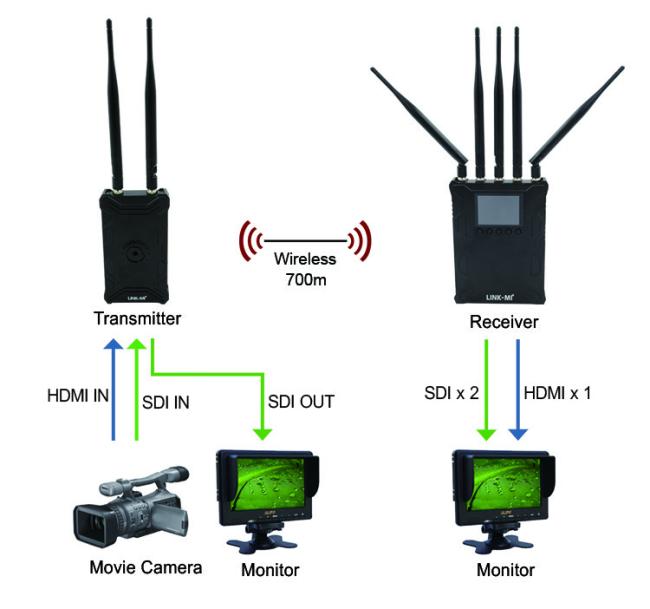

9.Simple connection
Specification
| item | specification |
| Frequency | 5.1-5.9(GHz)*Subject to different RF regulations in different regions. |
| Bandwidth | 40MHz |
| Video Formats Supported |
1080p 23.98/24/25/30/50/60 1080psf 23.98/24/25 1080i 50/59.94/60 720p 50/59.94/60 576p 576i 480p 480i |
| Audio Formats Supported | PCM, DTS-HD, Dolby TrueHD |
| Transmission Range | >2296FT(Line of sight) |
| Transmitter | |
| Antenna | External Antenna × 2pcs |
| Transmission Power | 18dBm |
| Functional Interface | HDMI Input; SDI Input; SDI Loop Output; Mini USB; LEMO Power IN; Antenna RPSMA Socket; Power ON/OFF |
| Mounting Structure | 1/4” Hot-shoe connection |
| OLED Display | Wireless Channel Info; video status; Battery info. |
| Working Voltage | 9-18V by DC input, F970 battery |
| Power Consumption | 7-8W |
| Net Weight(with antenna) | 400g |
| Dimensions | 142.5×76×24.3mm |
| Temperature | -10-50℃(Operating); -40-80℃(Storage) |
| Receiver | |
| Antenna | External Antenna × 5pcs |
| Receiving Sensitivity | -70dBm |
| Functional Interface |
SDI Dual Output; HDMI Output; Mini USB; LEMO Power IN; Antenna RPSMA Socket; Power ON/OFF |
| Locating Structure | 1/4” Hot-shoe connection |
| OLED Display | Wireless Channel Info; SDI/HDMI Input Info; Signal Status; Power Info |
| Working Voltage | 9-18V by DC input, SONY V-mount battery |
| Power Consumption | 7-8W |
| Net Weight(with antenna) | 800g |
| Dimensions | 169.5×122×25.2mm |
| Temperature | -10-50℃(Operating); -40-80℃(Storage) |

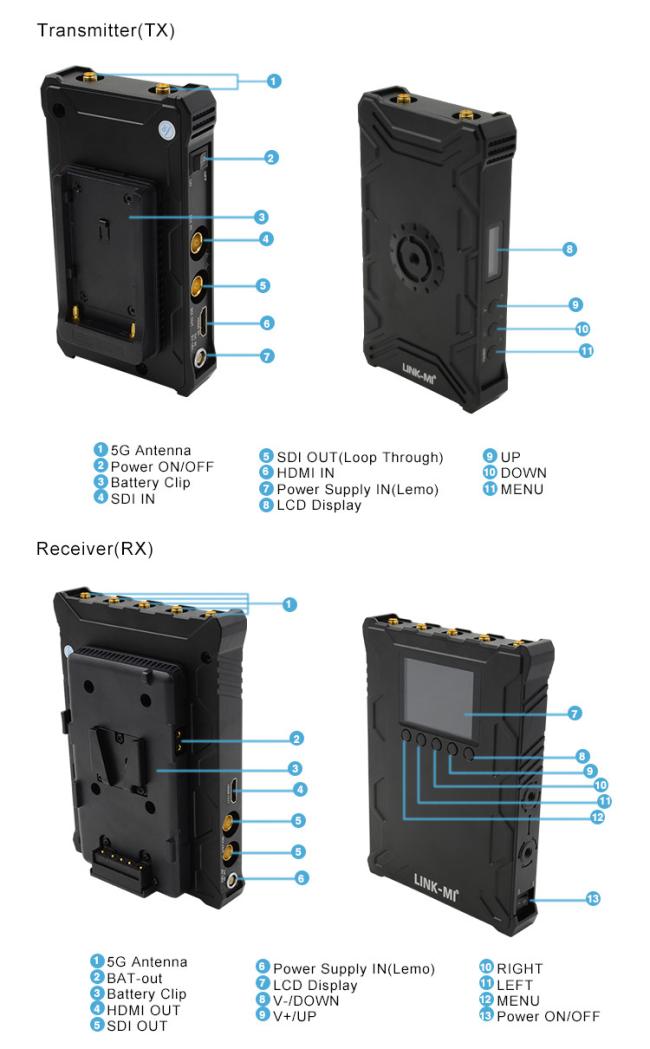

Panel Description
