2A13 Aluminum Sheet Plate Painted Aluminum Sheets 5x10 2mm 3mm 4mm Thickness
5x10 Aluminum Sheet 2mm 3mm 4mm Thickness 2024(2A12), LY12, LY11, 2A13 ,2017 Aluminum Plate Metal
2017 aluminum alloy sheet is a high-strength heat-treatable alloy in the 2xxx series.
The characteristics of the 2017 aluminum alloy sheet are: high strength, certain heat resistance, and can be used as working parts below 150°C. At temperatures above 125°C, the strength of the 2017 aluminum alloy sheet is higher than that of the 7075 alloy. The forming properties of the 2017 aluminum alloy sheet are relatively good in the hot state, annealed, and newly quenched state, and the heat treatment strengthening effect is remarkable, but the heat treatment process requirements are strict.
Product Parameters :
1)Product Specification and Steel Grade
| Type | 2017 Aluminum Sheet |
| 1000 Series | 1050 1060 1070 1100 |
| 2000 Series | 2024(2A12), LY12, LY11, 2A13, 2A14(LD10), 2017, 2A17 |
| 3000 Series | 3A21, 3003, 3103, 3004, 3005, 3105 |
| 4000 Series | 4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A |
| 5000 Series | 5052, 5083, 5754, 5005, 5086,5182 |
| 6000 Series | 6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02 |
| 7000 Series | 7075,7050,7A04,7472,7475 |
| Thickness(mm) | aluminum plate 0.2mm-300mm |
| Width(mm) | 100-2800mm |
| Length(mm) | 2000mm,2440mm,6000mm, or as required. |
| Surface | Wire drawing, oxidation, PS, Mirror surface, Embossing etc |
| Temper | H111 H112 H116/H321 H12/H22/H32 H14/H24/H34/H16/H26/H36 H18/H28/H38 H114 |
| Type | coil/sheet/strips/plate |
| Payment | L/C, T/T, D/P, West Union, etc. |
| Package | Standard export packages, such as Wooden pallets |
2)Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: | Others: | Al: Min. |
| Each | Total | ||||||||||
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.6 |
| 1100 | 0.95 Si + Fe | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99 | |
| 3003 | 0.6 | 0.7 | 0.05~0.20 | 1.0~1.5 | - | - | 0.1 | - | 0.05 | 0.15 | remainder |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | remainder |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0~1.5 | 0.2~0.6 | 0.1 | 0.25 | 0.1 | 0.05 | 0.15 | remainder |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | remainder |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | 0.1 | - | 0.05 | 0.15 | remainder |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6~3.6 | 0.3 | 0.2 | 0.15 | 0.05 | 0.15 | remainder |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | remaind |

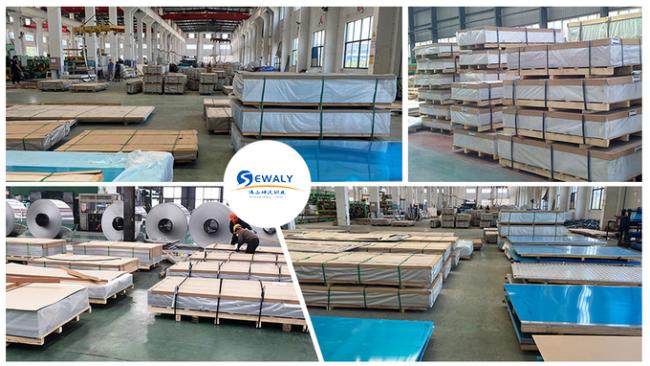

AluminumSheet Product Factory Building:
2017 aluminum alloy sheet Chemical Composition:
Copper (Cu): 3.5-4.5%; Manganese (Mn): 0.4-1.0%; Magnesium (Mg): 1.2-2.0%; Iron (Fe): 0.7%; Silicon (Si): 0.2-0.8%; Zinc (Zn): 0.7-1.3%; Titanium (Ti): 0.15%; Others (each): 0.05%; Others (total): 0.15%; Aluminum (Al): Remaining balance.
Aluminum Sheet Application:
2017 aluminum alloy sheet Widely used in aircraft structures, rivets, truck hubs, propeller components, and various other structural parts.
2017 aluminum plate is usually used in rivets, general mechanical parts, aircraft, ships, transportation, building structural parts, transportation structural parts, propeller components and accessories, etc.
2017 aluminum alloy sheet used in certain parts of the transportation industry, such as automotive components.
Machined Parts: A 2017 aluminum alloy sheet is often chosen for applications where excellent machinability is a priority.
Aluminum Sheet Package:
Standard Seaworthy Wood Pallets, or according to customer's requests.
FAQ
Q1. Where is your factory?
A1: Our company’s processing center is located in Foshan, Guangdong, China. It is well equipped with kinds of machines, such as laser cutting machine, mirror polishing machine and so on. We can provide a wide range of personalized services according to the customers’ needs.
Q2. What are your company's main products?
A2: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q3. How do you control quality?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company?
A4: We have many professionals, technical personnel, more competitive prices, and better after-sale service than other stainless steel companies.
Q5. How many countries have you already exported?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan, India, etc.
Q6. Can you provide a sample?
A6: Small samples in store and can provide the samples for free. Customized samples will take about 5-7 days.
