Polished Aluminum Round Tubing 2024 LY12 LY11 2A11 Aluminum Pipe Tube
Aluminum Round Tubing Polished 2024(2A12), LY12, LY11, 2A11 Aluminum Pipe Tube China Supplier
2A12 aluminum tube is a kind of high-strength hard aluminum, which can be strengthened by heat treatment; 2A12 aluminum tube has good weldability in spot welding, and has a tendency to form intergranular cracks when gas welding and argon arc welding are used; 2A12 aluminum tube can be cut after cold hardening The performance is still good. The corrosion resistance is not high, and anodic oxidation treatment and painting or aluminum coating are often used to improve the corrosion resistance.
1, Product Parameters :
1)Product Specification and Steel Grade
| Type | 2A12 Aluminum Pipe Tube |
| 1000 Series | 1050 1060 1070 1100 |
| 2000 Series | 2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17 |
| 3000 Series | 3A21, 3003, 3103, 3004, 3005, 3105 |
| 4000 Series | 4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A |
| 5000 Series | 5052, 5083, 5754, 5005, 5086,5182 |
| 6000 Series | 6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02 |
| 7000 Series | 7075,7050,7A04,7472,7475 |
| Specifcation for round pipe | OD: 15mm-160mm; WT: 0.3-50mm; Length: 1-12m |
| Specification for square pipe | SIZE:7X7mm- 150X150 mm; WT: 1-40mm; Length:1-12m |
| Surface | Mill finished, anodized, powder coating, Sandblas, etc |
| Temper | H111 H112 H116/H321 H12/H22/H32 H14/H24/H34/H16/H26/H36 H18/H28/H38 H11. |
| MOQ | 5ton, We can accept sample orders. |
| Delivery port | Shanghai, Tianjin, Qingdao, Ningbo, Guangzhou, etc. |
| Packaging Detail | Standard export packaging, various transportation, according to customer needs |
2)Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: | Others: | Al: Min. |
| Each | Total | ||||||||||
| 2A12 | 0.50 | 0.50 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | - | 0.30 | 0.15 | 0.05 | 0.15 | remainder |
| 2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-1.0 | 0.4-0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 3A21 | 0.6 | 0.7 | 0.20 | 1.0-1.6 | 0.05 | - | 0.10 | 0.15 | 0.05 | 0.05 | remainder |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | remainder |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0~1.5 | 0.2~0.6 | 0.1 | 0.25 | 0.1 | 0.05 | 0.05 | remainder |
| 5A06 | 0.4 | 0.4 | 0.4 | 0.5-0.8 | 5.8-6.8 | - | 0.20 | 0.02-0.10 | 0.05 | 0.1 | remainder |
| 5A02 | 0.4 | 0.4 | 0.4 | 0.15-0.4 | 20.-2.8 | - | - | 0.15 | 0.05 | 0.05 | remainder |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | 0.1 | - | 0.05 | 0.15 | remainder |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6~3.6 | 0.3 | 0.2 | 0.15 | 0.05 | 0.15 | remainder |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 6082 | 0.7-1.3 | 0.50 | 0.10 | 0.4-1.0 | 0.6-1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | remainder |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 7A09 | 0.5 | 0.5 | 1.2-2.0 | 0.15 | 2.0-3.0 | 0.16-0.30 | 5.1-6.1 | 0.10 | 0.05 | 0.15 | remainder |
| 7A04 | 0.5 | 0.5 | 1.4-2.0 | 0.2-0.6 | 1.8-2.8 | 0.1-0.25 | 5.0-7.0 | 0.10 | 0.05 | 0.15 | remainder |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.6 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | 0.05 | 0.15 | remainder |
| 7050 | 0.12 | 0.15 | 2.0-2.6 | 0.10 | 1.9-2.6 | 0.04 | 5.7-6.7 | 0..06 | 0.05 | 0.15 | remainder |

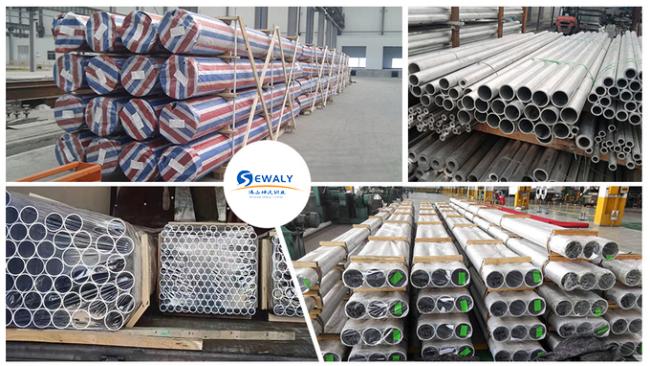

Aluminum Coil Workshop:
Aluminum Pipe Application:
1. The use of 2A12 is mainly used to make various high-load parts and components such as skeleton parts, skins, bulkheads, wing ribs, spars, rivets and other working parts below 150 °C on the aircraft.
2. 2A12-T4 seamless aluminum tubes are used in high temperature environments such as aero engines and automobile engines. 2A12-T4 seamless aluminum tube has good corrosion resistance and can be used in high temperature environment. In addition, the material has good strength and rigidity.
Aluminum Coil Package:
