China Supplier Aluminum Round Tubing 6063 6181 6082 6005 Aluminum 2 Inch Pipe Tube
China Supplier Aluminum Round Tubing 6063 6181 6082 6005 Aluminum 2 Inch Pipe Tube
6005 aluminum pipe tube is a medium-strength aluminum alloy mainly used for some structural profiles.
6005 aluminum pipe tube has excellent extrusion performance and can be quenched on the extrusion machine train.
6005 aluminum pipe has medium strength, good plasticity, corrosion resistance, weldability and processability, and excellent overall performance. The tensile strength and yield strength of the 6005 aluminum pipe tube are equal to that of 6063, the elongation is twice that of 6063, and the mechanical properties are higher than that of the 6063 aluminum pipe tube.
1, Product Parameters :
1)Product Specification and Steel Grade
| Type | 6005Aluminum Pipe Tube |
| 1000 Series | 1050 1060 1070 1100 |
| 2000 Series | 2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17 |
| 3000 Series | 3A21, 3003, 3103, 3004, 3005, 3105 |
| 4000 Series | 4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A |
| 5000 Series | 5052, 5083, 5754, 5005, 5086,5182 |
| 6000 Series | 6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02,6005 |
| 7000 Series | 7075,7050,7A04,7472,7475 |
| Specification for round pipe | OD: 15mm-160mm; WT: 0.3-50mm; Length: 1-12m |
| Specification for square pipe | SIZE:7X7mm- 150X150 mm; WT: 1-40mm; Length:1-12m |
| Surface | Mill finished, anodized, powder coating, Sandblas, etc |
| Temper | H111 H112 H116/H321 H12/H22/H32 H14/H24/H34/H16/H26/H36 H18/H28/H38 H11. |
| MOQ | 5ton, We can accept sample orders. |
| Delivery port | Shanghai, Tianjin, Qingdao, Ningbo, Guangzhou, etc. |
| Packaging Detail | Standard export packaging, various transportation, according to customer needs |
2)Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: | Others: | Al: Min. |
| Each | Total | ||||||||||
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.5 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.6 |
| 1100 | 0.95 Si + Fe | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99 | |
| 3003 | 0.6 | 0.7 | 0.05~0.20 | 1.0~1.5 | - | - | 0.1 | - | 0.05 | 0.15 | remainder |
| 2A12 | 0.50 | 0.50 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | - | 0.30 | 0.15 | 0.05 | 0.15 | remainder |
| 2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-1.0 | 0.4-0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 3A21 | 0.6 | 0.7 | 0.20 | 1.0-1.6 | 0.05 | - | 0.10 | 0.15 | 0.05 | 0.05 | remainder |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | remainder |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0~1.5 | 0.2~0.6 | 0.1 | 0.25 | 0.1 | 0.05 | 0.05 | remainder |
| 5A06 | 0.4 | 0.4 | 0.4 | 0.5-0.8 | 5.8-6.8 | - | 0.20 | 0.02-0.10 | 0.05 | 0.1 | remainder |
| 5A02 | 0.4 | 0.4 | 0.4 | 0.15-0.4 | 20.-2.8 | - | - | 0.15 | 0.05 | 0.05 | remainder |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | remainder |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | 0.1 | - | 0.05 | 0.15 | remainder |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6~3.6 | 0.3 | 0.2 | 0.15 | 0.05 | 0.15 | remainder |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.05 | remainder |
| 6005 | 0.17-0.35 | 1.6-2.5 | 0.1-0.25 | 0.15-0.3 | 0.05-0.1 | 0.1 | 1-1.4 | 0.15 | 0.05 | 0.05 | remainder |
| 7A04 | 0.5 | 0.5 | 1.4-2.0 | 0.2-0.6 | 1.8-2.8 | 0.1-0.25 | 2.0-7.0 | 0.1 | 0.05 | 0.05 | remainder |

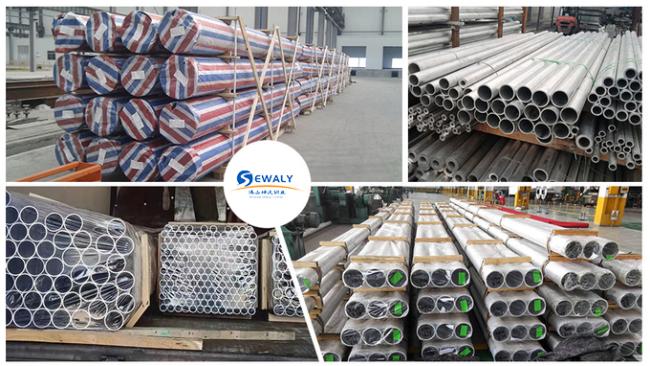

Aluminum Pipe Workshop:
Aluminum Pipe Application:
6005 aluminum tubes have guaranteed mechanical properties when used on building curtain walls. After testing by the Quality Center, their air permeability, rainwater permeability, wind pressure deformation performance, and in-plane deformation performance have all reached the first-level level stipulated in national standards.
6005 aluminum tube is mainly used to manufacture welded structural parts, and mechanical parts with high plasticity and high corrosion resistance.
6005 aluminum tubes are mainly used in the manufacture of urban rail passenger cars, railway passenger cars, especially high-speed EMUs.
Aluminum Pipe Package:
