Precision Stainless Steel Coil 316 316L Cold Rolled ASTM Stainless Steel Strip
Aisi Customized Size 316 316L Precision Stainless Steel Coil Cold Rolled Stainless Steel Strip Supplier
316L stainless steel coil has good corrosion resistance and can be used in a variety of media; 316L stainless steel coil is added with Mo to improve the corrosion resistance of reducing salts; 316L stainless steel coil is resistant to corrosion from the ocean and industrial atmosphere and can be used in In seawater equipment; 316L stainless steel coils have excellent resistance to grain boundary corrosion due to their low carbon content; 316L stainless steel coils can be used in pulping and papermaking machinery; 316L stainless steel coils have good processing performance and weldability.
Product Parameters :
1)Product Specification and Steel Grade
| Type | 316L Stainless Steel Cold Rolled Coil |
| Grade | 201, 202, 204 Cu3, 301, 304, 304L, 310S, 316L, 321, 409L, 410S, 420J2, 430, 439, 441, 444, 445 |
| Surface Finish | 2B, 2D, BA, No.3, No.4, No.5, SB, HL |
| Thickness | 0.3~3.0 mm |
| Length | no defined |
| Width | 610~1524 mm |
| Inner Diameter | 610 or 508 +0/-5 mm |
| Width Tolerance | Mill Edge:Aim ±10;Cut Edge:Aim ±10,Aim -0 / +1 |
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc |
| MOQ | 1 ton , We can accept sample order. |
| Delivery port: | Shanghai, Tianjin, Qingdao, Ningbo, Guangzhou, etc. |
| Packaging Detail | Standard export packaging, various transportation, according to customer needs |
2)Chemical Composition
| Grade | C | Si | Mn | Cr | Ni | S | P | Mo | N |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | 16.00～18.00 | 10.0-14.0 | ≤0.03 | ≤0.045 | 2.0-3.0 | - |
| 317L | ≤0.03 | ≤1.00 | ≤2.00 | 18.0～20.0 | 11.0-15.0 | ≤0.03 | ≤0.045 | 3.0-4.0 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | 16.00～18.00 | 10.0-14.0 | ≤0.03 | ≤0.045 | 2.0-3.0 | - |
3)Physical Properties
| Grades | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(50mm)/% | HB | HRB | HV |
| 316L | ≥480 | ≥177 | ≥40% | ≤187 | ≤90 | ≤200 |
| 317L | ≥480 | ≥177 | ≥40% | - | - | ≤200 |
| 316 | ≥520 | ≥205 | ≥40% | ≤187 | ≤90 | ≤200 |

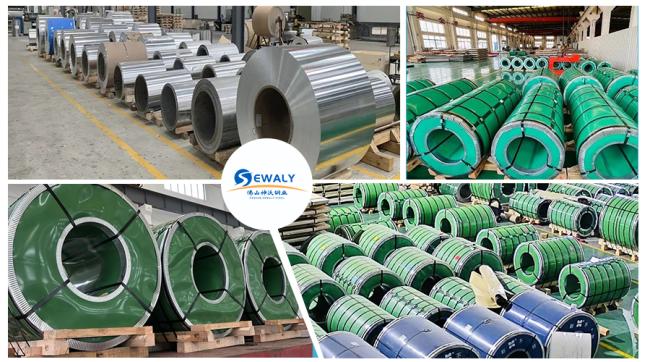

Stainless Steel Coil Product Factory Building:
Stainless Steel Coil Application:
316L stainless steel coils have BA surface, 2B surface, NO.1 (white leather), 2D surface, NO.4 (frosted), HL (brushed), 8K surface, etc. The surface quality is good and the brightness is good.
The main uses of 316L stainless steel coils include heat exchangers for pulp and papermaking equipment, dyeing equipment, film processing equipment, pipelines, and exterior materials for buildings in coastal areas. 316L stainless steel coils are also used in the field of solenoid valves, mainly used for shells, clamps, balls, valve bodies, valve seats, etc.
Stainless Steel Coil Package:
Standard Seaworthy Wood Pallets, or according to customer's requests.
FAQ
Q1. Where is your factory?
A1: Our company’s processing center is located in Foshan, Guangdong, China. It is well equipped with kinds of machines, such as laser cutting machine, mirror polishing machine and so on. We can provide a wide range of personalized services according to the customers’ needs.
Q2. What are your company's main products?
A2: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q3. How do you control quality?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company?
A4: We have many professionals, technical personnel, more competitive prices, and better after-sale service than other stainless steel companies.
Q5. How many countries have you already exported?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan, India, etc.
Q6. Can you provide a sample?
A6: Small samples in store and can provide the samples for free. Customized samples will take about 5-7 days.
