304 316 316L Stainless Steel Flat Bar Hot Rolled Length Customized
Factory Directly Sale Hot Rolled Cutting Flat Rolled Flat Bar 304 316 316l Stainless Steel Flat Profile
Stainless steel flat steel can be composed of different stress-bearing components according to different needs of the structure, and can also be used as a connector between components.
The raw steel billet for the production of stainless steel flat steel is low carbon billet, and the finished stainless steel flat steel is delivered in the form of hot rolling, cold rolling or hot rolling. During the transaction, the Shanghai Walmay Metal Group contract and other documents will fill in the complete side width and thickness dimensions of the stainless steel flat steel, as well as other main process matters, such as annealing, solid solution, etc.
Product Parameters :
1)Product Specification and Steel Grade
| Type | Stainless Steel Flat Bar |
| Grade | 201 202 304 316 3166 410 430 904l |
| Surface Finish | NO.4, HL, 2B, bright, NO.1, mill finish |
| Technique | Cold Rolled; Hot Rolled |
| Thickness: | 3mm-40mm, 1/8″ – 5/8″, etc. |
| Width: | 20mm-120mm, 1″ – 4.1/2″, etc. |
| Standard | JIS/SUS/GB/DIN/ASTM/AISI/EN |
| MOQ | 1 ton , We can accept sample order. |
| Delivery port: | Shanghai, Tianjin, Qingdao, Ningbo, Guangzhou, etc. |
| Packaging Detail | Standard export packaging, various transportation, according to customer needs |
2)Chemical Composition
| Grade | C | Si | Mn | Cr | Ni | S | P | Mo | N |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | 16.00～18.00 | 10.0-14.0 | ≤0.03 | ≤0.045 | 2.0-3.0 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | 16.00～18.00 | 10.0-14.0 | ≤0.03 | ≤0.045 | 2.0-3.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.00 | 24.00～26.00 | 19.0-22.0 | ≤0.03 | ≤0.035 | - | - |
3)Physical Properties
| Grades | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(50mm)/% | HB | HRB | HV |
| 316L | ≥480 | ≥177 | ≥40% | ≤187 | ≤90 | ≤200 |
| 316 | ≥520 | ≥205 | ≥40% | ≤187 | ≤90 | ≤200 |
| 310S | ≥515 | ≥205 | ≥40% | ≤217 | ≤95 | ≤225 |

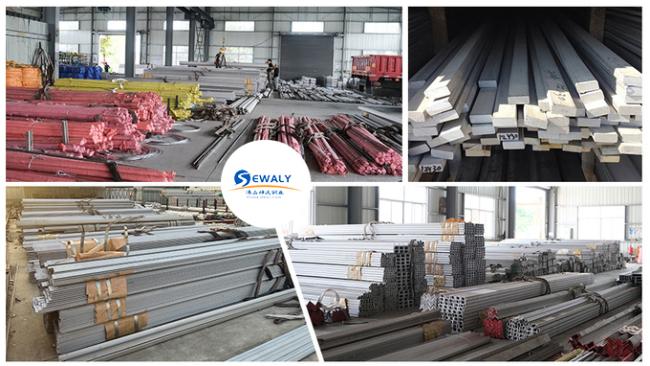

Stainless Steel Profile Product Factory Building:
Stainless Steel Profile Application:
Stainless steel flat steel is widely used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reactors, container racks and warehouse shelves.
Stainless steel flat steel is used in bridges, houses, fences, power transmission ships, vehicles and other buildings.
Shanghai Walmay Metal Group has a large and stable supply of goods and long-term supply; timely delivery and rich export experience.
Stainless Steel Profile Stock:
Standard Seaworthy Wood Pallets, or according to customer's requests.
FAQ
Q1. Where is your factory?
A1: Our company’s processing center is located in Foshan, Guangdong, China. It is well equipped with kinds of machines, such as laser cutting machine, mirror polishing machine and so on. We can provide a wide range of personalized services according to the customers’ needs.
Q2. What are your company's main products?
A2: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q3. How do you control quality?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company?
A4: We have many professionals, technical personnel, more competitive prices, and better after-sale service than other stainless steel companies.
Q5. How many countries have you already exported?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan, India, etc.
Q6. Can you provide a sample?
A6: Small samples in store and can provide the samples for free. Customized samples will take about 5-7 days.
