Hydraulic 8t Dredging Excavator Thumb Grab Q345B/NM400 Manganese Steel
Price:
$300-10000
MOQ:
1 PC
Delivery Time:
7 days
Brand:
RSBM
Product Description
Hydraulic 8t Dredging Grab Bucket/ Thum Bucket for Grab Metal
Product Description

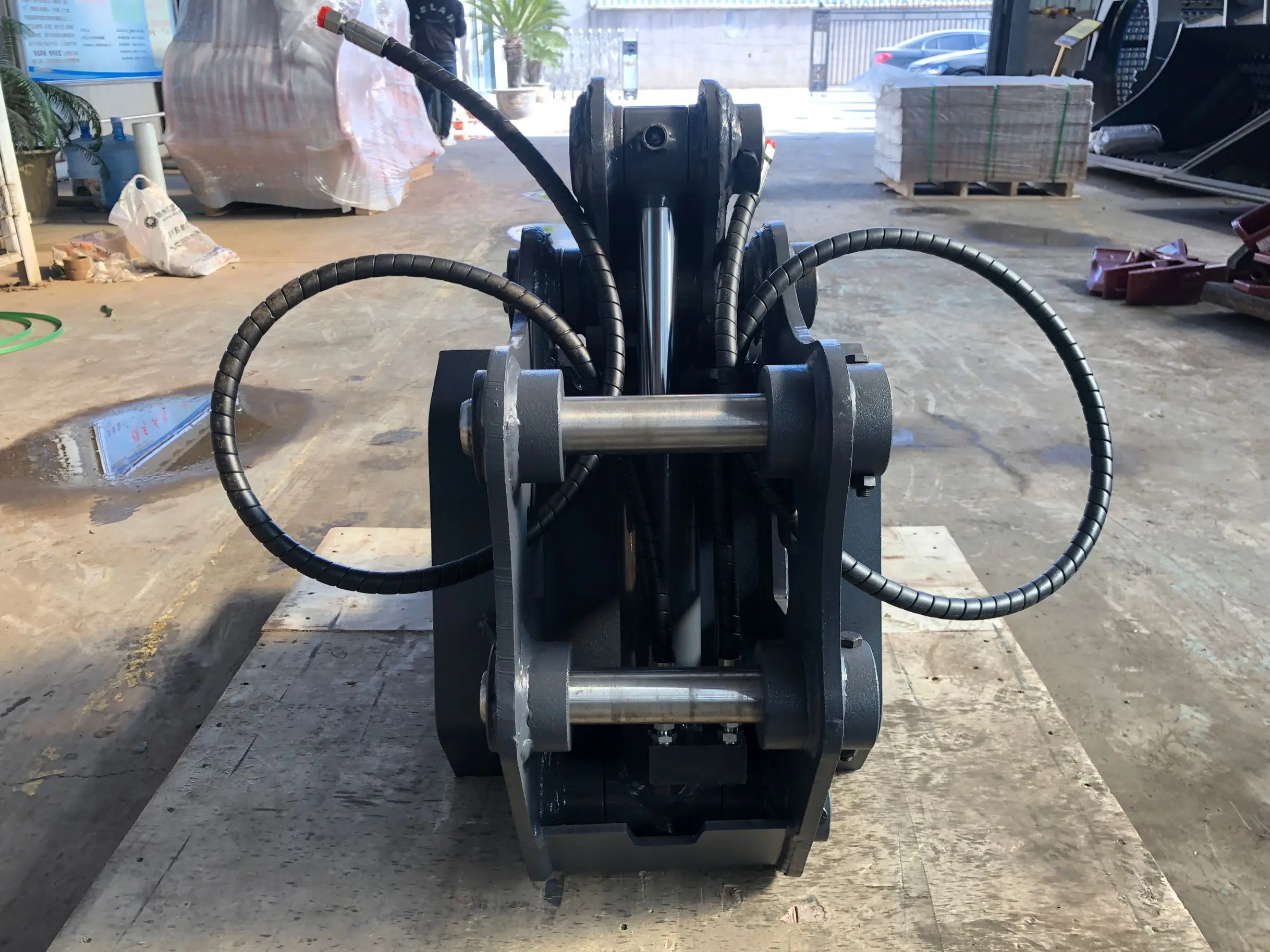

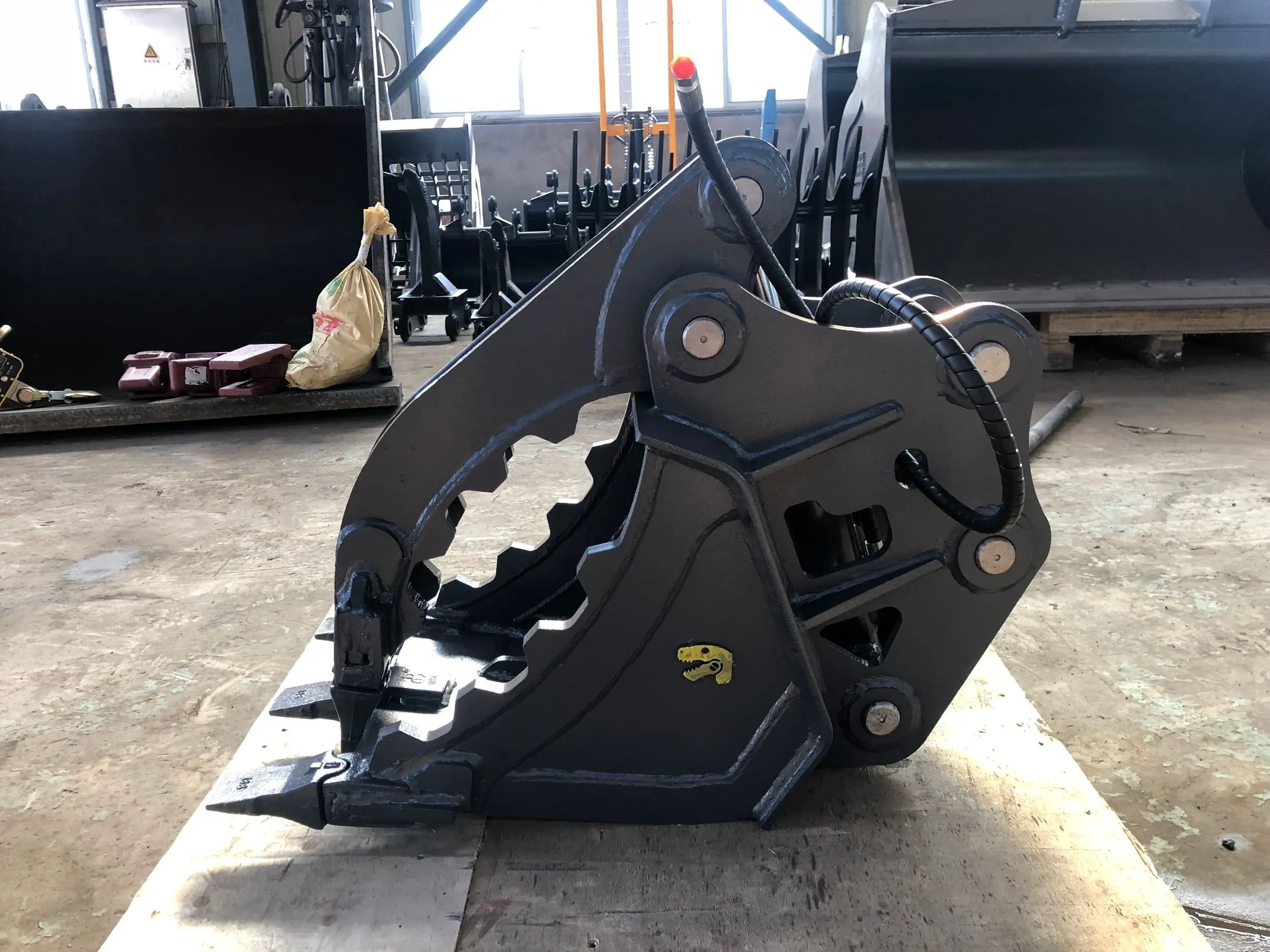

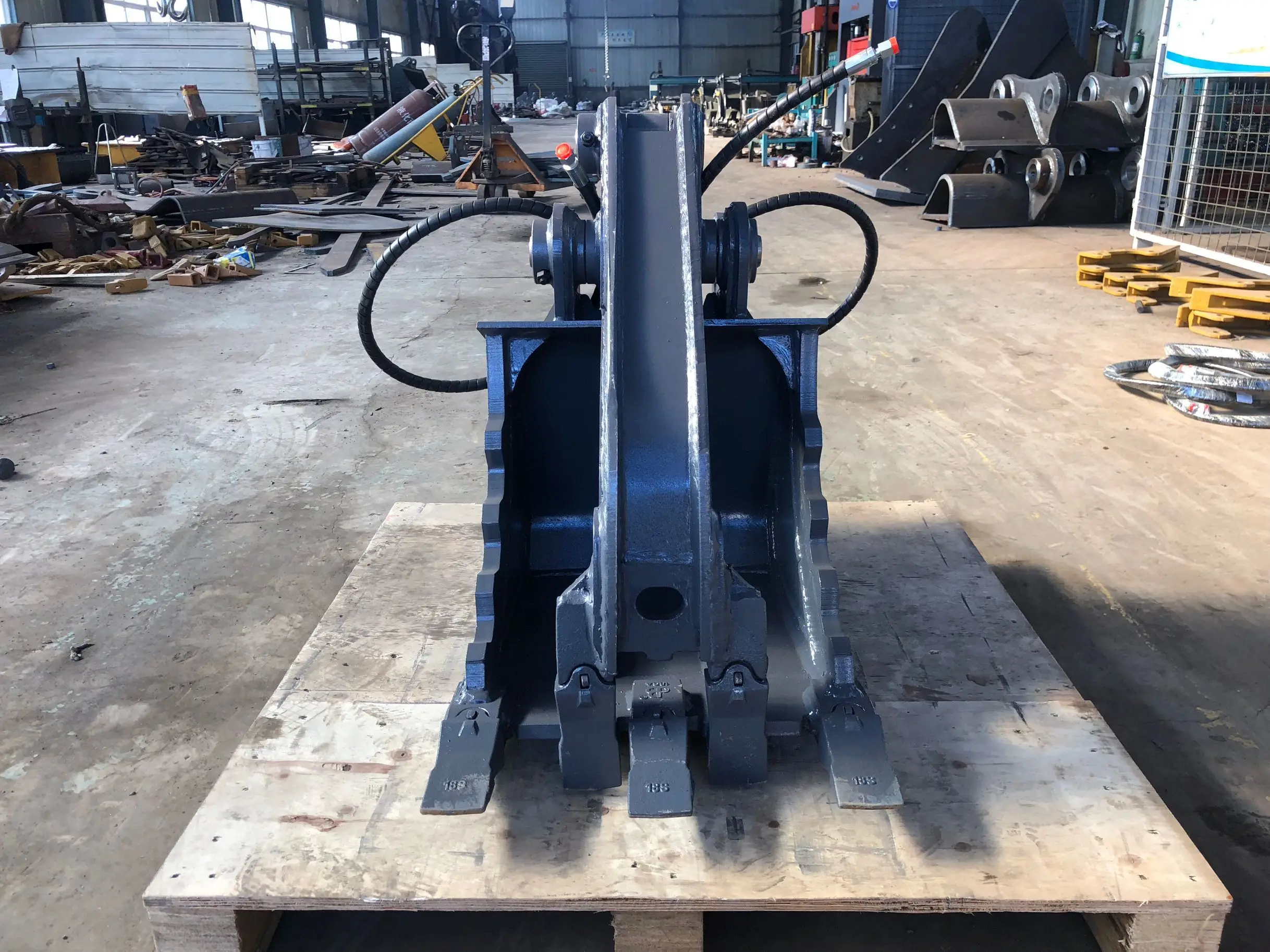

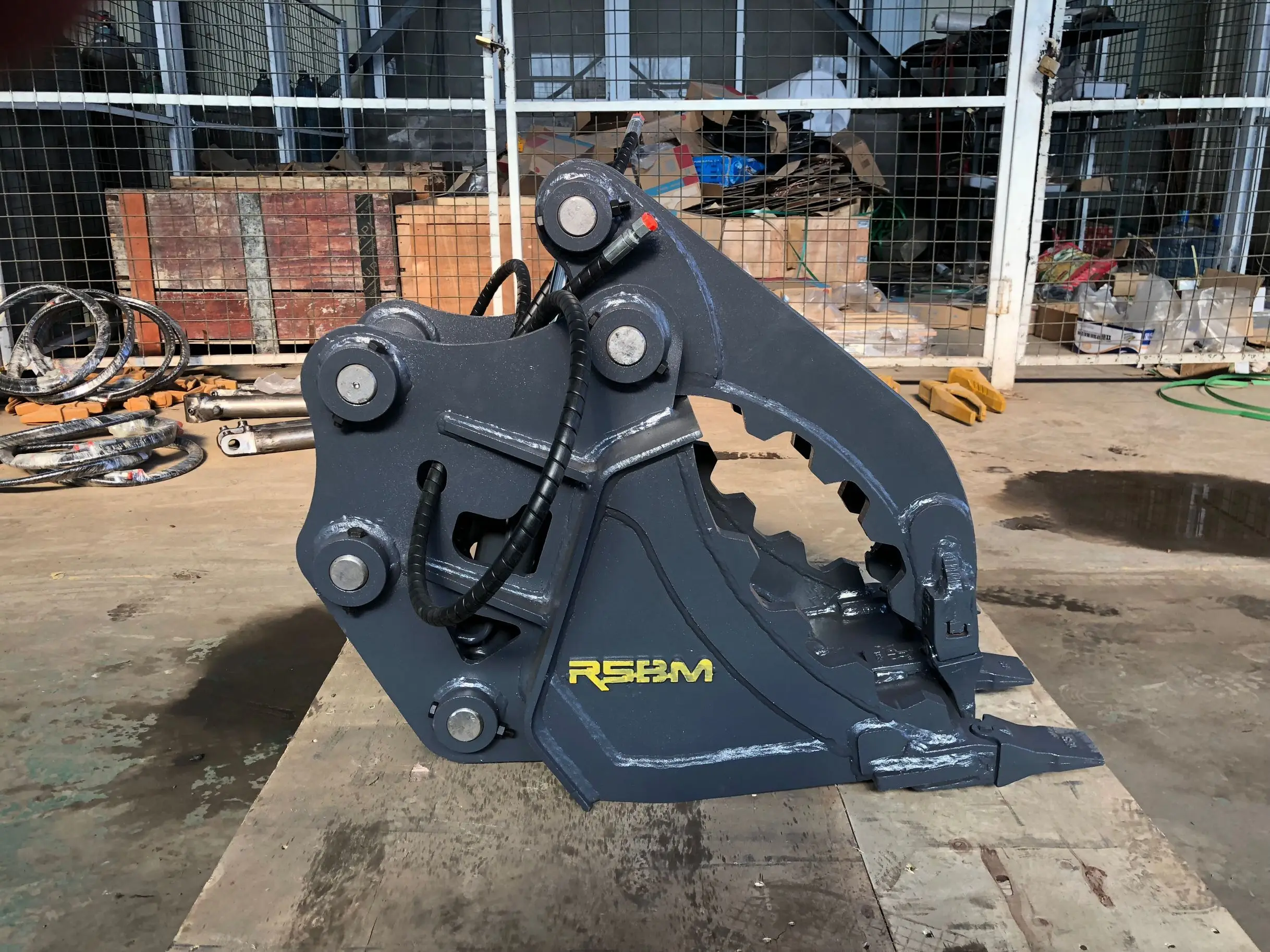

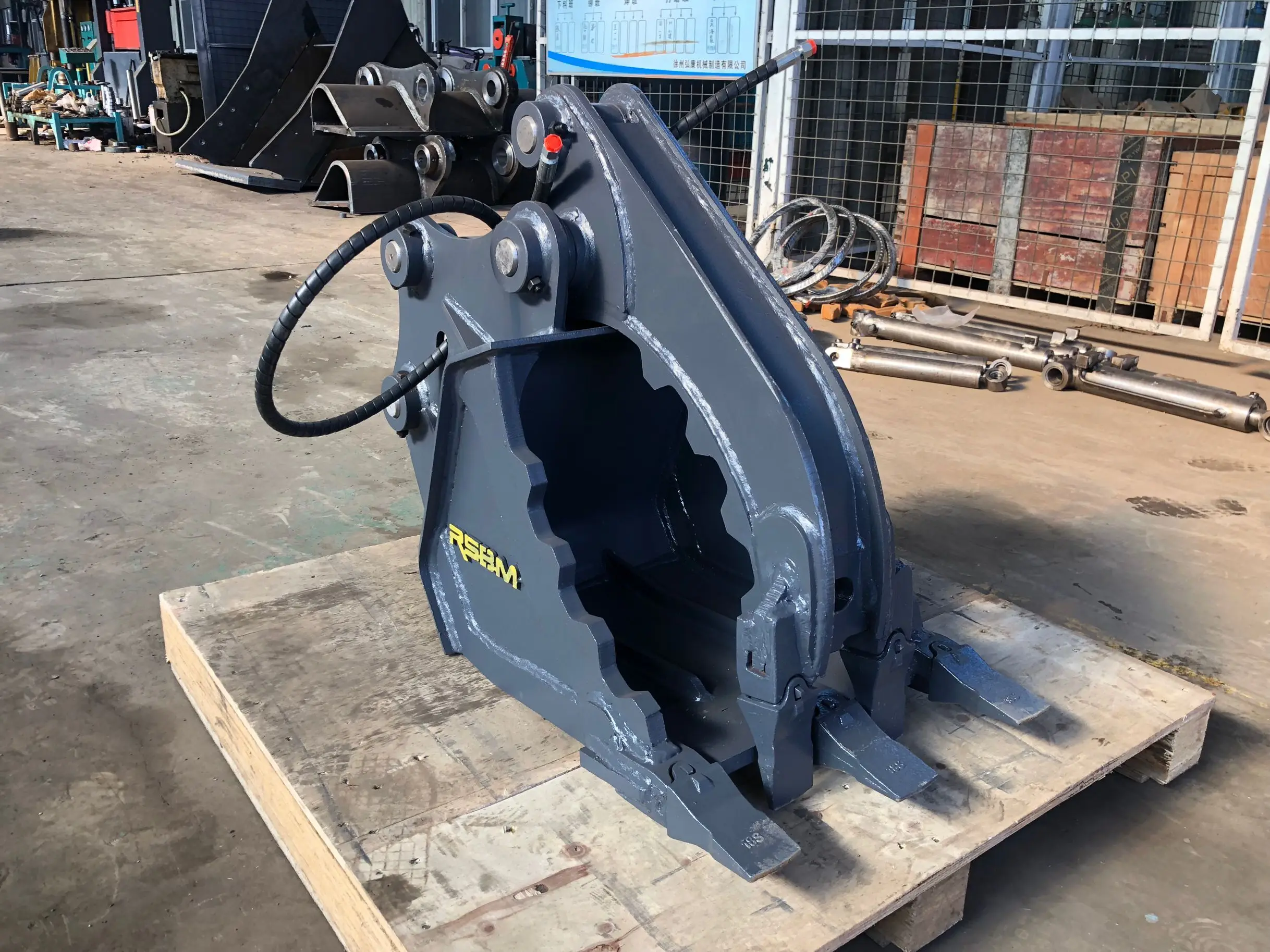

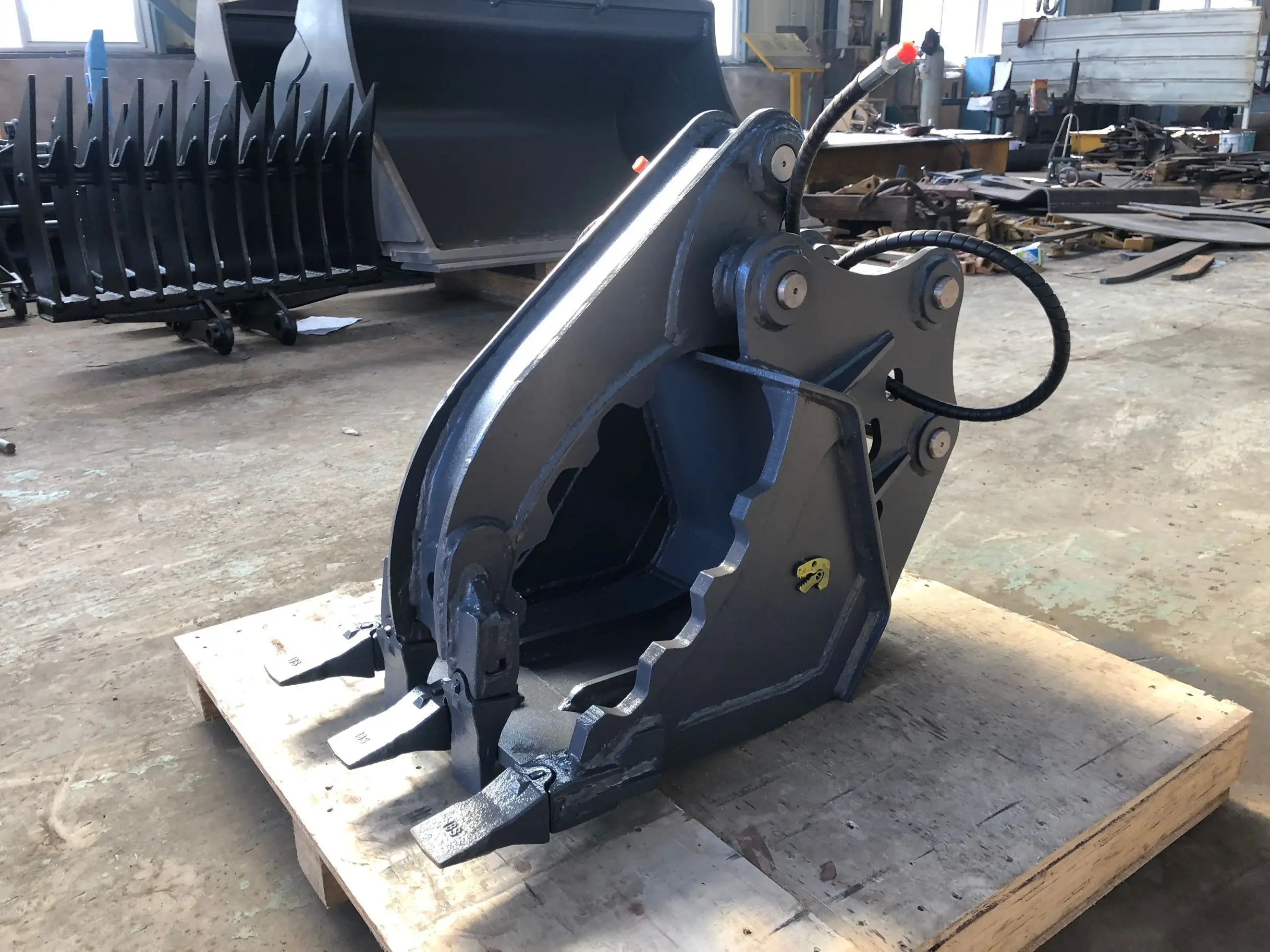

Excavator Grab Bucket
Features & Benefits: 1. Using Q345B/NM400 manganese steel, high strength and wear resistance; 2.The pin shaft adopts 42CrMo alloy steel with built-in oil passage, high strength, and good toughness; 3.The oil cylinder adopts honing pipe and oil seal, with a short working period and long service life; Optional: Quick hitch hoses Safe valve
| Hydraulic Grab Bucket | ||||||
| Model | Size | Diameter of Bucket Pins(mm) | Width(mm) | Opening Size(mm) | Work Pressure(Mpa) | Flow(l/min) |
| RSHGB- MINI | <2T | <35 | 270 | 670 | 10–13 | 25–40 |
| RSHGB- 03-300 | 3-4T | 40 | 305 | 750 | 11–14 | 30–55 |
| RSHGB- 05-450 | 5-6T | 45 | 458 | 1200 | 11–14 | 30–55 |
| RSHGB- 08-600 | 6-9T | 55 | 600 | 1365 | 12–16 | 50–100 |
| RSHGB- 12-600 | 10-18T | 60/65/70 | 600 | 1680 | 15–17 | 90–110 |
| RSHGB- 20 | 19-26T | 80 | 800 | 1990 | 16–18 | 100–140 |
| RSHGB- 30 | 27-35T | 90/100 | 1100 | 2500 | 16–18 | 130–180 |
Products Features

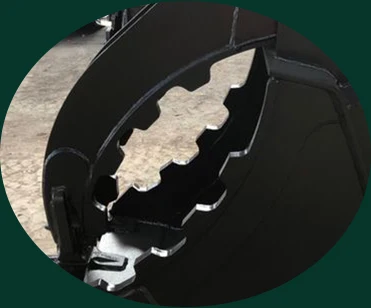

Heavy Duty leading edges use NM400, Ensure the durability of grab and ensure the capability of grabbing.

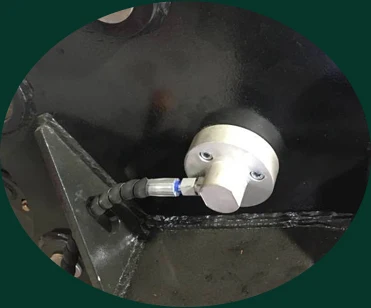

The pin shaft adopts 42CrMo alloy steel with built-in oil passage, high strength, and good toughness;
The auxiliary blade adopts (30MnB, hardness 400HD), and the spacing is 6 inches, which is convenient to find accessories everywhere. The holes matched with countersunk square neck bolts are easy to install.

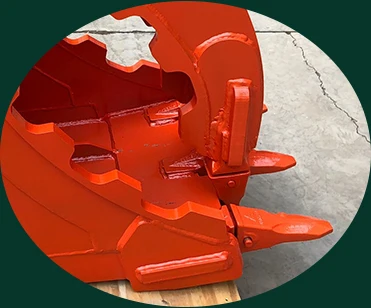

Removable teeth: Bucket teeth is easy to be damaged, our design will reduce the repair cost.
