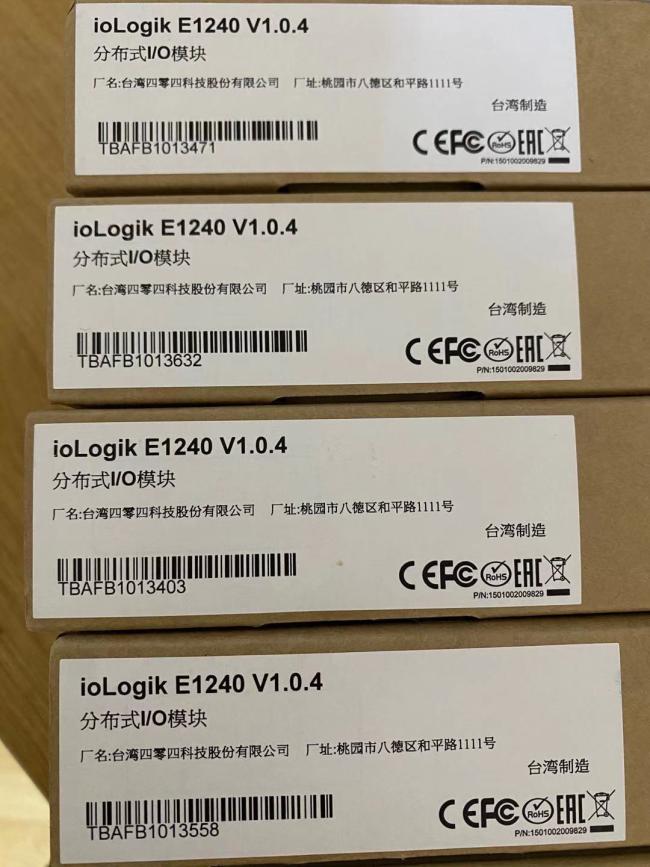

MOXA ioLogik E1240 Remote Ethernet I/O Module
MOXA ioLogik E1240 Remote Ethernet I/O Module
Product Details:
Manufacturer : MOXA
Product No. : ioLogik E1240
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Description:
|
Parameter
|
Specification
|
|
Model
|
MOXA ioLogik E1240
|
|
Series
|
MOXA ioLogik E1200 Series
|
|
Product Type
|
Remote Ethernet I/O Module with 8-Channel Analog Input
|
|
Analog Input Channels
|
8 Channels, Differential Input
|
|
Input Modes
|
0-10 VDC (Voltage), 0-20 mA, 4-20 mA (Current)
|
|
Resolution
|
16 Bits
|
|
Accuracy
|
±0.1% FSR @ 25°C; ±0.3% FSR @ -10°C/60°C; ±0.5% FSR @ -40°C/75°C
|
|
Sampling Rate
|
12 Samples/sec (all channels); 12 Samples/sec (single channel)
|
|
Isolation Protection
|
3 kV DC or 2 kV RMS
|
|
Ethernet Ports
|
2 x 10/100 Mbps RJ45, Switched
|
|
Power Supply
|
12-36 VDC (nominal 24 VDC), Power Consumption: 121 mA @ 24 VDC
|
|
Operating Temperature Range
|
Standard: -10°C to 60°C; Wide-Temp: -40°C to 75°C (non-condensing)
|
|
Storage Temperature Range
|
-40°C to 85°C (non-condensing)
|
|
Relative Humidity
|
5% ~ 95% RH (non-condensing)
|
|
MTBF
|
474,053 Hours (Telcordia SR 332 Standard)
|
|
Category
|
Details
|
|
Housing Material
|
Industrial-Grade Plastic with Protective Coating
|
|
Dimensions (W x H x D)
|
27.8 mm x 124 mm x 84 mm (1.09 x 4.88 x 3.31 inches)
|
|
Mounting Type
|
DIN-Rail Mounting, Wall Mounting
|
|
Weight
|
Under 200 g (0.44 lb)
|
|
Wiring Specifications
|
I/O Cable: 16-26 AWG; Power Cable: 12-24 AWG; Max 14 AWG
|
|
Configuration Tools
|
MOXA IO Search Utility, MXIO Library (Windows/Linux), RESTful API
|
|
Environmental Resistance
|
Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
|
|
Safety & EMC Certifications
|
CE, RoHS, CROHS, WEEE, UL 508, ATEX Zone 2, UL/CUL Class I Division 2
|
|
EMC Compliance
|
EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4 Series
|
|
Altitude
|
Up to 2000 m (contact MOXA for higher altitude requirements)
|
Brand:
MOXA was founded in 1987 and its headquarters is located in Taiwan, China. It is one of the leading manufacturers in the fields of industrial automation and communication. The company is dedicated to introducing stable and secure IT network technologies into industrial environments, and provides products such as industrial Ethernet switches, serial port device networking servers, and protocol gateways.
Company Introduction:
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
