220v Single Phase Motor Frequency Inverter 1hp 2hp 0.75kw 1.5kw
220v Single Phase Variadores 1hp 2hp Mini Variable Frequency Drive 0.75kw 1.5kw VFD
ZONCN NZ100 Series Mini variable frequency drive
Product description
- Mini size and low cost design;
- Terminals uncovered, easy for wiring;
- DIN-rail mounting (below 5.5kW);
- Supports MODBUS via RS485;
- V/F control;
- Built-in PID control;
- Power rating: 220v single phase 0.4kw-3.7kw(0.5hp-5hp); 380v 3 phase 0.4kw-5.5kw (0.5hp-7hp)
Specification
| Model | Input Voltage | Output Power (KW) | Input Current (A) | Output Current (A) | Motor Equipped (KW) |
| NZ100-0R4G-2 | 1PH AC220V+/-15% | 0.4 | 5.4 | 2.5 | 0.4 |
| NZ100-0R75G-2 | 0.75 | 8.2 | 5 | 0.75 | |
| NZ100-1R5G-2 | 1.5 | 14 | 7 | 1.5 | |
| NZ100-2R2G-2 | 2.2 | 23 | 11 | 2.2 | |
| NZ100-0R75G-4 | 3PH AC380V+/-15% | 0.75 | 3.4 | 2.7 | 0.75 |
| NZ100-1R5G-4 | 1.5 | 5.0 | 4.0 | 1.5 | |
| NZ100-2R2G-4 | 2.2 | 5.8 | 5.0 | 2.2 | |
| NZ100-3R7G-4 | 3.7 | 10.7 | 8.6 | 3.7 | |
| NZ100-5R5G-4 | 5.5 | 14.6 | 12.5 | 5.5 | |
| For powers above 5.5kw, NZ200 series with vector control is recommended. | |||||

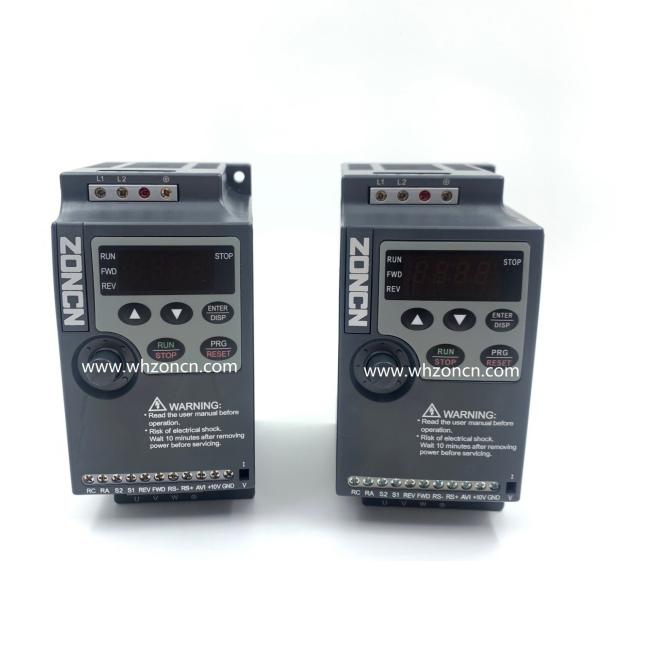

Product picture
Packing&Shipping
Company Introduction
Wuhu Zoncn Automation Equipment Co., Ltd is one of a leading manufacturer focus on producing inverter and servo products in China with 19 years of experience. We have 4 factories with headquarters in Shanghai, total factory area 100,000 ㎡+, annual production capacity is about 900,000 pcs. ZONCN has 6 mains series of VFDs: NZ100, NZ200, Z2000, Z8000, T9000, H5000 (IP65/54), etc. Our factory has passed ISO9001 quality control system and all the products have CE certification.
The voltage ranges are from 110V to 1140V; power range covers 0.4kW to 1000Kw. Our products are widely used in textile, print, CNC machine, food package, injection machine, fan, pump, air compressor, water treatment, industrial washing machine and many industrial applications.
ZONCN has more than 80 dealers in china and abroad. Now our products are exported to more than 50 countries in Asia, Europe, Africa and America. ZONCN will always dedicate in the field of electrical drive and warmly welcome you to be our partner.
ZONCN Development History
Exhibition
Recommend series
FAQ
Q1. What is your MOQ?
Q2. What is the input voltage you can do?
A: 1PH/3H AC 220V+/-15%; 3PH AC 380V/440V/480V/690V
Q3. What is the power range you can do ?
A: From 0.4 kw to 2000 kw.
Q4. What is your terms of payment?
A: T/T 100% in advance.
Q5. What is your delivery time?
A: Generally within 15 days after receiving full payment.
Q6. What is your warranty time?
A. 18 months
