Variador De Frecuencia NZ100 Frequency Inverter 380v Low Voltage 3HP
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
7-30 work days
Brand:
ZONCN
Product Description
Low Voltage Frequency Ac Drives Inverter 2.2kw 380v NZ100
NZ100 series micro vfd inverter 380V 2.2kw NZ100-2R2G-4
Basic product introduction:
- Compact size and low cost desgin
- Terminals uncovered,easy for wiring design
- DIN-rail mounting(below 5.5kw)
- Modbus via RS485
- Maintenance-free function
- Support MODBUS ASCII communication

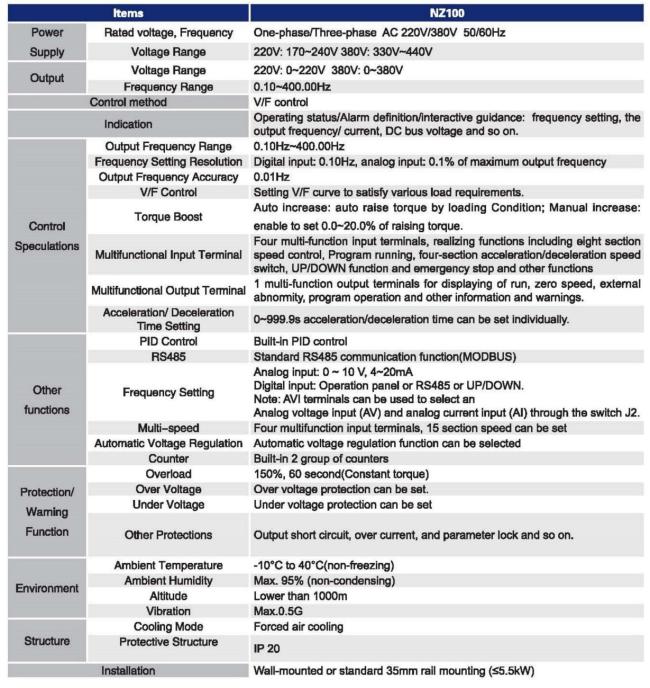

Technical Specific:
Product model details:
| Model | Rated output power (kW) | Rated input current (A) | Rated output current (A) | Motor Power (kW) |
| Input voltage(v):1PH AC 220V±15% | ||||
| NZ100-0R4G-2 | 0.4 | 5.4 | 2.5 | 0.4 |
| NZ100-0R75G-2 | 0.75 | 8.2 | 5 | 0.75 |
| NZ100-1R5G-2 | 1.5 | 14 | 7 | 1.5 |
| NZ100-2R2G-2 | 2.2 | 23 | 11 | 2.2 |
| Input voltage(v):3PH AC 380V±15% | ||||
| NZ100-0R75G-4 | 0.75 | 3.4 | 2.7 | 0.75 |
| NZ100-1R5G-4 | 1.5 | 5 | 4 | 1.5 |
| NZ100-2R2G-4 | 2.2 | 5.8 | 5 | 2.2 |
| NZ100-3R7G/5R5P-4 | 3.7 | 10.7 | 8.6 | 3.7 |
| NZ100-5R5G/7R5P-4 | 5.5 | 14.6 | 12.5 | 5.5 |
| NZ100-7R5G/11P-4 | 7.5 | 20 | 17.5 | 7.5 |
| NZ100-11G/15P-4 | 11 | 26 | 24 | 11 |
| NZ100-15G/18.5P-4 | 15 | 35 | 33 | 15 |
NZ100 nameplate:
NZ100 dimension:

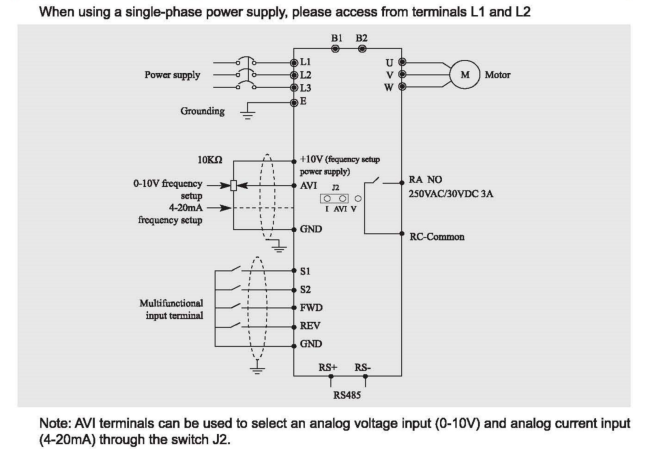

NZ100 wiring diagram:
FAQ:
Q1:What is your MOQ?
A: 1 pc
Q2:What's your terms of payment?
A:T/T 100% before delivery.
Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.
Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
