4 Wheel Drive Road Vibratory Roller YZ12HD 82KW 12T With WEICHAI Diesel Engine

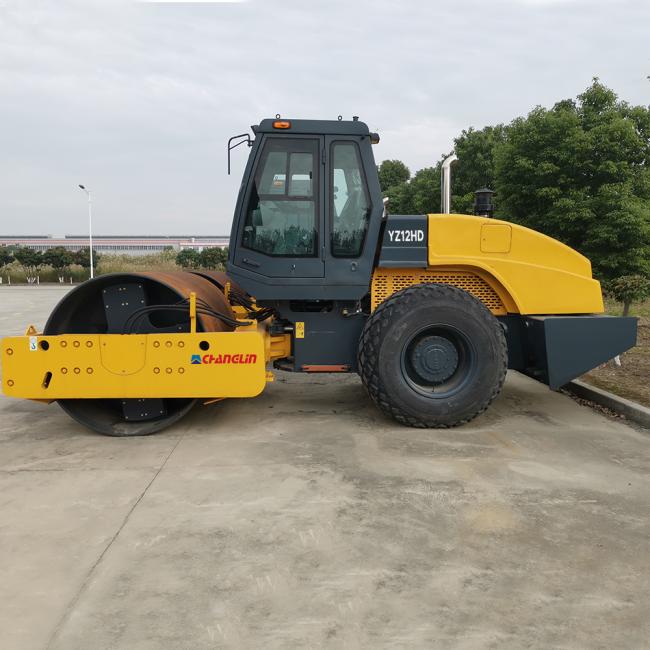

YZ12HD Vibrating Road ROLLER
YZ12HD road roller is intended for compaction work on large-scale engineering foundations, such as those for building roads, dams, railroads, and airports. This construction machine is suited for compacting non-stick and semi-stick materials like sand, gravel, rock fill, etc.
| Engine model | WP4G110E221 |
| Rated power | 82KW/2200rpm |
| Dimension(L×W×H) | 5850×2250×3080(mm) |
| Operating weight(Standard) | 12000KG |
| Wheelbase | 3000mm |
| Vibratory drum diameter | 1450mm |
| Compaction width |
2100mm |
| Tire size | 20.5-25-16PR |
| Static line pressure |
317N/cm |
| Min. ground clearance | 420mm |
| Vibratory frequency |
30Hz |
| Centrifugal force | 420KN |
| Gradeability | 30% |
| Min. turning radius | 6200mm |
FEATURES
Hydraulic front and rear wheel drive, multi-speed stepless speed change, strong theoretical climbing ability;
Hydraulic vibration, electronically controlled delay start-up, large centrifugal force, good compaction performance;
Hydraulic steering, articulated frame, light and flexible steering, light and flexible operation
The drive axle dedicated to the roller is equipped with superior drive performance;
Hydraulic travel brake, electric control disc brake parking brake, with brake release device, can be towed at close range, good safety performance
The rear hood can be turned up at a large angle for easy maintenance;
The drive and vibration system are equipped with imported international famous brand hydraulic components, and the performance is reliable;

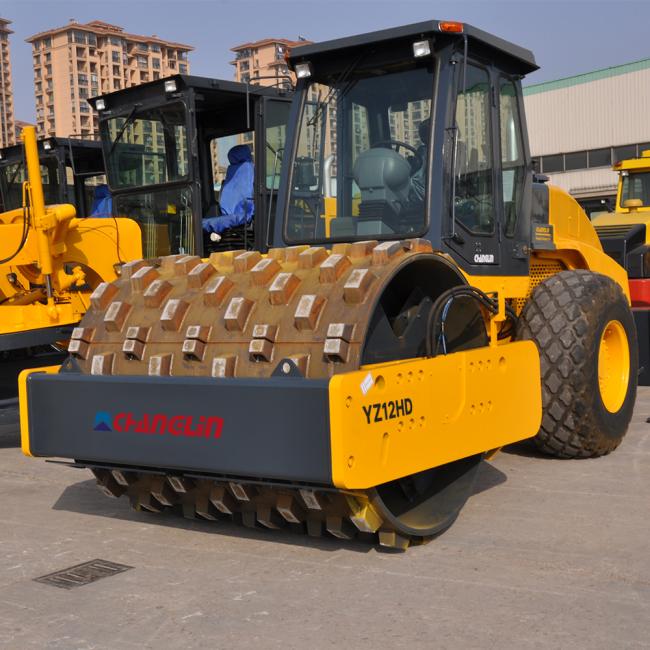

Optional different pattern tires; optional other brands of diesel engines; pad foot for option.
FAQ
1.Why Choose Us?
CHANGLIN WEA Is Committed To Offer Not Only Products With High Quality And Performance And Competitive
Price, But Also In-Time Delivery And Comprehensive 7*24 After-Sale Services.
CHANGLIN WEA is a large-scale machinery manufacturing enterprise primarily specializes in supplying excavator,wheel
loaders,palm oil tractor and related attachments. We can also customize non-standard products according to customer's
requirements.
3.What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight
with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. and also EPA approval will be available if
needed.
5. How about the delivery time?
About standard products, we always have in stock and can
deliver immediately. But customized products will take more time, depending on the requirements of the order.
