EOOE Customized Cold Draw Bench Hydraulic 4m/min - 20m/min Speed
EOOE Customized Hydraulic Cold Drawnbench
Ⅰ. Brief Introduction
EOOE Hydraulic cold drawnbench can meet the requirements of large diameter ordinary carbon steel pipe drawing. Compared with the traditional chain drawing machine, it can improve the dimensional accuracy, surface quality and performance requirements of the product.
Ⅱ. Customer Case
| Main Parameters of YLB-B-50-7.5/20 | |
| Raw Material | Aluminium alloy series 1070, 1050, 1100, 3003, 6063, 5052 |
| Raw Material OD | Φ8~Φ60 |
| Raw Material WT | 0.8~4 |
| Raw Material Locating Pad Type | Off-line head making |
| Rated Drawing Force | Rated: 500 (Max: 600) |
| Drawing Speed | 4-20m/min |
| Main Cylinder | 250/140-8000 |
| Clamp Device Type | Multi-flap self-centering jaw |
| Hydraulic Oil Tank Capacity | ≥2000 |
Ⅲ. Features
1. The machine can realize the automatic production process of on-line head making, automatic clamping and drawing of the blank of the product in the product program to the discharging of the finished product.
2. Less manual operation intervention, low labor intensity and clean environment.
3. Less mechanical damage during drawing and high surface quality of products.

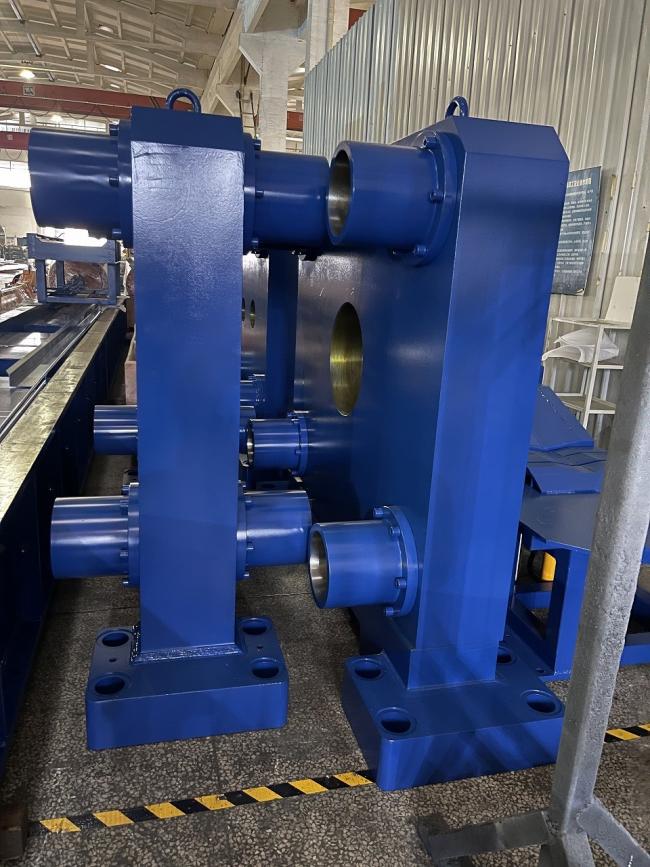

Ⅳ. Picture
