ISUZU 6BG1-QC02 Engine 10T Diesel Forklift Truck Heavy Duty Forklift
ISUZU 6BG1-QC02 Engine 10T Diesel Forklift Truck Heavy Duty Forklift
PRODUCT DETAILS:
1.Reliable structure design, through finite element analysis, kinematics, dynamics simulation calculation and harsh fatigue, vibration and other tests, to ensure that the structure of the whole forklift is reliable and durable;
2.The gearbox adopts a variety of control programs integrated into an integrated control component, which can easily realize various control operations, and has a fault diagnosis instrument, which greatly simplifies maintenance and maintenance;
3.The gantry is sturdy and durable, and has a good vision;the fork adopts a rolling structure to reduce the resistance of the cargo side shifting distance adjustment.
Product parameter:
| Model | FD100 | |||
| Power Type | Diesel | |||
| Rated Capacity | kg | 10000 | ||
| Load Centre | mm | 600 | ||
| Lift Height | mm | 3000 | ||
| Mast Tilt Angle | F/R | Deg | 6°/12° | |
| Front Overhang (Wheel center to fork face) | mm | 739 | ||
| Ground Clearance(Bottom of mast) | mm | 230 | ||
| Length to face of fork(Without fork) | mm | 4280 | ||
| Overall Width | mm | 2170 | ||
| Mast Lowered Height | mm | 2830 | ||
| Turning Radius (outside) | mm | 3970 | ||
| Speed Travel (Full load) | km/h | 30 | ||
| Tire | Front | mm | 9.00-20-14PR | |
| Rear | mm | 9.00-20-14PR | ||
| Wheelbase | mm | 2800 | ||
| Battery Voltage/Capacity | V/Ah | (12/80) x 2 | ||
| Engine | Model | 6BG1-QC02 | ||
| Manufacture | ISUZU | |||
| Rated output/r.p.m. | kw | 82.4/2000 | ||
| Rated torque/r.p.m. | N·m | 416/1600 | ||
| No.of Cylinder | 6 | |||
| Bore×Stroke | mm | 105×125 | ||
| Displacement | cc | 6494 | ||
| Fuel Tank Capacity | L | 135 | ||
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.

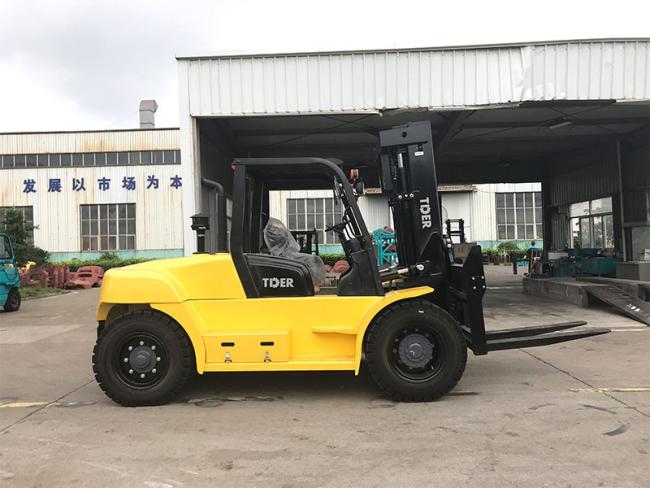

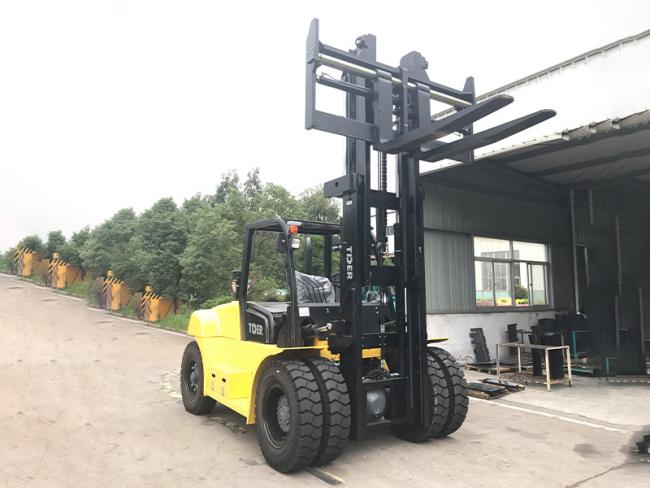

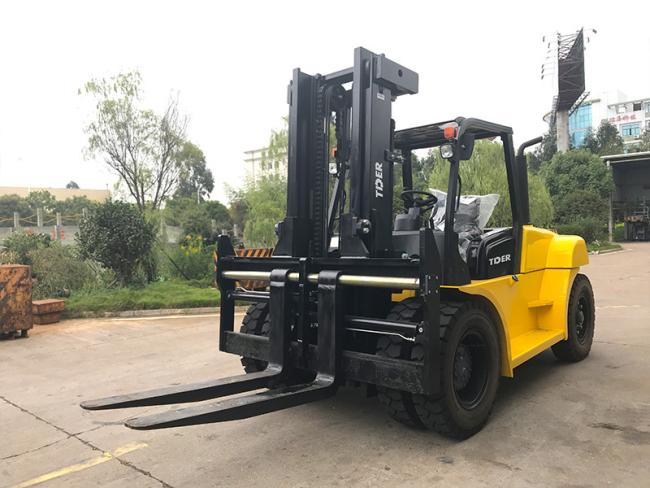

Picture Display:
Q1: Are you a factory
A1: Of course.
Q2.Do you have certificate?
A2:Our company has achieved ISO9001, CE certification.
Q3: How about the delivery time?
A3: Our production period is normally 10-20 days after receiving advance payment. For some standard model, we can delivery
immediately if we have goods in stock.
Q4: Can we print the LOGO on products?
A4: Yes, OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T or L/C, if you want other payment terms, please contact us.
