Earth Auger 0510 Series For All Brand Skid Steer Loader , Excavator And Loader , Earth Drill

Price Negotiable
Price: Negotiate
MOQ: 20UNITS
Delivery Time: 20-22DAYS
Brand: ABC
Product Description

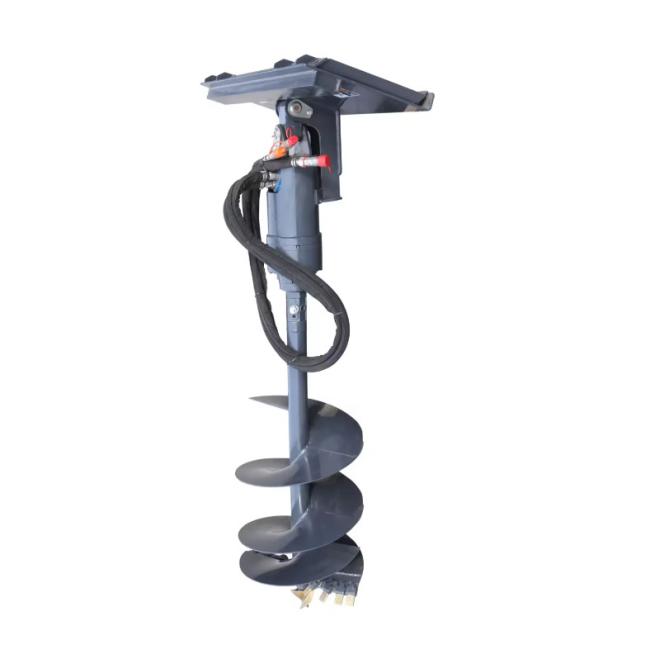

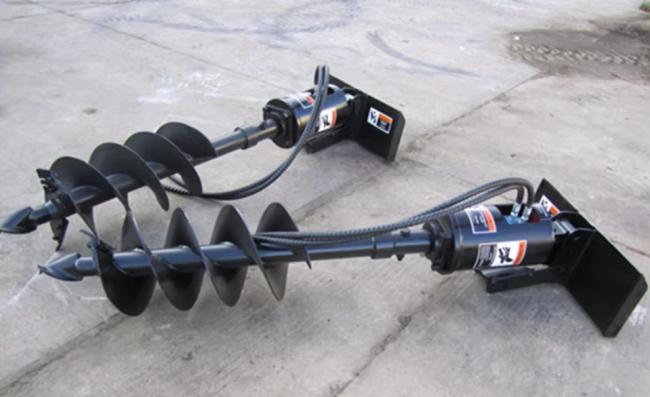

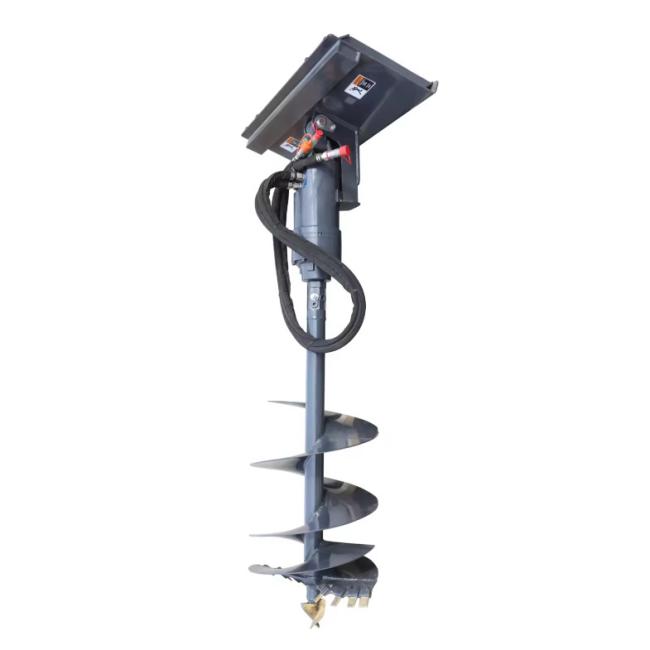

Earth Auger 0510 Series For All Brand Skid Steer Loader, Excavator And Loader, Earth Drill


Production description:

A heavy-duty equipment at an exceptional price, the ABC auger has one year warranty. With an innovative elaborate design with fewer internal components that are completely sealed, the ABC auger is ready to tackle any job. The compact housing design and hoses routed out the top allows deeper digging in tight locations, and it can gain faster drilling speeds from higher capacity hydraulics to get through rock-hard materials (by using rock auger head).




SPECIFICATIONS
Drive Unit Tech-Specs
Model
0510 25
0510 45
0510 75
0510 100
0510 200
Overall length (mm)
(without drill bit)
242
307
317
321
400
Overall width (mm)
(without drill bit)
184
240
237
245
312
Overall height (mm)
1847
1926
2043
2149
2556
Weight (kg)
148
187
249
297
498
Hydraulic flow (L/min)
23-61
23-76
45-151
45-151
45-151
Working pressure (MPa)
17.0
15.5
18.5
17.0
18.5
Aperture of drill hole (mm)
50-300
100-400
100-500
100-700
100-1000
Rotation Speed
42-152
20-73
31-107
20-72
11-37
Max. depth of hole drilling (m)
1.6
2.1
2.4
3.0
5.3
Hexagon output shaft size (inch)
2
2
2
2.5
2.6
Length of drill bit (m)
1.22
1.22
1.22
1.50
1.50
Regular Drill Bit (Code:SD)(For soil)
Model
SD02
SD04
SD06
SD08
SD09
SD10
SD12
SD14
Diameter of outside helix (mm)
50
100
150
200
223
250
300
350
Model
SD16
SD20
SD24
SD28
SD32
SD36
SD40
/
Diameter of outside helix (mm)
400
500
600
700
800
900
1000
/

Note: Parameter of drill bit depends on specific auger bit


Extended Dill Pipe
Model
L-300
L-500
L-600
L-1000
L-1200
Length (mm)
300
500
600
1000
1200
Weight (Kg)
14
16
18
23
25
