JGX-0240 Series Wire Rope Vibration Isolator For Mobile Electronic Devices JGX-0240D-6.3A
JGX-0240 Series
Wire rope isolators are comprised of stainless steel stranded cable threaded through stainless steel or aluminum retaining bars that are mounted for effective shock and vibration isolation.
JGX-0240D-6.3A is the new designed 10 loops 2.4mm diameter helical isolators with max static load of 6.3kg, especially used in the precise instruments for the noise attenuation. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.
Nowadays, the JGX-0240 series isolators are used widely in the field of vehicles, armored cars, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

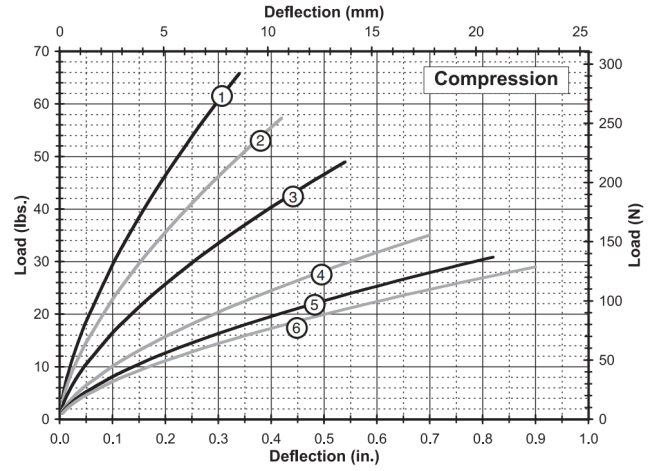

| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Kn/m) |
Ks(shock) (Knm) |
| 1 | JGX-0240D-8.6A | 8.6 | 8.6 | 65 | 40 |
| 2 | JGX-0240D-7.7A | 7.7 | 10.7 | 51 | 30 |
| 3 | JGX-0240D-6.3A | 6.3 | 13.7 | 37 | 19 |
| 4 | JGX-0240D-4.5A | 4.5 | 17.8 | 23 | 11 |
| 5 | JGX-0240D-4A | 4.0 | 20.8 | 18 | 7.9 |
| 6 | JGX-0240D-3.6 | 3.6 | 22.9 | 16 | 7.0 |

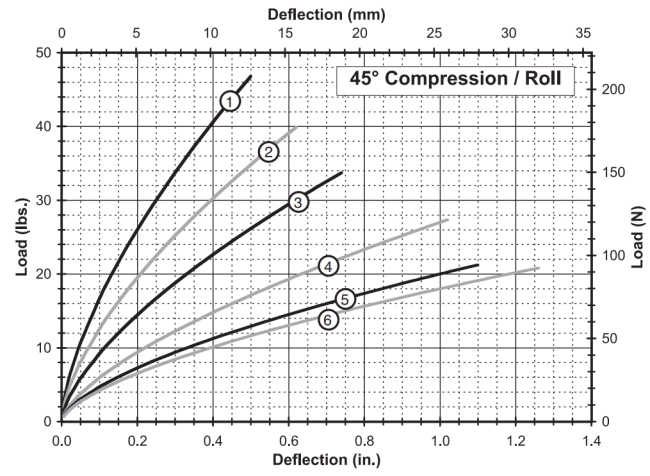

| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Kn/m) |
Ks(shock) (Knm) |
| 1 | JGX-0240D-8.6A | 6.3 | 12.7 | 38 | 20 |
| 2 | JGX-0240D-7.7A | 5.4 | 15.7 | 28 | 14 |
| 3 | JGX-0240D-6.3A | 4.5 | 18.8 | 21 | 9.6 |
| 4 | JGX-0240D-4.5A | 3.7 | 25.9 | 13 | 5.6 |
| 5 | JGX-0240D-4A | 3.2 | 27.9 | 11 | 4.4 |
| 6 | JGX-0240D-3.6 | 2.8 | 32.0 | 9.6 | 3.5 |

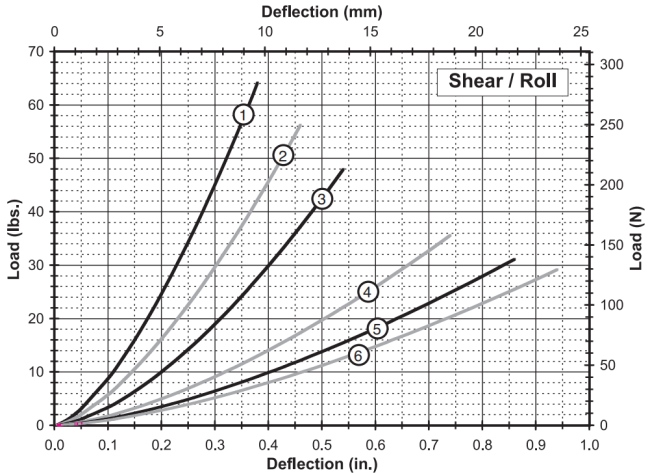

| No. | Model |
Max Static Load (kg) |
Max Deflection (mm) |
Kv(vibration) (Kn/m) |
Ks(shock) (Knm) |
| 1 | JGX-0240D-8.6A | 4.5 | 9.7 | 24 | 24 |
| 2 | JGX-0240D-7.7A | 4.1 | 11.7 | 18 | 18 |
| 3 | JGX-0240D-6.3A | 3.2 | 13.7 | 12 | 12 |
| 4 | JGX-0240D-4.5A | 2.8 | 18.8 | 7.0 | 7.0 |
| 5 | JGX-0240D-4A | 2.2 | 21.8 | 5.3 | 5.3 |
| 6 | JGX-0240D-3.6 | 1.8 | 23.9 | 4.4 | 4.4 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
