China Eltek Converter Dc To Dc 1350W 18-75 48V 241115.602 for sale

Eltek Converter Dc To Dc 1350W 18-75 48V 241115.602

Price Negotiable

Price: 290USD

MOQ: 1

Delivery Time: 1 week

Brand: Eltek

Product Description

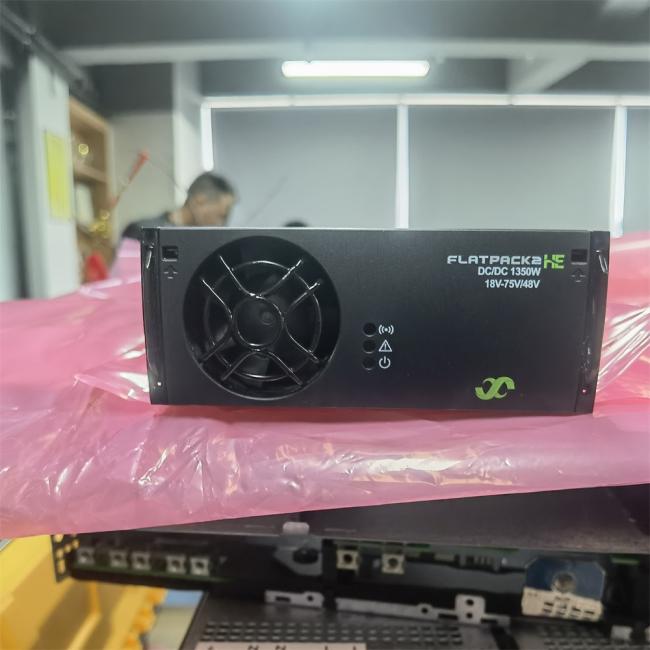

Eltek Converter dc to dc 1350W 18-75 48V 241115.602

Wide input DC/DC converters

The Flatpack2 DC/DC converters add new flexibility to the Flatpack2 power systems. Secondary 24VDC or 48VDC outputs can be provided from the main voltage battery. Application requiring galvanic isolation between the loads can now also be addressed.
The galvanic isolated CAN bus can be connected to a supplying Eltek power system’s control system allowing monitor and control of the DC/DC converters without adding a separate controller

FLATPACK2 DC/DC 1350W 18-75V/24V & 18-75V/48V
Model	1350W 18-75/24V	1350W 18-75/48V
Part number	241115.600	241115.602
INPUT DATA
Voltage range	20 - 75 VDC (shutdown < 16.5VDC)
Current (maximum)	70 ADC (85 ADC during boost)
Protection	Fuse and reversed polarity protection
OUTPUT DATA
Voltage (default)	26 VDC	53 VDC
Voltage (adjustable range)	24 - 28 VDC	48 - 58.5 VDC
Power (maximum) @ VIN > 26 VDC / VIN = 18 VDC Power boost 15s / 10min recovery (VIN > 25VDC)	1350 W / 910 W 2000W
Current (maximum) Current boost 15s / 10min recovery (VIN > 25VDC)	56 A 84 A	28 A 42 A
Static Voltage regulation (0 - 100% load)	±1%	±0.5%
Dynamic Voltage regulation	±5.0% for 10-90% or 90-10% load variation, regulation time < 30ms
Ripple, 20MHz bandwidth	< 200 mVpp
Protection	Short circuit proof , OR-ing diode, High temperature protection, Hot plug-in inrush current limiting, Over voltage Shutdown
OTHER SPECIFICATIONS
Efficiency	Up to 91.7 %	Up to 93.8 %
Isolation	1.2 kVDC - input to chassis 1.9 kVDC - input to output 1.0 kVDC - output to chassis	1.9 kVDC - CAN to chassis 1.9 kVDC - CAN to input 1.9 kVDC - CAN to output
Alarms: Red LED 'on	Low and high input voltage shutdown, High and low temperature shutdown, Converter Failure, Overvoltage shutdown on output, Fan failure, Low output voltage alarm
Warnings: Yellow LED 'on	Converter in power de-rate mode, Remote output current limit activated, Input voltage out of range, flashing at overvoltage, Loss of CAN communication with controller
Normal (module running): Green LED 'on'
MTBF (Telcordia SR-332 Issue I method III (a))	>315 000 (@ Tambient : 25 °C)	>315 000 (@ Tambient : 25 °C)
Operating temperature	-40 to +75°C (-40 to +185°F), humidity 5 - 95% RH non-condensing
Temperature de-rating above 55°C (131°F)	1350W to 1250W @ 65°C (149°F) and 800W @ 75°C (167°F)
Storage temperature	-40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing
Dimensions[WxHxD] / Weight	109 x 41.5 x 327mm (4.25 x 1.69 x 13”) / < 1.95 kg (4.3 lbs)
DESIGN STANDARDS
Electrical safety	UL 60950-1, EN 60950-1
EMC	EN 61000-6-1 / -2 / -3 / -4 ETSI EN 300 386 V.1.4.1
Environment	ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2) RoHS (2011/65/EU) and WEEE (2002/96/EC) compliant
