C240 ISUZU Diesel Engine Forklift 3000kg 3 Ton Diesel Forklift
3000kg/3.0 Ton Diesel , ISUZU Engine With Options for Mast-A-SF30
FEATURES
① STABLE POWER SYSTEM
Equipped with mature, reliable and powerful IZUSU diesel engine, which is powerful, energy-saving and environmentally friendly.
The gearbox, drive axle and steering axle are all made from well-known domestic and international manufacturers, with stable and reliable performance.
② HIGH-STRENGTH LOAD-BEARING STRUCTURAL PARTS
The mast is welded from high-quality high-strength rolled steel and is equipped with split large rollers, which has strong load-bearing capacity and long service life; the frame, the load-bearing components such as the cab and counterweight have all completed finite element analysis of stress and fatigue.
The structure is reasonable and the quality is stable.
③ HIGH QUALITY ELECTRO-HYDRAULIC SYSTEM
High-quality hydraulic components produced by well-known domestic and foreign manufacturers, with reliable performance. It has the characteristics of long service life and low oil leakage rate; rational arrangement of soft and hard pipes ensures small pipeline pressure loss and high overall machine working efficiency.
It adopts intelligent electronic monitoring combination instrument with high reliability, and the electrical system adopts waterproof sealed plug-in structure, which is safe and reliable.
Combination lamps with high reliability and high sealing level provide more concentrated and clear brightness and longer lifespan.
④ EFFICIENT COOLING SYSTEM
The new structure large-capacity water tank, the heat dissipation channel improved by using advanced heat dissipation technology and the reasonably designed air guide cover ensure the whole machine has good heat dissipation performance, easy maintenance and long service life.
Equipped with mature, reliable and powerful IZUSU diesel engine, which is powerful, energy-saving and environmentally friendly.
The gearbox, drive axle and steering axle are all made from well-known domestic and international manufacturers, with stable and reliable performance.
⑤ COMFORTABLE OPERATING SPACE
The entire vehicle adopts advanced ergonomic design and is equipped with multi-level shock absorption to provide a comfortable operating environment; it is equipped with a fully hydraulic system with low input torque.
Steering gear, easy steering; integrated iron hood, good heat and sound insulation.
Luxury Seat & Belt Easy to open the engine hood Self made first class torque converter

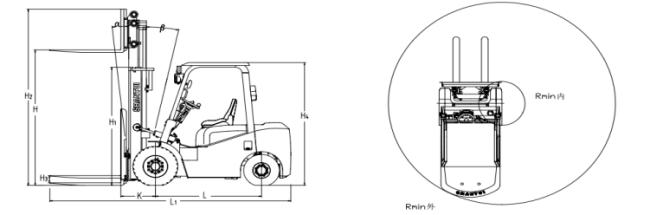

OVERALL

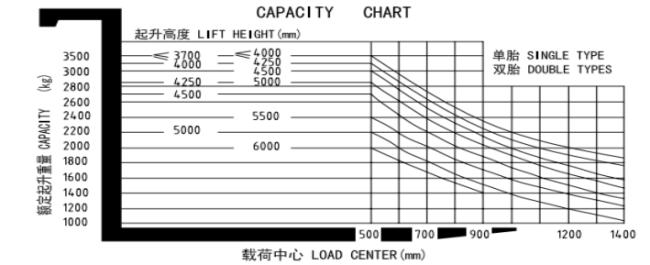

CAPACITY CHART
SPECIFICATIONS
| General | Model | A-SF30 | |||
| Load capacity | 3000 | kg | |||
| Load center | 500 | m m | |||
| Power type | Diesel | ||||
| Dimensions | Lit height H | 3000 | m m | ||
| Free liftheight H3 | 100 | m m | |||
| Fork size | 1070×125×45 1220×125×45 |
m m | |||
| Masttit angle a/β | 6/12 | deg | |||
| Fort overhang K | 95 | m m | |||
| Overall dimensions | Length to face of fork L1 | 3820 | m m | ||
| Overall width | 1225 | m m | |||
| Overall height fork lowered H1 | 2060 | m m | |||
| Overall height fork raised H2 | 4265 | m m | |||
| Overall guard height H4 | 2165 | m m | |||
| Turning radius | 2400 | m m | |||
| Performance | Travel speed (Full/No oad) |
Hydraulic | 19/20 | km/h | |
| Mechanical | l | 8.8/8.8 | km/h | ||
| ll | 20/20 | km/h | |||
| Lift speed with speed | 470 | mm/sec | |||
| Max.gradeability | 20 | % | |||
| Self weight | 4350 | kg | |||
| Wheel&tires | Tires |
Front | 28×9-15-12PR | ||
| Rear | 6.50-10PR | ||||
| Tread | Front | 1000 | m m | ||
| Rear | 970 | m m | |||
| Wheelbase | 1700 | m m | |||
| Ground clearance Full/No load) |
Mast | 110/135 | m m | ||
| Frame | 130/135 | m m | |||
| Drive units &control |
Engine | Model | ISUZU C240PKJ | ||
| Rated output | 34.5/2500 | km/rpm | |||
| Rated torque | 139/1800 | N.m/rpm | |||
| No.of cylinder | 4 | ||||
| Borexstroke | 92×100 | m m | |||
| Displacement | 2.67 | L | |||
