AFC Grease Sany Concrete Pump Parts Eaton Counterbalance Valve
Product description
Grease pump equipped with mobile trailer, easy to move, can be multiple grease pump grease;
The grease barrel is placed directly in the pump barrel after opening the lid, which is dustproof, waterproof and easy to use;
The maximum pressure of grease filling is controlled by hand pressure
Suitable for thin oil filling or NLGI 2~000 grease filling
Standard oil outlet filter (ZGQ series) and quick insert connector

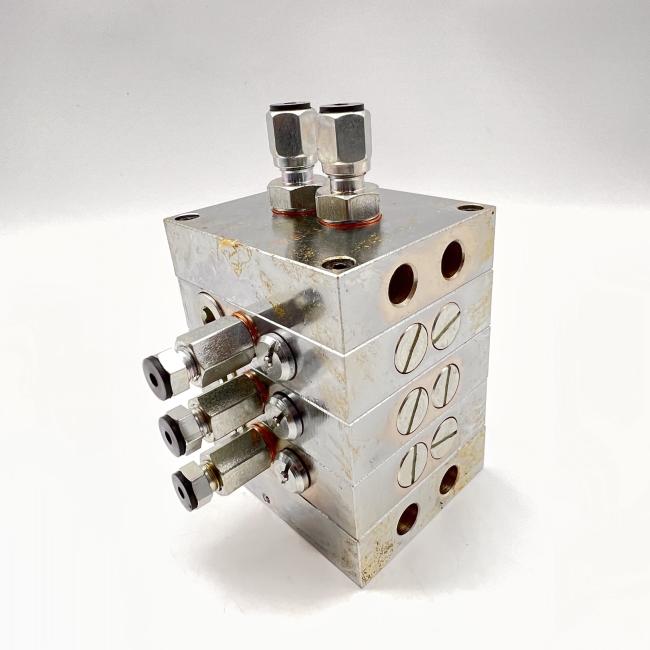

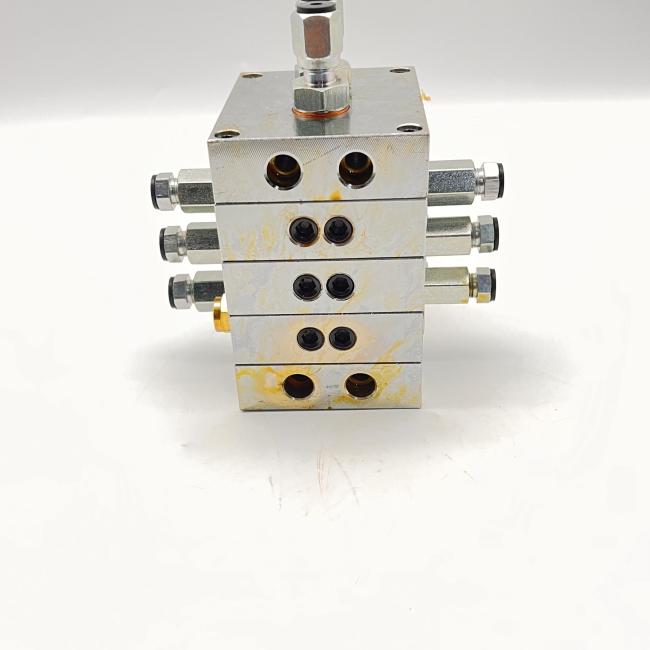

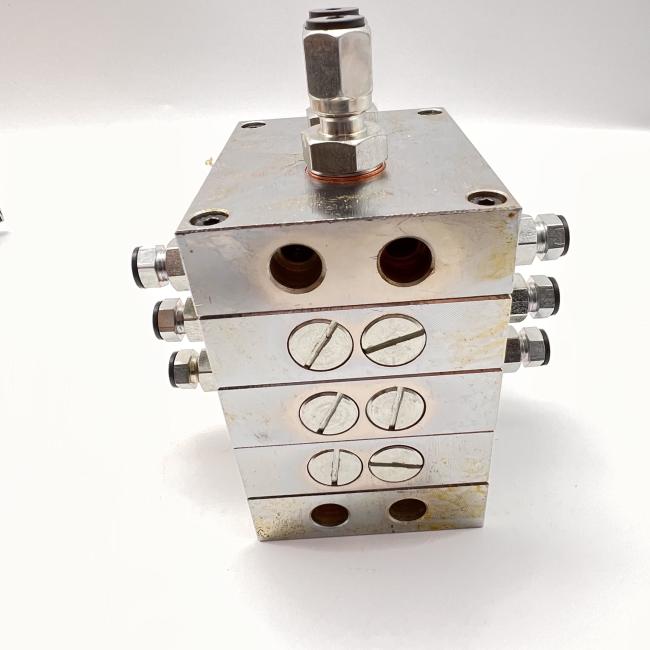

| RZ two-wire distributor (Lubrication center) |
| Double line structure principle |
| Suitable for oil and fat media |
| Synchronous oil supply function with drive oil supply frequency |
| The driving hydraulic source can be a lubrication pump or a customer equipment hydraulic source |
| Model example |
| 4RZ-0.3/M6D: |
| RZ series two-wire distributor (lubrication center); 4 oil outlets; The displacement of each mouth is 0.3ml/ cycle. Oil feed thread MI4x1.5; The oil outlet is connected to the single valve connector of the 6mm outer diameter pipe |
| Technical parameter |
| Model: RZ |
| Capacity per hole (ml/Cy) : 0.08; 0.15; 0.20; 0.25; 0.30; 0.35 |
| Nominal pressure (MPa) : 31.5 |
| Starting pressure (MPa) : ≤1.5 |
| Drive port thread: M14x 1.5 G1/4 |
| Oil outlet nozzle (mm) : ¢6¢8 |
The company specializes in the production of all kinds of high, medium, low pressure dry, thin oil lubrication equipment, hydraulic components, fluid connectors, support to map customization, large volume support logo customization, welcome overseas customers to come to buy, excellent price, good quality.
Наша компания работает над одноэтажным сервисом аксессуаров, обеспечивающим идеальное сотрудничество и превосходную производительность. Это облегчает поиск деталей, подходящих для вашего насоса, экономит ваше время и энергию.
