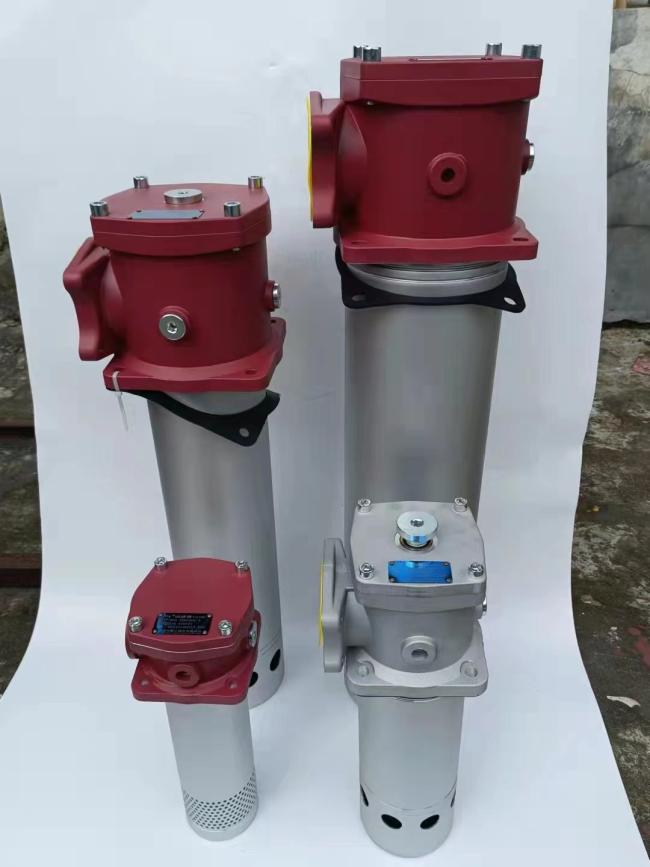

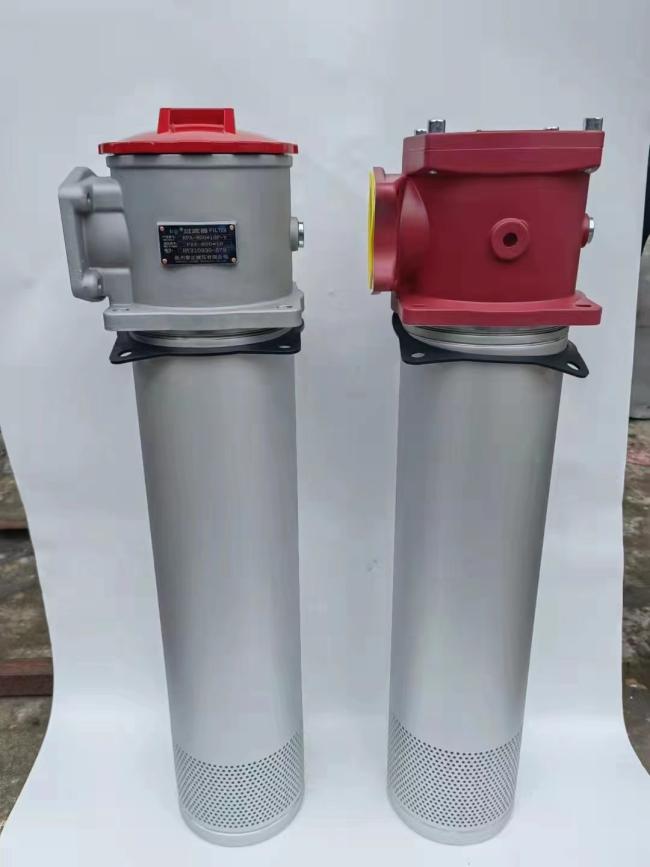

UT319 TF Tank Mounted Suction Filter Concrete Pump Spare Parts
ptoduct description
No inner core, no outer cover filter structure
Flow from the inside out
Specification and description
| Maximum working pressure: | 350bar (5075 psi) |
| Rated fatigue pressure: | 0-300 bar(4350 psi) |
| Burst pressure: | 1050 bar(15.225 psi) |
| Temperature range: | Fluoro rubber seal: -29 ° C (-20°F) Up to 120 ° C (250°F) |
| Interface size: | 3/4",1" |
Bypass valve setting
| Bypass valve pressure setting: | 4.5 bard (65 psid) |
| Indicator pressure setting: | 3.5 bard (50 psid) |
| Filter crushing pressure: | 10 bard(150 psid) |
| Structural materials: | Filter head and cover: ductile iron |
| Filter element structure: | Filter cartridge: carbon steel Impregnated with epoxy resin,Bonded inorganic fiber material. |
Filter pressure difference
The actual flow rate is multiplied by the coefficient to obtain the differential pressure of the filter element when filtering a fluid with a viscosity of 32cSt(150 Sus) and a specific gravity of 0.9.
When using other fluids, the actual pressure difference of the filter element can be obtained by using the viscosity of the fluid cSt/32(150 SUS)x its specific gravity /0.9.
The company specializes in the production of all kinds of high, medium, low pressure dry, thin oil lubrication equipment, hydraulic components, fluid connectors, support to map customization, large volume support logo customization, welcome overseas customers to come to buy, excellent price, good quality.
Наша компания работает над одноэтажным сервисом аксессуаров, обеспечивающим идеальное сотрудничество и превосходную производительность. Это облегчает поиск деталей, подходящих для вашего насоса, экономит ваше время и энергию.
