4714 Truck Zoomlion Concrete Pump Parts Coreless Filter
product description
4714 series "coreless" high pressure filters
Product features:
1. Efficient filtration: The pump filter adopts an efficient filter element, which can effectively remove impurities and solid particles in the liquid.
2. Strong corrosion resistance: the pump filter is usually made of corrosion-resistant materials such as stainless steel, which can adapt to the filtration needs of various liquids.
3. Compact structure: the pump filter is usually compact in design, small in size, easy to install and maintain.
4. Easy maintenance: the pump filter is easy to disassemble and clean, and the maintenance cost is low.
4714 series technical data
Maximum working pressure 450bar
Ultimate fatigue pressure 400bar
Filter element with bypass valve crushing pressure difference of 10bar,With all petroleum-based hydraulic fluids, water glycol, water in oil emulsion Compatible with most synthetic fluids and lubricants
4714 series technical specifications
| brand | LIZHENG HYDRAULIC |
| model | 4714 |
| Price | Price negotiation |
| Origin | Steel |
Filter assembly data
| Temperature range |
Nitrile rubber seal: -43℃ to +107℃ Fluorine rubber seal: -29℃ to +120℃ The maximum is 60℃ when using high water base liquid or water ethanol |
| Materials | Filter head, ductile iron castings: cup shell, carbon steel filter core body |
| Sealing parts | Nitrile or fluororubber 0 ring. |
| Pressure rating |
Maximum working pressure: 450bar Rated fatigue pressure: 400bar Pressure test pressure: 675bar Burst pressure (typical):1600bar(minimum) |
| Bypass valve setting value | Select "B":3.4±0.3bar opening pressure |
| Oil port | Import and export same: 1/4",1¹/₂"BSP,SAE split flange. |
| Set value | 4714 series: 2.4±0.3bar |

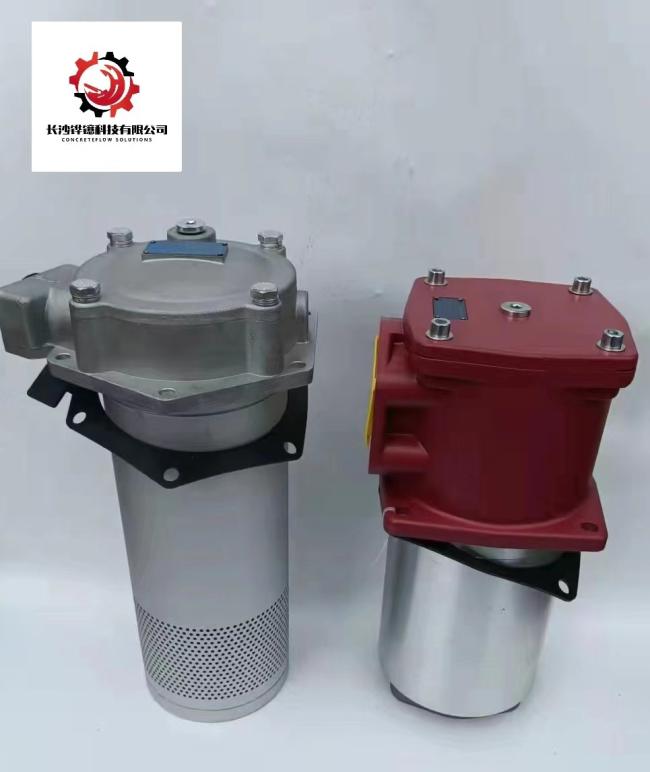

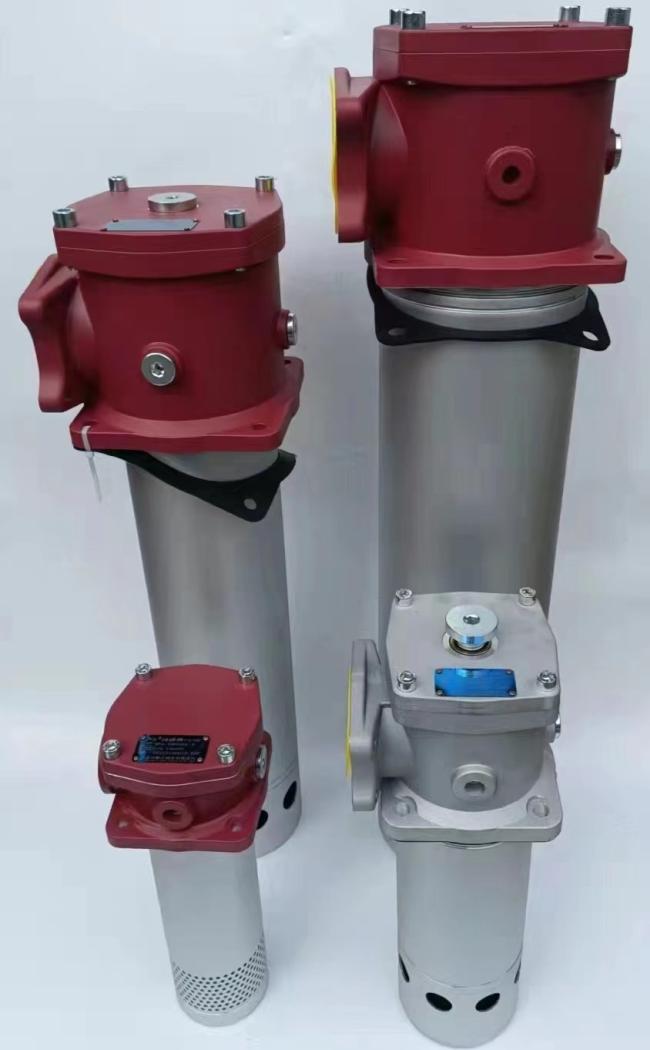

Product Picture
The company specializes in the production of all kinds of high, medium, low pressure dry, thin oil lubrication equipment, hydraulic components, fluid connectors, support to map customization, large volume support logo customization, welcome overseas customers to come to buy, excellent price, good quality.
Наша компания работает над одноэтажным сервисом аксессуаров, обеспечивающим идеальное сотрудничество и превосходную производительность. Это облегчает поиск деталей, подходящих для вашего насоса, экономит ваше время и энергию.
