Mechanical Suspension Seat Loader Tractor Seat Customized With Weight Adjustment
Mechanical Suspension Seat Loader Tractor Seat Customized With Weight
Adjustment Details
|
Product Name
|
Mechanical Suspension Seat Loader Tractor Seat Customized With Weight Adjustment
|
|
Place of Origin
|
Shaanxi China
|
|
Product Model
|
M801-69
|
|
Product Size
|
570*570*800-860mm
|
|
Product Material
|
Fabric
|
|
Product Color
|
Blue
|
|
Backrest size
|
480*530mm
|
|
Cushion size
|
480*470*290-350mm
|
|
Adjustable Backrest Elevation
|
40-170°
|
|
Horizontal adjustment
|
Front 105mm, Rear 120mm
|
| Bottom Connecting Hole Spacing | Left and right216mm *front and back 295.5mm or Custormized |
|
Weight Adjustment
|
40-130 kg
|
|
MOQ
|
1 Set
|
Mechanical Suspension Seat Loader Tractor Seat Customized With Weight
Adjustment Technology
1.Forming welding frame: Q235 cold-rolled steel sheet, 2.0mm thickness, stamping, CO2 gas shielded
welding process
2.Double spring: high strength spring steel, double spring, full of elasticity, absorb bumps and vibrations,
release comfortable rebound
3.Damper: Improve frequency response, reduce energy consumption, using special oil pressure and
sealing medium, stable performance and long service life
4.Movable composite frame: composite shaft sleeve, mechanical welded riveting design, greatly streng
-then the durability of structural parts and reduce the damping gap

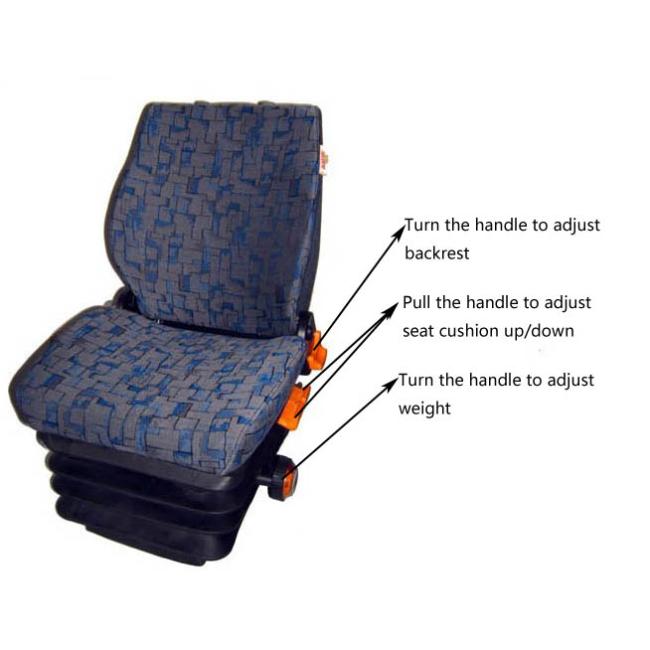

Mechanical Suspension Seat Loader Tractor Seat Customized With Weight
Adjustment Fuction
