B16.9 Stainless Steel Pipe Fittings ASTM A403 WP304L S30403 Concentric Reducer
SS Pipe Fitting ASTM A403 WP304L S30403 Concentric Reducer B16.9
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description :
ASTM A403 WP304L Fittings come under the standard ASME B16.9 and diameters ranging from ½ inches to 48 inches. The material has 18% chromium and 8% nickel in the composition and has good corrosion resistance and strength. The ASTM A403 WP304L Fittings have high operating temperature range up to 870 degrees Celsius. So they can be used in high heat applications. The low carbon content in the material makes it better for welding applications.
Buttweld Concentric Reducer Specifications
| Outside Diameter (OD) | Seamless Pipe Concentric Reducer ( 1/2″～24″), ERW / Welded / Fabricated Pipe Concentric Reducer (1/2″～48″) |
|---|---|
| Dimensions | ASME/ANSI B16.9, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313, ASME B16.28 |
| Wall Thickness | SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm |
| Bending Radius | R=1D – 10D, 15D, 20D |
| Product’s Angle | Concentric Reducer |
| Important Grades | ASTM A403 WP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L |
| Production Materials | Stainless Steel, Alloy Steel, Carbon Steel, Duplex, Nickel Alloys, Cupro Nickel, Low Temperature Steel |
| SS Melting Points | 1400-1450°C (WP304, WP304L), 1390-1440 °C (WP316L), 1370 – 1400 °C (WP316) |
Chemical Composition and Mechanical Property for 304L
| Steel Grade | Chemical Composition | Mechanical Performance | |||||||||
| C(Max) | Si(Max) | Mn(Max) | P(Max) | S(Max) | Ni | Cr | N | Mo | Tensile Strength (Min) |
Yield Strength (Min) |
|
| Mpa | Mpa | ||||||||||
| 304L | 0.03 | 0.75 | 2.00 | 0.045 | 0.03 | 8.0–12.0 | 18.0–20.0 | 0.1 | / | 485 | 170 |
Dimensional Tolerances of Concentric and Eccentric Reducers ASME B16.9
| Nominal Pipe Size | 1/2 to 2.1/2 | 3 to 3.1/2 | 4 | 5 to 8 |
| Outside Diameter at Bevel (D) |
+ 1.6 – 0.8 |
1.6 | 1.6 | + 2.4 – 1.6 |
| Inside Diameter at End | 0.8 | 1.6 | 1.6 | 1.6 |
| Overall Length (H) | 2 | 2 | 2 | 2 |
| Nominal Pipe Size | 10 to 18 | 20 to 24 | 26 to 30 | 32 to 48 |
| Outside Diameter at Bevel (D) |
+ 4 – 3.2 |
+ 6.4 – 4.8 |
+ 6.4 – 4.8 |
+ 6.4 – 4.8 |
| Inside Diameter at End | 3.2 | 4.8 | + 6.4 – 4.8 |
+ 6.4 – 4.8 |
| Overall Length (H) | 2 | 2 | 5 | 5 |
| Wall Thickness (t) | Not less than 87.5% of Nominal Wall Thickness | |||
Applications:
-Food processing equipment
-Equipment and appliances
-Architectural railings
-Pharmaceutical and chemical process equipment
-Heat exchangers
-Threaded fasteners
-Springs
-Industrial fabrications

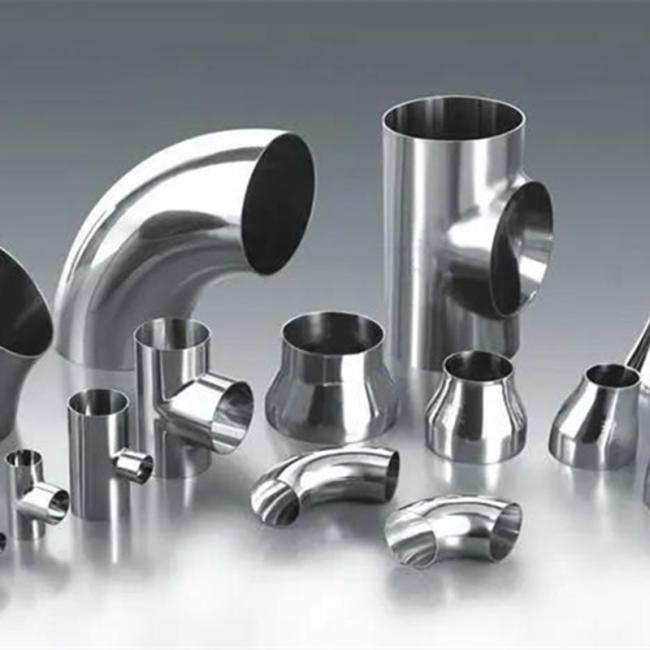

Stainless steel seamless butt welding inox pipe fitting
Type
Pipe elbow, tee, reducer, cap, stub end, bends etc.
Size
1/2"-24" seamless, 26"-60" welded
Standard
ANSI B16.9, EN10253-4, DIN 2605, GOST 17375-2001, JIS B2313, MSS SP 75, etc.
Wall thickness
SCH5S, SCH10S, SCH10, SCH40S, STD, XS, SCH80S, XXS, SCH20, SCH30, SCH40, SCH60, SCH80, SCH160, XXS and etc.
Elbow
30° 45° 60° 90° 180°,etc
Radius
LR/long radius/R=1.5D,SR/Shrot radius/R=1D, various radius: 3D,4D,5D,6D,7D, 10D, 20D etc.
End
Bevel end/BE/buttweld
Surface
Pickled,sand blasting, rolling blast,brighten,matt polished,mirror polished,vanished,
shinning
Material
Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S,
A403 WP347H, A403 WP316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,
1.4541, 254Mo and etc.
Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 ,
UNS32760, 1.4462,1.4410,1.4501 and etc.
Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,
C22, C-276,Monel400, Alloy20 etc.
