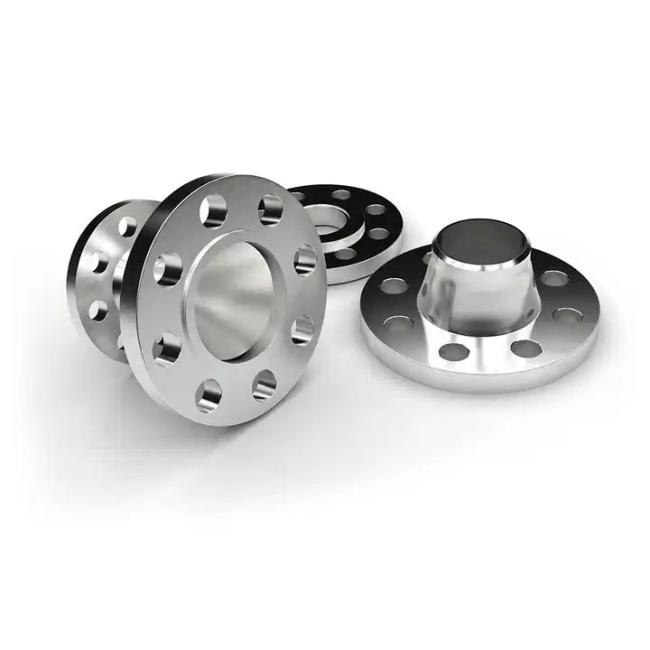

Forged Stainless Steel Pipe Flange , F60 1.4462 S32205 SWRF 6 Inch Weld Neck Flange

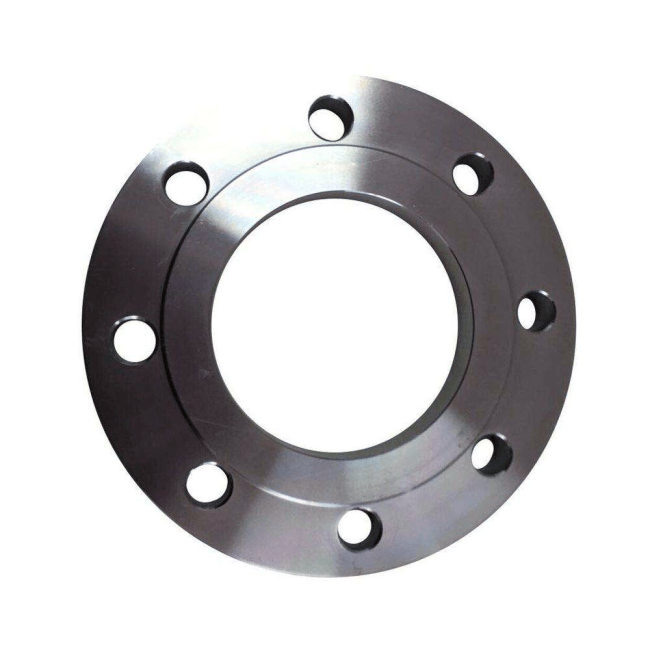

ASTM A182 F60 1.4462 S32205 Duplex Steel SWRF Forged Flange B16.5
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
F60 Equivalent:
| STANDARD | WERKSTOFF NR. | UNS |
| Duplex F60 | 1.4462 | S32205 |
F60 Chemical Composition:
| N | P | C | Si | Ni | Mo | Mn | Cr | Fe | S |
| 0.003 | 0.002 | 1.00 | 2.00 | Bal | 22.00 to 23.00 | 3.00 to 3.05 | 4.05 to 6.05 | 0.003 | 0.014 to 0.02 |
Mechanical Properties of F60 Flange:
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.8 g/m³ | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
ASTM A182 Grade F60 Duplex Flanges Weight Chart:
|
Normal Pipe Sizes |
Dimensions Of Flanges |
Weight In Kilogram |
||||
|---|---|---|---|---|---|---|
|
Normal Pipe Size |
DN (Millimeter) |
Flanges |
Flanges |
Slip-on |
Weld Neck (KG) |
Blind (KG) |
| 1/2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
Applications:
- Chemical processing
- Desalination plants
- Oil and gas exploration and production
- Geothermal wells
- Seawater and other chloride-containing environments
- Salt evaporation
- Pulp and paper production
- Oil and Gas - refining, petrochemical and gas processing application
- Seawater cooling
