SS Stainless Steel Welded Pipe ASTM A312 TP317L 0.4mm 0.5mm 0.6m
ASTM A312 TP317LStainless Steel Welded Pipe SS Pipe Stainless Steel Tube
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description :
ASTM A312 TP317L Stainless Steel is a low carbon austenitic grade. The Stainless Steel TP317L Pipe consists of iron, chromium, nickel, molybdenum, manganese, silicon, phosphorous, carbon, and sulfur. Stainless Steel TP317L Pipe works well in water conditions due to the content of molybdenum. The lower carbon content makes them to be resistant to sensitization and gives them higher creep-rupture properties.
Equivalent Grades:
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Specifications:
| Specification | ASTM A312 / ASME SA312 |
| Size | 1 / 8" NB - 24" NB |
| Types | Seamless - Hot Rolled / Cold Drawn; Welded |
| Length | Single Random, Double Random & Required Length |
| Outer Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB |
| Thickness | 0.3mm – 50 mm |
| Schedule | SCH10 - SCHXXS |
| Form | Round, Square, Rectangular, Hot Finish, Cold Drawn |
| End | Plain End, Beveled End, Treaded |
Chemical Properties:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | |
| SS317L | min. | - | - | - | - | - | 18 | 3 | 11 |
| max. | 0.03 | 2 | 0.75 | 0.04 | 0.03 | 20 | 4 | 15 | |
Mechanical Properties:
| Tensile strength | 595 MPa - 86300 Psi |
| Yield strength | 260 MPa - 37700 Psi |
| Elongation at break (in 50 mm) | 55% |
| Hardness, Rockwell B | 85 |
Applications:
Power Plant
Paper & Pulp Industry
Chemical Industry
Food Processing Industry
Fabrication Industry
Oil and Gas Plant
Water Supply Equipments

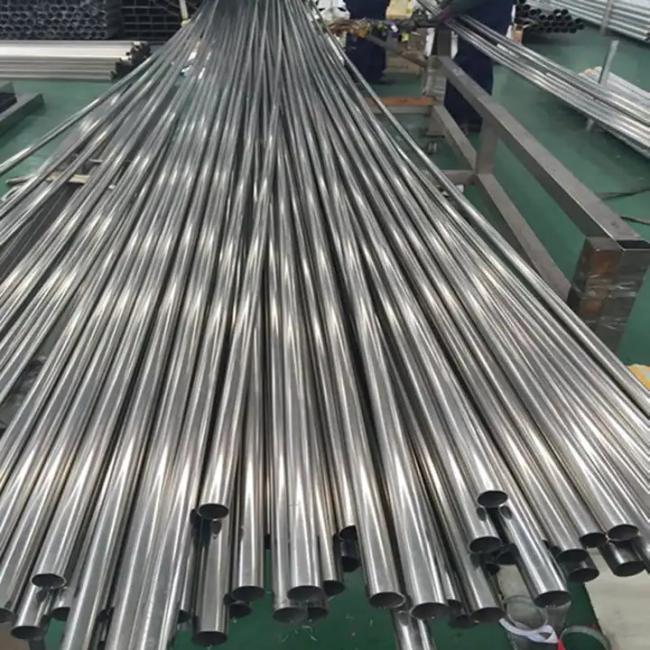

Detail Images:
