ASTM A213 TP304, TP304L , TP316L , TP321 , TP310S, TP347H , TP317L ,16 BWG 20FT Heat Exchanger Tube

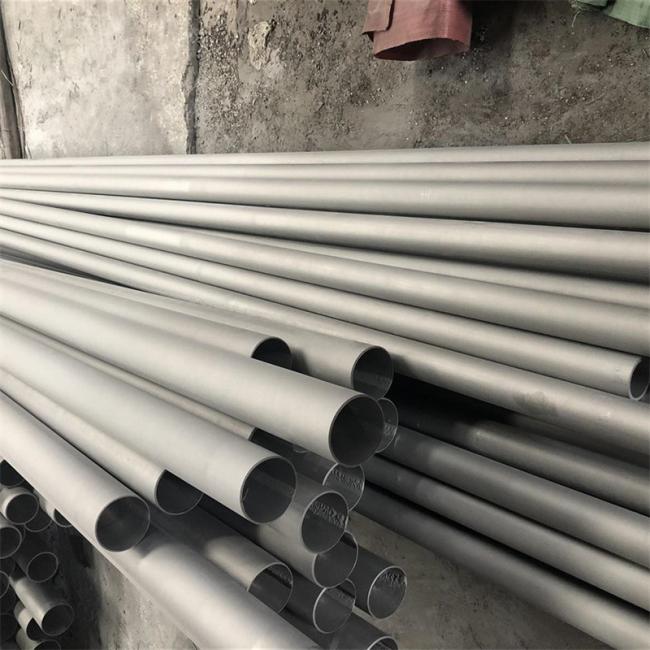

Stainless Steel Seamless Tube, ASTM A213 / ASME SA213 TP310S / TP310H , 3/4" 16 BWG 20FT, 100% ET & HT
| ube Sizes for Heat Exchangers & Condensers & Boiler | |||||||||
| Outside Diameter | BWG | ||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
| Wall Thickness mm | |||||||||
| 0.508 | 0.71 | 0.89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||
| mm | inch | Weight kg/m | |||||||
| 6.35 | 1/4 | 0.081 | 0.109 | 0.133 | 0.174 | 0.212 | |||
| 9.53 | 3/8 | 0.126 | 0.157 | 0.193 | 0.257 | 0.356 | 0.429 | ||
| 12.7 | 1/2 | 0.214 | 0.263 | 0.356 | 0.457 | 0.612 | 0.754 | ||
| 15.88 | 5/8 | 0.271 | 0.334 | 0.455 | 0.588 | 0.796 | 0.995 | ||
| 19.05 | 3/4 | 0.327 | 0.405 | 0.553 | 0.729 | 0.895 | 1.236 | ||
| 25.4 | 1 | 0.44 | 0.546 | 0.75 | 0.981 | 1.234 | 1.574 | 2.05 | |
| 31.75 | 1 1/4 | 0.554 | 0.688 | 0.947 | 1.244 | 1.574 | 2.014 | 2.641 | |
| 38.1 | 1 1/2 | 0.667 | 0.832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |
| 44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||
| 50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||
| 63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||
| 76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||
| 88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||
| 101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||
| 114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 | ||||
| Form of Tube: Straight & U-bend & Finned & Coiled | |||||||||
| Stainless Steel Tube: A/SA213, A/SA249, A/SA268, A/SA269, A/SA789, EN10216-5, A/SA688, B/SB163, JIS-G3463, GOST9941-81. | |||||||||
| Carbon &Alloy Steel Tube: A/SA178, A/SA179, A/SA192,A/SA209, A/SA210, A/SA213 | |||||||||
Specification:
ASME SA213/A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-
Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.
ASTM A249 / A249M:Standard Specification for Welded Austenitic Steel Boiler, Superheater
Heat-Exchanger, and Condenser Tubes.
Other Standard:DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463,...
| Product Item | Stainless Steel Heat Exchanger Tube |
| Grade | TP 304/304L, TP316/316L,TP 321/321H,TP317L, TP310S, TP310H, TP309S, TP314, TP329, TP347H etc |
| O.D. | 6.35-101.6mm(1/4''-4'') |
| W.T. | 0.71-14mm(0.028''-0.55'') |
| Size | OD ( 6.35-101.6mm ) * WT ( 0.71-14mm ) * MAX. 32M |
| Standard | ASTM A269, ASTM A312, ASTM A213 etc |
| Quality | MTC will be supplied with shipment, Third Party Inspection is acceptable |
| Application |
Petroleum, chemical enterprise, super heater of boiler and heat exchanger High temperature-resistant transmission fluid pipe in power station Ship with pressure pipe Exhaust purification device Construction and ornament etc |
| Advantage | Advanced technology of cold draw machine; Advanced annealing machine; better mechanical property; more precise dimension; perfect inspection method and inspection equipment etc |
| Process Method | Cold Drawn/ Cold Rolled etc |
| Surface Finish | Annealed, Pickled etc |
| Package |
|
| Delivery Time | 10-60 Days after receiving the deposit (Normally according to the order quantity) |
| Main Market | Europe, Middle East, Southeast Asia, South America. etc |
| Certificate | ABS, DNV-GL, BV, KR, LR, CCS, PED, TUV ,ISO9001, ISO 14001, ISO 18001 |
