DN250 Stainless Steel Valve 100mm PN16 Oil And Gas Pipeline Ball Valve
DN250 100mm PN16 Oil and Gas Pipeline Stainless Steel Gate Valves
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description:

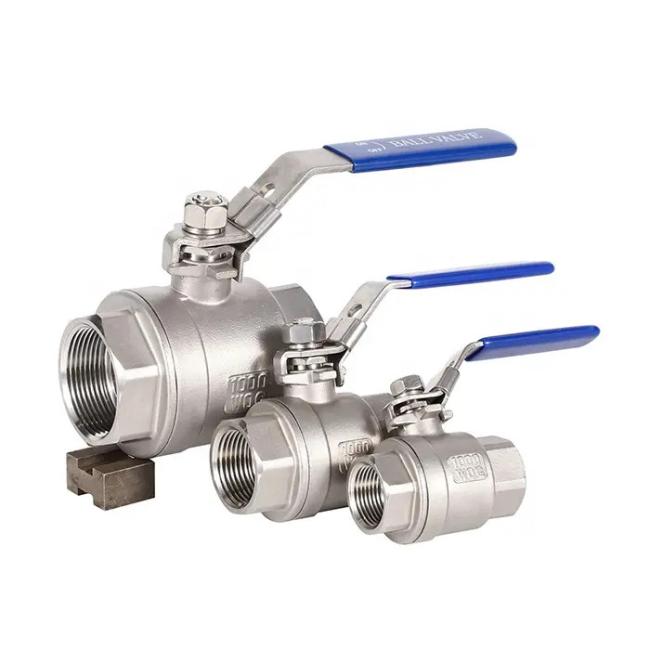

Female Threaded (NPT, BSPT) Stainless Steel (SUS304) Ball Valve Features:
THREAD STANDARD: NPT, BSPT, DIN259, DIN2999, ISO228 CLASS A
MAX PRESSURE:6.4MPA
TEMPERATURE RANGE: -20C~232C
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDS
BLOW-OUT PROOF STEM/FULL PORT
INVESTMENT CASTING BODY
1000PSI(PN64) W.O.G
MATERIAL STANDARD: S45C/ASTM A216 GR-WCB/DIN1.00619
SS316/ASTM A351 GR-CF8M/DIN1.4408
SS304/ASTM A351 GR-CF8/DIN1.4308
Main Parts and Materials
1 |
Cap | CF8/CF8M | 7 | Stem | SS316/SS304 |
| 2 | Gasket | PTFE | 8 | Packing | PTFE |
| 3 | Seat | PTFE | 9 | Gland | SS304/SS |
| 4 | Ball | SS316/SS304/SS | 10 | Handle | SS201 |
| 5 | Body | CF8/CF8M | 11 | Spring Washer | SS304/SS |
| 6 | Thrust Washer | PTFE | 12 | Stem Nut | SS304/SS |
Detail Images:
