UNS32750 2507 Duplex Stainless Steel Pipe SS Welded Tube For Agricultural Machine
Duplex:UNS32750(2507) Welded Stainless Steel Pipes/Tubes for Agricultural Machinery
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description :
S32750 (2507) Seamless Pipe Chemical Composition:
| HEAT NO. | CHEMICAL COMPOSITION (%) | |||||||||
| C | Mn | P | S | Si | Ni | Cr | Mo | N | ||
| STAND. | MIN. | 6.0 | 24.00 | 3.0 | 0.24 | |||||
| MAX. | 0.03 | 1.20 | 0.035 | 0.020 | 0.80 | 8.0 | 26.00 | 5.0 | 0.32 | |
S32750 (2507) Seamless Pipe Mechanical Properties:
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| S32750 (2507) | 515 | 205 | 35 | 90 | 187 |
Welded Tube Advantages
1. Uniform wall thickness the base material is formed strip, with good wall thickness consistency and high surface finish, reaching
industrial clean surface level 2B.
2. Low residual stress - the steel pipe after forming uses a high temperature above 1040 degrees for bright annealing of the stainless
steel pipe to eliminate stress.
3. High weld strength - welding adopts fusion welding, the material composition is unchanged, after high temperature heat treatment,
the weld and the base material have the same intergranular structure, flattening the weld, reverse bending, flaring and other damage
experiments, the weld will not appear cracking or cracks, burring and other problems. In addition to eddy current testing and water
pressure or gas test to ensure the quality of the pipe.
4. Good consistency - the outer diameter, wall thickness, length and straightness of the pipe are consistent, and the processing
accuracy is high
Stainless Steel Welded Tube Product Description
| Material | 304, 304L, 316, 316L, 201, 202, 430, 409 |
| Standard: | ASTM A554, JIS G3446, EN 10297 |
| Outside Diameter | 9.5mm ~ 100mm |
| Thickness: | 0.4mm ~ 4.0mm |
| Length: | 10mm ~ 7.5 meter or any custom made |
| MOQ: | 10 to 1000pcs or more quantity |
| Technixal flow | Coil → Inspecting → Slitting → Welding → Cutting → Buffing → Inspecting → Packing → Trucking |
| Surface | Hairline polished mirror |
Packaging &Shipping
| Packing Idea | Packing Method by Customer Request |
| 1 | Each piece per poly bag or labeling. |
| 2 | Each piece per paper tube. |
| 3 | Pack tubes into paper cartons for customer special requirement. |
| 4 | 50 pieces per bundle with waterproof packing |
| 5 | Provide strong packing with wooden crate, wooden case, steel crate, plastic pallet, wooden pallet, paper pallet as customer need. |
| 6 | Good experience for loading goods into container for customer request |

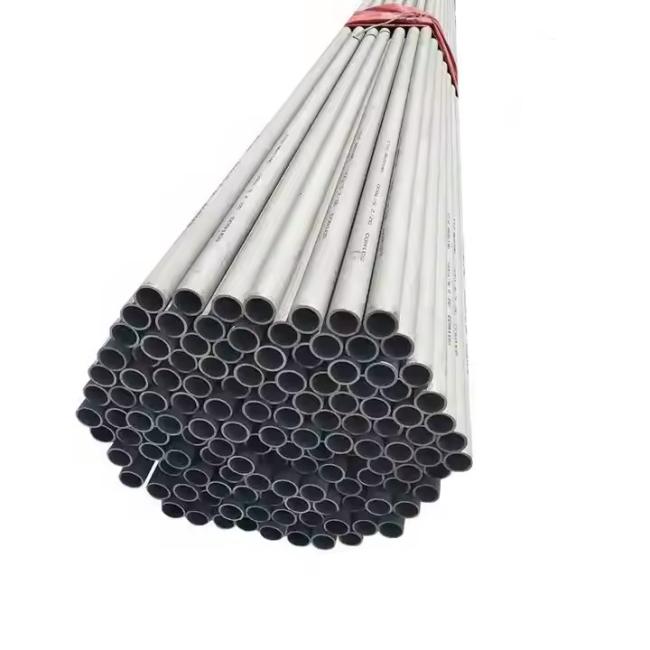

Detail image
 |
 |
