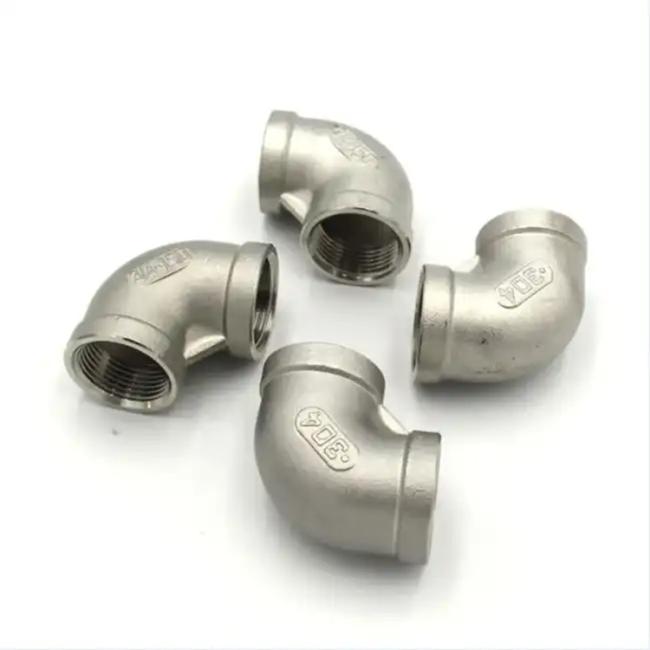

90 Degree Elbow Stainless Steel Pipe Fittings ASTM A182 F316l ASME B16.11

Name: 90 Degree Elbow Stainless Steel Pipe Fittings ASTM A182 F316l ASME B16.11
Brand: Wenzhou Shangle Steel Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: MOQ500kg

Delivery Time: 7-15 working days after receiving payment

Brand: Shangle

Product Description

ASTM A182 F316l ASME B16.11 Stainless Steel Elbow Fitting

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.

Description :

quare Socket Reducer Inserts , Stainlesss, Carbon Steel , Duplex Steel , Nickel Alloy Steel .

Product Pictures and Drawings

Socket weld reducer Inserts availbale in class 3000, 6000 and 9000

		Class 3000				Class 6000				Class 9000
Nominal Pipe Size	C	D	Fitting Type	A	B	E	Fitting Type	A	B	E	Fitting Type	A	B	E
3/8 x 1/4	0.675	0.555	1	7/16	3/4	15/16	1	7/16	7/8	1
1/2 x 3/8	0.850	0.690	1	7/16	13/16	1 1/16	1	7/16	15/16	1 3/16
1/2 x 1/4	0.850	0.555	1	7/16	13/16	15/16	1	7/16	7/8	1
3/4 x 1/2	1.060	0.855	1	7/16	7/8	1 5/16	1	7/16	1 1/16	1 3/8	1	7/16	1 3/16	1 3/4
3/4 x 3/8	1.060	0.690	2	7/16	5/8	-	1	7/16	7/8	1 3/16
3/4 x 1/4	1.060	0.555	2	3/8	11/16	-	2	3/8	7/8	-
1 x 3/4	1.325	1.065	1	9/16	15/16	1 1/2	1	9/16	1 1/8	1 11/16	1	9/16	1 1/4	2
1 x 1/2	1.325	0.855	2	1/2	5/8	-	1	7/16	1 1/8	1 3/8	1	7/16	1 1/8	1 3/4
1 x 3/8	1.325	0.690	2	7/16	11/16	-	2	1/2	7/8	-
1 x 1/4	1.325	0.555	2	3/8	3/4	-	2	3/8	15/16	-
1 1/4 x 1	1.670	1.330	1	9/16	1	1 7/8	1	9/16	1 3/16	2	1	9/16	1 3/8	2 3/8
1 1/4 x 3/4	1.670	1.065	2	9/16	11/16	-	2	9/16	13/16	-	1	9/16	1 3/16	2
1 1/4 x 1/2	1.670	0.855	2	1/2	3/4	-	2	1/2	7/8	-	2	1/2	7/8	-
1 1/4 x 3/8	1.670	0.690	2	7/16	13/16	-	2	7/16	15/16	-
1 1/4 x 1/4	1.670	0.555	2	3/8	7/8	-	2	3/8	1	-
1 1/2 x 1 1/4	1.910	1.675	1	9/16	1 1/8	2 1/4	1	9/16	1 3/8	2 3/8	1	9/16	1 5/8	2 3/4
1 1/2 x 1	1.910	1.330	2	5/8	11/16	-	1	9/16	1 3/16	2	1	9/16	1 3/8	2 3/8
1 1/2 x 3/4	1.910	1.065	2	9/16	3/4	-	2	9/16	1	-	2	9/16	1	-
1 1/2 x 1/2	1.910	0.855	2	1/2	13/16	-	2	1/2	1 1/16	-	2	9/16	1	-
1 1/2 x 3/8	1.910	0.690	2	7/16	7/8	-	2	7/16	1 1/8	-
2 x 1 1/2	2.385	1.915	1	9/16	1 1/4	2 1/2	1	9/16	1 7/8	2 11/16	1	9/16	2 1/16	3
2 x 1 1/4	2.385	1.675	2	11/16	13/16	-	2	7/8	15/16	-	1	9/16	2	2 3/4
2 x 1	2.385	1.330	2	5/8	7/8	-	2	13/16	1	-	2	13/16	1	-
2 x 3/4	2.385	1.065	2	9/16	15/16	-	2	3/4	1 1/16	-	2	3/4	1 1/16	-
2 x 1/2	2.385	0.855	2	1/2	1	-	2	11/16	1 1/8	-	2	11/16	1 1/8	-

Stainless steel seamless butt welding inox pipe fitting

Type

Pipe elbow, tee, reducer, cap, stub end, bends etc.

Size

1/2"-24" seamless, 26"-60" welded

Standard

ANSI B16.9, EN10253-4, DIN 2605, GOST 17375-2001, JIS B2313, MSS SP 75, etc.

Wall thickness

SCH5S, SCH10S, SCH10, SCH40S, STD, XS, SCH80S, XXS, SCH20, SCH30, SCH40, SCH60, SCH80, SCH160, XXS and etc.

Elbow

30° 45° 60° 90° 180°,etc

Radius

LR/long radius/R=1.5D,SR/Shrot radius/R=1D, various radius: 3D,4D,5D,6D,7D, 10D, 20D etc.

End

Bevel end/BE/buttweld

Surface

Pickled,sand blasting, rolling blast,brighten,matt polished,mirror polished,vanished,

shinning

Material

Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S,

A403 WP347H, A403 WP316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,

1.4541, 254Mo and etc.

Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 ,

UNS32760, 1.4462,1.4410,1.4501 and etc.

Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,

C22, C-276,Monel400, Alloy20 etc.

		Class 3000				Class 6000				Class 9000
Nominal Pipe Size	C	D	Fitting Type	A	B	E	Fitting Type	A	B	E	Fitting Type	A	B	E
3/8 x 1/4	0.675	0.555	1	7/16	3/4	15/16	1	7/16	7/8	1
1/2 x 3/8	0.850	0.690	1	7/16	13/16	1 1/16	1	7/16	15/16	1 3/16
1/2 x 1/4	0.850	0.555	1	7/16	13/16	15/16	1	7/16	7/8	1
3/4 x 1/2	1.060	0.855	1	7/16	7/8	1 5/16	1	7/16	1 1/16	1 3/8	1	7/16	1 3/16	1 3/4
3/4 x 3/8	1.060	0.690	2	7/16	5/8	-	1	7/16	7/8	1 3/16
3/4 x 1/4	1.060	0.555	2	3/8	11/16	-	2	3/8	7/8	-
1 x 3/4	1.325	1.065	1	9/16	15/16	1 1/2	1	9/16	1 1/8	1 11/16	1	9/16	1 1/4	2
1 x 1/2	1.325	0.855	2	1/2	5/8	-	1	7/16	1 1/8	1 3/8	1	7/16	1 1/8	1 3/4
1 x 3/8	1.325	0.690	2	7/16	11/16	-	2	1/2	7/8	-
1 x 1/4	1.325	0.555	2	3/8	3/4	-	2	3/8	15/16	-
1 1/4 x 1	1.670	1.330	1	9/16	1	1 7/8	1	9/16	1 3/16	2	1	9/16	1 3/8	2 3/8
1 1/4 x 3/4	1.670	1.065	2	9/16	11/16	-	2	9/16	13/16	-	1	9/16	1 3/16	2
1 1/4 x 1/2	1.670	0.855	2	1/2	3/4	-	2	1/2	7/8	-	2	1/2	7/8	-
1 1/4 x 3/8	1.670	0.690	2	7/16	13/16	-	2	7/16	15/16	-
1 1/4 x 1/4	1.670	0.555	2	3/8	7/8	-	2	3/8	1	-
1 1/2 x 1 1/4	1.910	1.675	1	9/16	1 1/8	2 1/4	1	9/16	1 3/8	2 3/8	1	9/16	1 5/8	2 3/4
1 1/2 x 1	1.910	1.330	2	5/8	11/16	-	1	9/16	1 3/16	2	1	9/16	1 3/8	2 3/8
1 1/2 x 3/4	1.910	1.065	2	9/16	3/4	-	2	9/16	1	-	2	9/16	1	-
1 1/2 x 1/2	1.910	0.855	2	1/2	13/16	-	2	1/2	1 1/16	-	2	9/16	1	-
1 1/2 x 3/8	1.910	0.690	2	7/16	7/8	-	2	7/16	1 1/8	-
2 x 1 1/2	2.385	1.915	1	9/16	1 1/4	2 1/2	1	9/16	1 7/8	2 11/16	1	9/16	2 1/16	3
2 x 1 1/4	2.385	1.675	2	11/16	13/16	-	2	7/8	15/16	-	1	9/16	2	2 3/4
2 x 1	2.385	1.330	2	5/8	7/8	-	2	13/16	1	-	2	13/16	1	-
2 x 3/4	2.385	1.065	2	9/16	15/16	-	2	3/4	1 1/16	-	2	3/4	1 1/16	-
2 x 1/2	2.385	0.855	2	1/2	1	-	2	11/16	1 1/8	-	2	11/16	1 1/8	-
