ASME SB677 N08904 TP904L 1.4539 Austenitic SMLS Pipe Corrosive Service

ASME SB677 N08904 TP904L 1.4539 Austenitic SMLS Pipe Corrosive Service

What is TP904L?

904L is a highly alloyed, low carbon containing, non-stabilized austenitic stainless steel grade. Copper has been added to the alloy of 904L Stainless Steel Pipe. Hence, its resistance to strong reducing acids such as sulfuric acid is very high.

We focus in manufacturing special size and custom shape products for our clients.

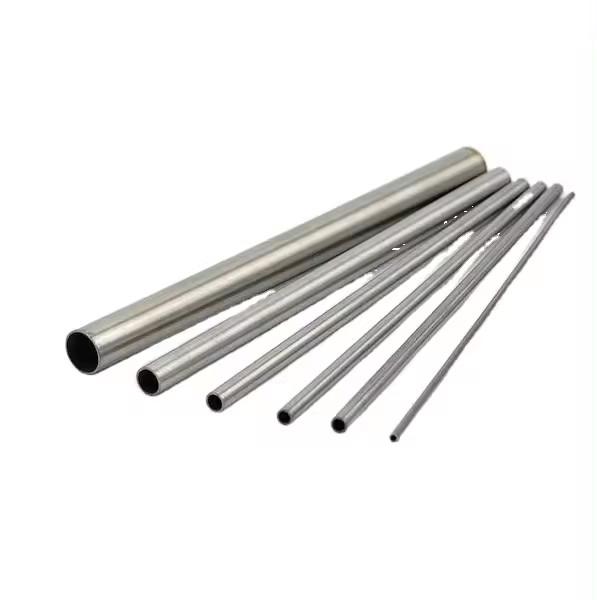

1. Commodity: Seamless Stainless Steel Pipe ASTM B677 UNS N08904(904L)

2. Process method: Cold drawn/cold rolled

3. Surface finish: Anneal/pickling/manual polish/ mechanical polish

4. Material: UNS N08904/904L

5. Standards: ASTM B677

6. Size:

A) NPS: 1/8" to 8"

B) Schedule: 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S, acc. To ANSI B36.19

C) O. D.: 6 mm to 219 mm

D) W. T.: 0.5 mm to 25 mm

E) Length: Max. 20 meters

7. Delivery conditions: Annealled, Picklinged and Polished

8. packing: Seaworthy wooden cases/steel framed plywood cases/simple packaging

Chemical Composition of TP904L

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	Cu
904L	min. max.	- 0.020	- 2.00	- 1.00	- 0.045	- 0.035	19.0 23.0	4.0 5.0	23.0 28.0	1.0 2.0
