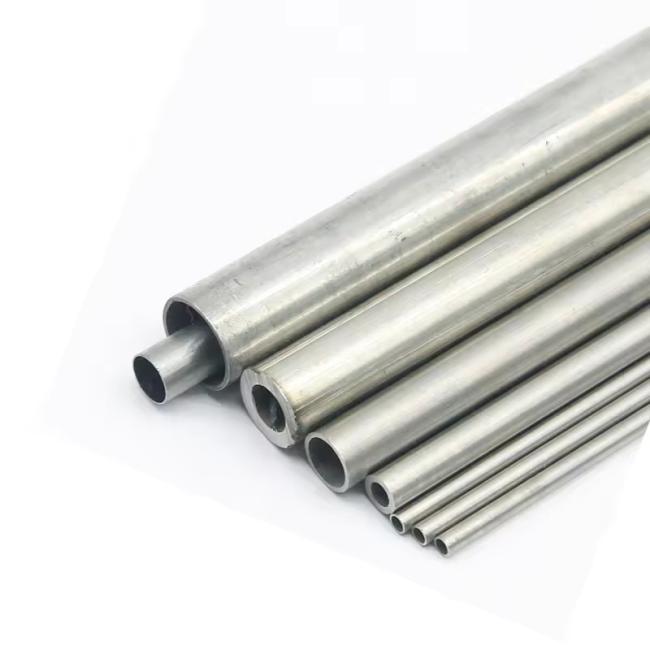

JIS G3459 SUS304 Stainless Steel Seamless Pipe Large Diameter
JIS G3459 SUS304 Stainless Steel Seamless Pipe Large Diameter
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
JIS G3459 stainless steel pipes are used for corrosion resistant pipes, different grades are suitable for low temperature and high temperature service, the manufacturing method can be cold working or hot working, so it can meet the requirements of a wide range of specific products to meet the needs of customer applications.
Description
| Description | ||
| Type: | tube | |
| Outer Diameter | 6-2500mm, (3/8"-100") | |
| Thickness | 0.3-150mm,(SCH10-XXS) | |
| Length: | 2000mm, 2500mm, 3000mm, 5800mm, 6000mm,12000mm, etc | |
| Standard: | ASTM,AISI,JIS,,GB, DIN,,EN | |
| Surface: | BA,2B,NO.1,NO.4,4K,HL,8K | |
| Application: | It is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture, and ship components.It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen mesh etc. | |
| Certification: | ISO, SGS,BV | |
| Technique: | Cold Drawn Seamless Tube / Welded pipe | |
| Edge: | Mill Edge Slit Edge | |
| Quality: | SGS Inspection | |
| Grade (ASTM UNS) | 201,304,304L,321,316,316L,317L,347H,309S,310S,904L,S32205,2507,254SMOS,32760,253MA,N08926 | |
| Grade (EN) | 1.4301,1.4307,1.4541,1.4401,1.4404,1.4571,1.4438,1.4539,1.4547,1.4529,1.4562,1.4410,1.4878,1.4845,1.4828,1.4876,2.4858,2.4819 | |
| Main market: | Asia/Europe/ South America | |
| Supply Ability: | 5000 Ton/Tons per Month | |
Chemical Composition:
| Grade | Chemical composition | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Ni | Cr | Mo | Others | |
| SUS 304 HTP | 0.04~0.10 | 0.75max. | 2.00 max. | 0.040 max. | 0.030 max. | 8.00~11.00 | 18.00~20.00 | - | - |
| SUS 309 STP | 0.08 max. | 1.00 max. | 2.00 max. | 0.040 max. | 0.030 max. | 12.00~15.00 | 22.00~24.00 | - | - |
| SUS 310 TP | 0.15 max. | 1.50 max. | 2.00 max. | 0.040 max. | 0.030 max. | 19.00~22.00 | 24.00~26.00 | - | - |
| 0.08 max. | 1.50 max. | 2.00 max. | 0.040 max. | 0.030 max. | 19.00~22.00 | 24.00~26.00 | - | - | |
| SUS 316TP | 0.08 max. | 1.00 max. | 2.00 max. | 0.040 max. | 0.030 max. | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | - |
| SUS 316HTP | 0.04~0.10 | 0.75 max. | 2.00 max. | 0.030 max. | 0.030 max. | 11.00~14.00 | 16.00~18.00 | 2.00~3.00 | - |
| SUS 316LTP | 0.030 max. | 1.00 max. | 2.00 max. | 0.040 max. | 0.030 max. | 12.00~16.00 | 16.00~18.00 | 2.00~3.00 | - |
| SUS 316HTP | 0.04~0.10 | 0.75 max. | 2.00 max. | 0.030 max. | 0.030 max. | 11.00~14.00 | 16.00~18.00 | 2.00~3.00 | - |
| SUS 316TiTP | 0.08 max. | 1.00 max. | 2.00 max. | 0.040 max. | 0.030 max. | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | Ti 5XC % min. |
Mechanical properties:
| Grade | Tensile strength | Proof stress | Elongation % | |||
|---|---|---|---|---|---|---|
| kgf/mm2 {N/mm2} | kgf/mm2 {N/mm2} | No. 11 test piece No. 12 test piece |
No.5 test piece | No.4 test piece | ||
| Longitudinal direction | Transverse direction | Longitudinal direction | Transverse direction | |||
| SUS 304TP | 53{520}min. | 21{206} min | 35 min | 25 min | 30 min | 22 min |
| SUS 304HTP | 53{520}min. | 21{206} min | 35 min | 25 min | 30 min | 22 min |
| SUS 304LTP | 49{481}min. | 18{177} min | 35 min | 25 min | 30 min | 22 min |
