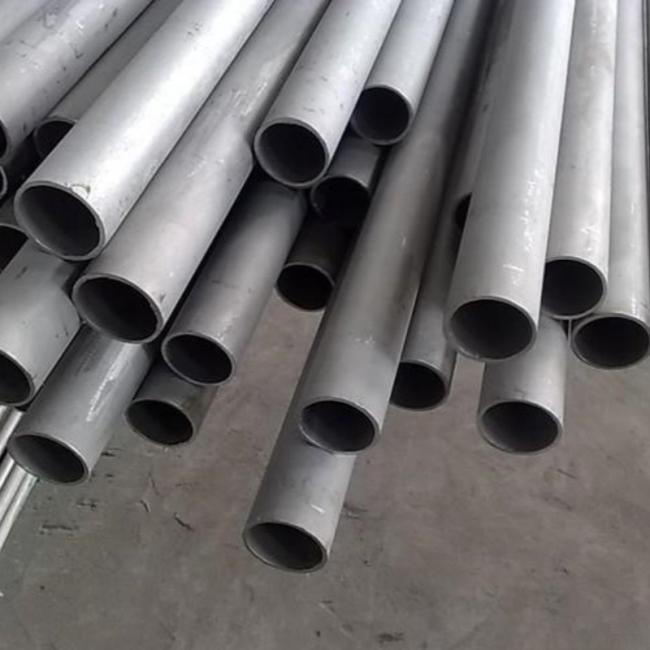

ASTM A312 TP317L / UNS S31703 Stainless Steel Welded Pipe Pickled And Annealed
ASTM A312 TP317L Pickled and Annealed Pipe Stainless Steel Welded Pipe
TP317L offers excellent corrosion resistance in a wide range of corrosive environments, including acidic and chloride-rich conditions. This makes it suitable for applications where corrosion resistance is critical. TP317L is also a readily weldable material. Welding processes such as TIG (Tungsten Inert Gas) welding, MIG (Metal Inert Gas) welding, and submerged arc welding can be used to join TP317L pipes.
Stainless steel grade 317L is a low carbon version of grade 317 stainless steel. It has the same high strength and corrosion resistance as 317 steel but can produce stronger welds due to the low carbon content.
| STANDARD | UNS | WERKSTOFF NR. |
| SS 317 | S31700 | 1.4449 |
| SS 317L | S31703 | 1.4438 |
Mechanical Properties ASTM A312 TP 317L Stainless Steel Pipes and Tubes
| Density | 8.0 g/cm3 |
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000, MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000, MPa – 205 |
| Elongation | 35 % |
Physical Properties (Room Temperature) ASTM A312 TP 317L Stainless Steel Pipes and Tubes
| Specific Heat (0-100°C) | Thermal Conductivity | Thermal Expansion | Modulus Elasticity | Electrical Resistivity | Density |
| 500 | 14.6 | 16.5 | 193 | 7.4 | 7.99 |
| J.kg-1.°K-1 | W.m -1.°K-1 | mm/m/°C | GPa | μohm/cm | g/cm3 |
| ASTM Specification | ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790 |
|---|---|
| Standard | ASTM, ASME, JIS, AISI, AMS, EN, SAE, DIN, NF, TOCT, DS, DTD, GB |
| DIN 1.4438 SS 317L Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
| astm a312 tp317L EFW Pipe size | 5.0 - 1219.2 mm |
| SS 317L Welded Pipe Size | 5.0 - 1219.2 mm |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| 317L Stainless Steel Pipe Length | Single Random, Double Random, Cut length |
| stainless steel astm a312 tp317L Pipe Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Form | 317L Stainless Steel Pipe are available in form of Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc |
| 317L Stainless Steel Pipe End | Plain End, Beveled End, Treaded Pipe, Screwed ends |
| Type of 317L SS Pipe | Seamless / ERW/ EFW / Welded / Fabricated |
| Application of 317L Stainless Steel Pipe | Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry |
| Marking on ASTM A249 TP 317L Stainless Steel Pipe | All 317L Stainless Steel Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Lot No., Heat No. (Or according to the customer’s request.) |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Specialize in | Large Diameter 317L Stainless Steel Pipe |
| Typical Manufacturing Specifications in Stainless Steel |
|
| 317L Stainless Steel Pipe Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate as approved Under Third Party Inspection |
| Material Test Certificates (MTC) | Material Test Certificates (MTC) as per EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2, 100% Radiography Test Report, Heat Treatment Report, Raw Materials Certificate, Third Party Inspection Report ... |
Applications
The A312 TP317L welded pipe is typically used in applications where corrosion resistance is a key requirement. It is commonly used in industries such as chemical processing, petrochemical, oil and gas, food processing, and pharmaceuticals, where the pipe is exposed to corrosive environments. The TP317L grade is known for its high corrosion resistance, especially in acidic and chloride-rich environments.
