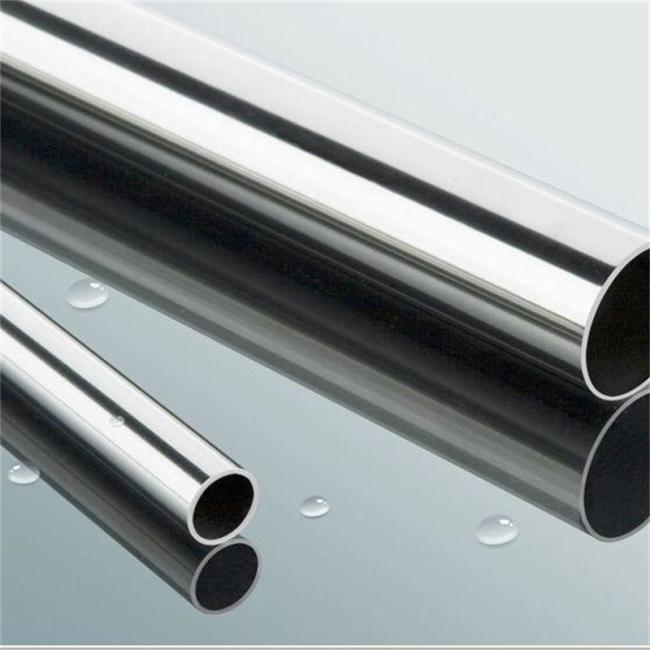

Bright Annealed Stainless Steel Tube，High Precision Cold Rolling, DIN 17458, EN10216-5 D4/T4
Bright Annealed Stainless Steel Tube,High Precision Cold Rolling, DIN 17458, EN10216-5 TC 2 D4/T4
Standard: ASTM/ASME A/SA213, A/SA269, DIN17458/17457, EN10216-5 D4 /T4 /10217-7. After negotiation, we can supply pipe with customers’ requirement.
Material Grade: 1.4301,1.4307,1.4948, 1.4821, 1.4845, 1.4401, 1.4404, 1.4406, 1.4571, 1.4539, 1.4438, 1.4541, 1.4550, 1.4912, 1.4462, 1.4362, 1.4410, 1.4501 etc also ASTM, GOST, JIS grades available, other grade can also be provided after consulting with customers.
Size Range:Seamless Tube(OD: Φ3 mm-Φ76mm WT: 0.15mm-20.0mm, Length:Max. 200M/pc)
Some of the quality tests carried out by us includes:
| Corrosion Test | Conducted only when specially requested by the client |
| Chemical Analysis | Test done as per required quality standards |
| Destructive / Mechanical Testing | Tensile | Hardness | Flattening | Flare | Flange |
| Reverse-bend and Re. flat tests | Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end |
| Eddy Current Testing | Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System |
| Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
| Air Under Pressure Test | To check any evidence of air leakage |
| Visual Inspection | After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:
|
|
|
Main Test of ss sml tube :
EDDY CURRENT TEST EN 10249-3 E3H
US-TEST EN 10246-7 U3B
TENSILE TEST EN ISO 6892-1
FLATTENING TEST EN ISO 8492
DRIFT EXPENDING TEST EN ISO 8493
LEAK-PROOF TEST EN 10246-1
Application :
Air Cylinder Tubing,
Automotive fuel lines,
Heat Exchanger Tubing,
Hydraulic Cylinder Tubing,
Precision Mechanical Tubing,
Sanitary service,
Thermo couples
