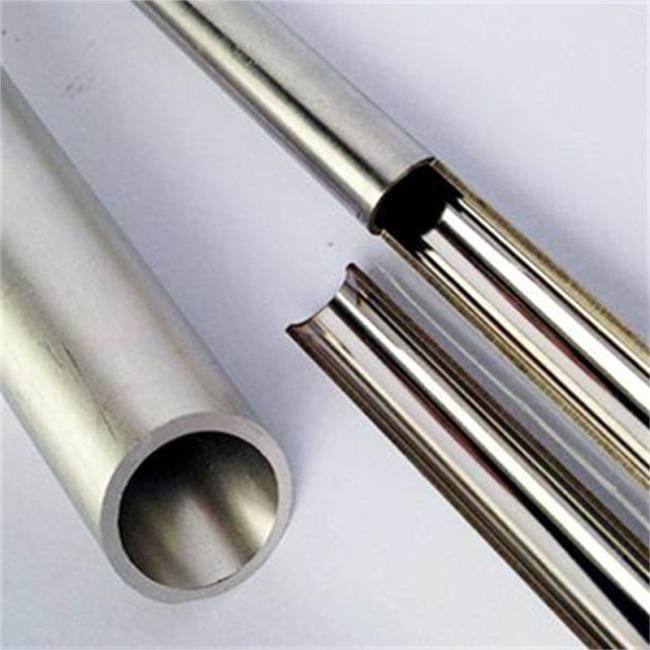

ASTM A269 TP316L 320# Polished Bright Annealed Tube Seamless For General Industry
Stainless Steel Tubes Bright Annealed ASTM A213 / ASTM A269 TP304 TP316L BA HYDRAULIC TEST
Characteristic: With cold press (mainly cold rolling), the gas protects heat treatment, with high precision:
ID:Ra≤0.4μm,OD:Ra≤0.8μm；Mainly for precision instrument, Hydraulic pressure system, exhaust gas
system etc.
Standard: ASTM/ASME A/SA213, A/SA269, DIN17458/17457, EN10216-5/10217-7. After negotiation, we can
supply pipe with customers’ requirement.
Material Grade: TP304, TP304L, TP316, TP316L, TP316Ti, and TP321 etc also DIN/EN grades available,
other grade can also be provided after consulting with customers.
ASTM A269 Standard Tubing Chemical Composition
| SS GRADE | ASTM A269/SA 269 CHEMICAL COMPOSITION % MAXIMUM | ||||||||||
| C | MN | P | S | SI | CR | NI | MO | N B | NB | TI | |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-11.0 | --- | --- | --- | --- |
| TP304L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-12.0 | --- | --- | --- | --- |
| TP316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | --- | --- | --- |
| TP316L | 0.035 D | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | --- | --- | --- |
| TP321 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | --- | --- | --- | 5C -0.70 |
| TP347 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | 10C -1.10 | --- | ||
Size Range:Seamless Tube(OD: Φ6mm-Φ76mm WT: 0.15mm-4.0mm, Length:Max. 500M/pc)
Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:
· Eddy Current Testing · O.P Testing · Radiography Testing | · Corrosion Testing · Micro Testing · Macro Testing | · IGC Testing · Ultrasonic testing · Liquid Penetrate testing |
Application:
Bright annealed stainless steel welded pipe is widely used in making military products, semiconductor, biological medicine, precision instruments and meters, hydraulic parts and many other industrial products.
