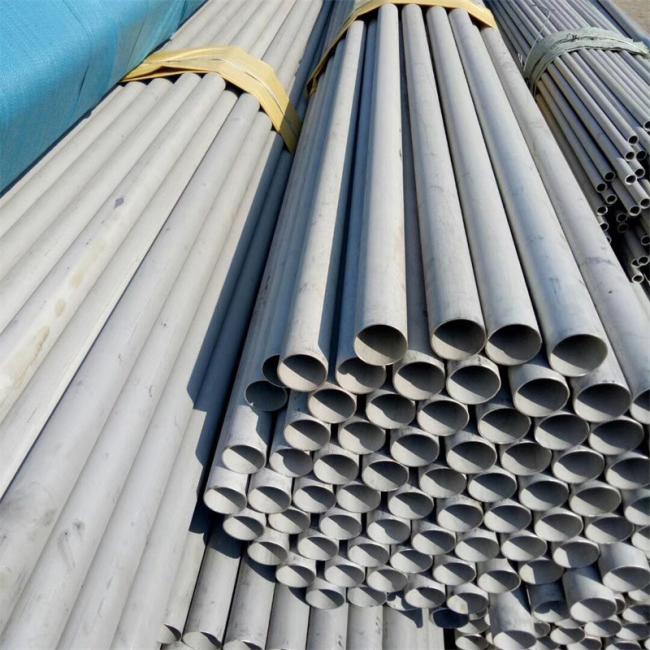

ASTM A213 / ASME SA213 TP304/304L 1.4301/1.4307 STAINLESS STEEL SEAMLESS TUBE FOR HEAT EXCHANGER
ASTM A213/ASME SA213 TP304/304L 1.4301/1.4307 STAINLESS STEEL SEAMLESS TUBE FOR HEAT EXCHANGER
Overview:
TP304/304L Seamless Tube is an austenitic stainless steel seamless tube that is widely used in various industrial applications due to its excellent corrosion resistance, high-temperature strength, and ease of fabrication. The TP304/304L composition includes 18% chromium and 8% nickel providing exceptional resistance to various corrosive environments.
These tubes are commonly used in petrochemical, chemical, power generation, and oil and gas industries where they need to resist harsh and corrosive conditions. This type of tube can also be applied in food and beverage industries as well as in the pharmaceutical industry due to its hygienic properties.
One of the benefits of using TP304/304L Seamless Tubes is its seamless construction. The tubes are produced without welded joints, which makes them more durable and reliable, providing better resistance to high-temperature and high-pressure applications, as well as reducing the risk of leaks.
The tubes come in different sizes and thicknesses, ranging from 1/8 inch to 5 inches in outside diameter, with a wall thickness that may vary from 0.015 inches to 0.500 inches. These tubes are produced using several different manufacturing processes like cold drawing, cold rolling and hot extrusion, and post-production heat treatment.
The TP304L low carbon content helps prevent sensitization and subsequent intergranular corrosion that may occur in some corrosive environments. Additionally, the TP304L seamless tubing is produced to ASTM A213 and A269 standards, ensuring high quality and consistency in its properties.
Specification:
| Standard | ASTM A213 & Its equivalent ASME, DIN & EN Standard |
| Grades | TP304/304L;1.4301/1.4307;TP304H;TP304LN |
| Type | U-bend/Straight seamless tube |
| Outer Diameter | 1/4'' to 2'' or custom size |
| Wall Thickness | BWG25;BWG22;BWG20;BWG18;BWG16;BWG14;BWG12;BWG10 |
| Length | Upto 6 meters or custom cut lengths |
| Delivery Condition | Solution Annealed & Pickled; Bright Annealed |
| Ends | Plain End, Beveled End |
| Other Testing | Product Analysis, Eddy Current Test, Hydrostatic Test, Ultrasonic Test, Flattening Test, Hardness Test, Tensile Test etc. |
| Dimension | All Pipe & Tube Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Packing | Plywood case/Woven bag in bundle |
Chemical Composition:
| Grade | UNS | C | Mn | P | S | Si | Cr | Ni |
| TP304 | S30400 | 0.08 max | 2.00 max | 0.045 max | 0.03 max | 1.00 max | 18.0-20.0 | 8.0-11.0 |
| TP304L | S30403 | 0.035 max | 2.00 max | 0.045 max | 0.03 max | 1.00 max | 18.0-20.0 | 8.0-12.0 |
| TP304H | S30409 | 0.04-0.10 | 2.00 max | 0.045 max | 0.03 max | 1.00 max | 18.0-20.0 | 8.0-11.0 |
Mechanical Properties:
| Grade |
Density g/cm³ |
Tensile Strength, min, ksi (MPa) |
Yield Strength, min, ksi (MPa) |
Elongation in 2 in. or 50mm, min (%) |
Hardness |
Solutioning Temperature, min, °F(°C) |
|
| Rockwell | Brinell/Vickers | ||||||
| TP304 | 7.93 | 75(515) | 30(205) | 35 | 90HRB | 192HBW/200HV | 1900(1040) |
| TP304L | 7.93 | 70(485) | 25(170) | 35 | 90HRB | 192HBW/200HV | 1900(1040) |
| TP304H | 7.93 | 75(515) | 30(205) | 35 | 90HBR | 192HBW/200HV | 1900(1040) |
Applications:
1.Food processing equipment, particularly in beer brewing, milk processing & wine making.
2.Kitchen benches, sinks, troughs, equipment and appliances
3.Architectural panelling, railings & trim
4.Chemical containers, including for transport
5.Heat Exchangers
6.Woven or welded screens for mining, quarrying & water filtration
7.Threaded fasteners
8.Springs
