Silver Rechargeable Lithium Polymer Battery 103040 Li Ion Battery 1200mAh 3.7V
Silver Rechargeable Li ion Polymer Battery 103040 1200mAh 3.7V Li Po Battery With UN38.3 and IEC62133
Li ion Polymer Battery Features
We can design all kinds of lithium polymer battery cells and packs according to your requirements
Long cycle life: Over 500 times.
Good built-up capability and good consistency.

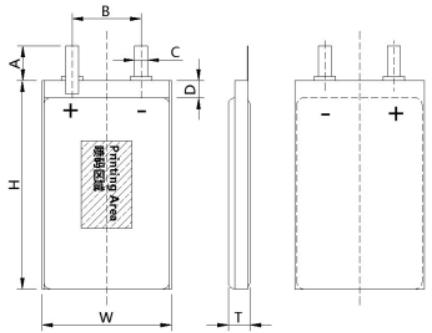

Drawing of 103040 Lipo Battery Cell
|
Item |
Description |
Dimension |
|
| A |
Cell Tab Length |
7± 2 mm | |
| B |
Cell Tab Pitch |
13± 2 mm | |
| C |
Cell Tab Width |
3± 0.2 mm | |
| D |
Cell Top sealent Length |
4 ± 0.3 mm | |
|
T |
Cell Thickness max. |
Initial |
10mm |
| After 300 cycle life | 10.8mm | ||
| W |
Cell Width max. |
30mm | |
| H |
Cell Height max. |
40.5 mm | |
Basic Performance of 103040 Lipo Battery
| No. |
Item |
Specification |
Note |
| 1 |
Rated Capacity |
1200 mAh |
0.2C discharge |
| 2 |
Nominal Capacity |
1230 mAh |
0.2C discharge |
| 3 |
Min. Capacity |
1200 mAh |
0.2C discharge |
| 4 |
Cell Weight |
≈ 21g | |
| 5 | Cell Initial Impedance | ≤ 80mΩ |
3.7V AC 1KHz measured |
| 6 |
Normal Voltage |
3.7 V | |
| 7 |
Initial Voltage |
≥3.8V | |
| 8 | Limited Charge Voltage | 4.2 V |
Voltage of CC charge to CV charge |
| 9 | Standard Charging Method | 0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C | |
| 10 |
Cut-off Voltage |
2.75 V |
Load Voltage when discharge ended |
| 11 | Standard Charging Current | 240mA (0.2C) |
CC charge to 4.2 V, then CV charge till current declines to less than 0.01C
|
| 12 | Standard Charging Time | 6~7 hours | |
| 13 | Rapid Charging Current | 600 mA (0.5C) | |
| 14 | Rapid Charging Time | 约3hours | |
| 15 | Standard Discharging Current | 240mA (0.2C) |
CC discharge to 2.75 V
|
| 16 | Max. Discharging Current | 1200 mA (1C) | |
| 17 | Operating Temperature Range | Charging: 10～ 45℃ Discharging: -20 ～ 60℃ | |
| 18 | Operating humidity Range | ≤ 90%RH | |

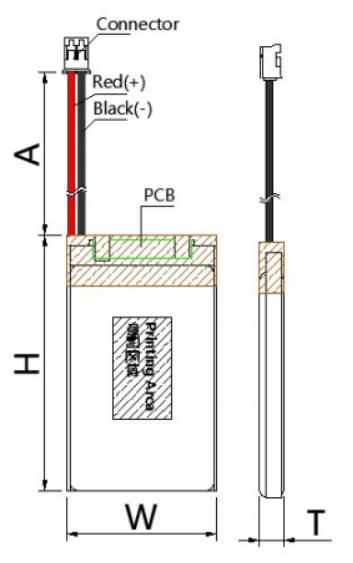

Drawing of 103040 Lipo Battery Pack
|
Item |
Description |
Dimension |
|
|
T |
Battery pack Thickness max. |
Initial |
10mm |
| After 300 cycle life | 10.8mm | ||
| W |
Battery pack Width max. |
30mm | |
| H |
Battery pack Height max. |
42.5mm | |
| A |
Wire Length |
60± 3 mm | |
|
Pack Impedance |
≤ 180mΩ | ||
Pack List of 103040 Lipo Battery
| No. | Item | Quantity | Material | Specification |
| 1 | UNM103040 | 1 | Li-ion polymer cell | 1200mAh |
| 2 | PCB | 1 | Fiber glass polymer compound circuit board | Pass RoHS |
| 3 | wire | 2 | Polythene and copper | UL1007 26WG |
| 4 | connector | 1 | PH2.0-2 | |
| 5 | PVC | / | / | / |
Electrical Characteristics of 103040 Lipo Battery
| No. |
Item |
Min |
Typ |
Max |
Unit |
| 1 | Over-charge Protection Voltage | 4.230 | 4.280 | 4.330 | V |
| 2 |
Over-charge Release Voltage |
4.050 | 4.100 | 4.150 | V |
| 3 | Over-charge Protection Delay Time | / | 80 | 200 | ms |
| 4 | Over-discharge Protection Voltage | 2.300 | 2.400 | 2.500 | V |
| 5 | Over-discharge Release Voltage | 2.900 | 3.000 | 3.100 | V |
| 6 | Over-discharge Protection Delay Time | / | / | 60 | ms |
| 7 | Over-current Protection for Discharge | 2.5 | 3.2 | 4.5 | A |
| 8 |
Internal Resistance |
/ | / | 65 | mΩ |
| 9 |
Operation Static Current |
1.0 | / | 6.0 | µA |
| 10 | Current consumption(Power down) | / | / | 0.5 | µA |
| 11 |
Short Circuit Protection |
Available |
|||
| 12 | Short Circuit Protection Delay Time | / | / | 600 | µs |
PCB Parts List of 103040 Lipo Battery
Li ion Polymer Battery Application
Our Advantages
◆ Over 10 years of li-polymer battery manufacture & export experience
◆ Professional R&D team supporting
◆ Excellent quality, advanced equipment and competitive prices
◆ Good package, cheap freight cost, faster delivery, best after-sales service
◆ OEM / ODM are welcome, we can customize different size to meet customer's requirements
◆ Long life cycle of charging & discharging
