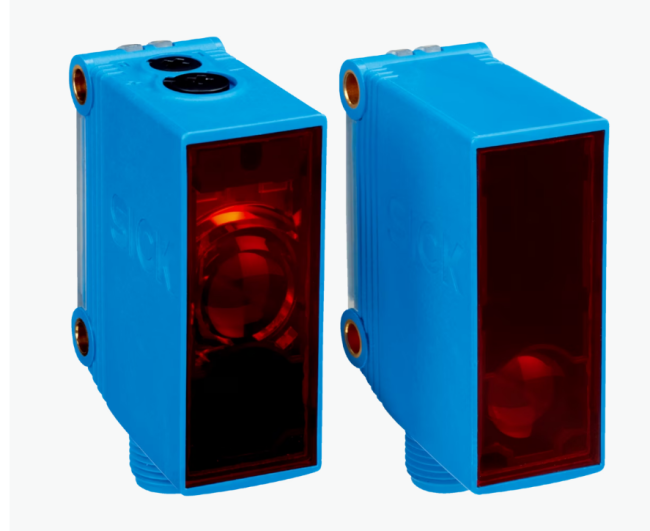

SICK GSE10-P4212 Thru-Beam Photoelectric Sensor, 40m, Visible Red, PNP, M12
Price:
variable
MOQ:
1
Delivery Time:
Negotiate
Brand:
Sick
Product Description
SICK GSE10-P4212 Thru-Beam Photoelectric Sensor, 40m, Visible Red, PNP, M12 Conn Part No 1065903
Features
| Functional principle | Through-beam photoelectric sensor |
| Dimensions (W x H x D) | 20 mm x 50 mm x 39 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 m ... 40 m |
| Sensing range | 0 m ... 35 m |
| Type of light | Visible red light |
| Light source | PinPoint LED 1) |
| Light spot size (distance) | Ø 180 mm (15 m) |
| Wave length | 625 nm |
| Adjustment | Potentiometer, 270° |
Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | < 5 Vpp 2) |
| Power consumption, sender | ≤ 15 mA |
| Power consumption, receiver | ≤ 20 mA |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 500 µs 3) |
| Switching frequency | 1,000 Hz 4) |
| Connection type | Male connector M12, 4-pin |
| Circuit protection | A 5) |
| B 6) | |
| C 7) | |
| D 8) | |
| Protection class | III |
| Weight | 70 g |
| Housing material | Plastic, ABS/PMMA |
| Enclosure rating | IP67 |
| Items supplied | Mounting bracket BEF-G10DC01 (2x) |
| Electromagnetic compatibility (EMC) | EN 60947-5-2 |
| Test input | Sender OFF at "Test" 0 V |
| Ambient operating temperature | –30 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | NRKH.E348498 & NRKH7.E348498 |
| More standards | UL325 9) |
