Danfoss Pressure transmitter, EMP 2 084G2106 , 0.00 bar - 4.00 bar, 0.00 psi - 58.00 psi
Price:
$1--$1000
MOQ:
1set
Delivery Time:
1-10 working days
Brand:
Danfoss
Product Description

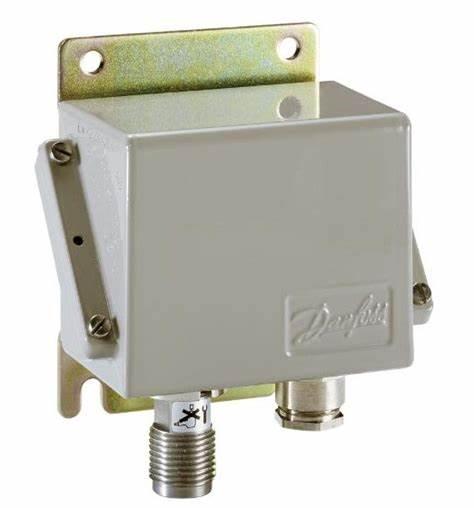

Danfoss Pressure transmitter, EMP 2 084G2106
Specification
Pressure reference: Gauge (relative),
Output signal: Current,
Electrical connection: Terminal block,
Pressure connection type: G,
Pressure connection size: 1/2,
Specification key: EMP 2-1611-F6CD24-2
| Gross weight | 1.07 Kilogram |
| Net weight | 0.98 Kilogram |
| Volume | 2.5 Liter |
| EAN | 5702423006724 |
| + supply | P |
| - common | N |
| Accuracy, max. [±FS%] | 0.01 |
| Accuracy, typical [±FS%] | 0.005 |
| Approval | ABS |
| BV | |
| CCS | |
| DNV | |
| GL | |
| GOST POCC | |
| KR | |
| LR | |
| NNK | |
| RINA | |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 70 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Compensated temp. range [°F] [max] | 158 °F |
| Compensated temp. range [°F] [min] | 32 °F |
| Electrical connection | Terminal block |
| Electrical connection size | Pg 13.5 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Out of scope |
| Flush diaphragm | No |
| High Clipping Level | 22.4 |
| In scope of WEEE and contain batteries | No |
| International Article Number | 5702423006724 |
| Intrinsically safe | No |
| Low Clipping level | 3.6 |
| Medium temperature range [°C] [max] | 70 °C |
| Medium temperature range [°C] [min] | -10 °C |
| Medium temperature range [°F] [max] | 158 °F |
| Medium temperature range [°F] [min] | 14 °F |
| Non-linearity BFSL [±FS%] | 0.30% |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 8 bar |
| Packing format | Multi pack |
| Pressure connection notes | EXT. G1/4 INT |
| Pressure connection size | 1/2 |
| Pressure connection standard | EN 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male/Female |
| Pressure range [bar] [max] | 4 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 58 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 6010d1e2-f473-4af2-afdd-bb494bdd0100 |
| SCIP dossier product name | EMP |
| Specification key | EMP 2-1611-F6CD24-2 |
| Supply voltage [V] DC [max] | 32 V |
| 32 V | |
| Supply voltage [V] DC [min] | 12 V |
| 12 V | |
| Type | EMP 2 |
| UK RoHS compliance | Out of scope |
Ordering Information
| Visuals | Document Category | Title |
|---|---|---|
 |
Product photo | EMP 2 Box-type pressure transmitters |
 |
3D model | EMP 2 |
