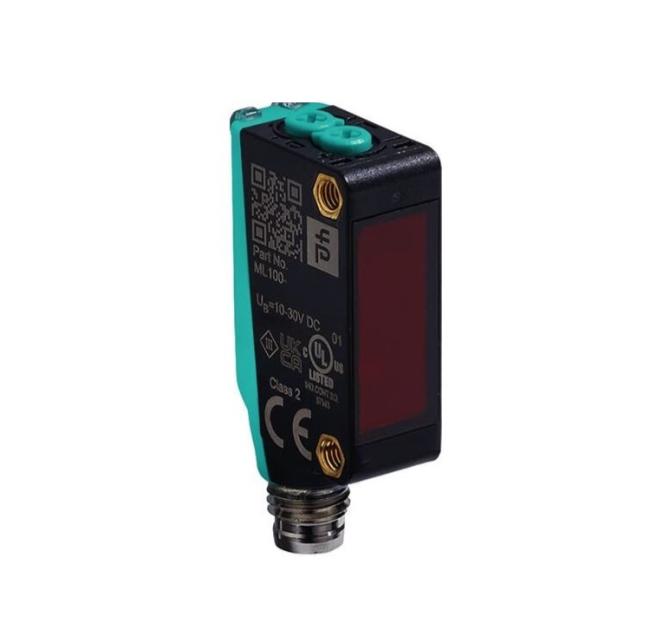

Pepperl+Fuchs ML100-55/95/103 P+F Retroreflective sensor ML100-55/95/103

Price Negotiable

Price: variable

MOQ: 1

Delivery Time: Negotiate

Brand: Pepperl+Fuchs

Product Description

Pepperl+Fuchs P+F Retroreflective sensor ML100-55/95/103

Specification

Part Number:	ML100-55/95/103
Manufacturer:	Pepperl+Fuchs
Condition :	Brand New
Warranty :	12 months
Product Type	Retroreflective sensor

Datasheet excerpt: Technical data of ML100-55/95/103

Product Description
Retroreflective sensor with polarization filter, plastic housing, 5 m detection range, red light, sensitivity adjuster, light/dark on, DC version, PNP output, M8 plug

General specifications
Effective detection range		0 ... 5 m
Reflector distance		0.01 ... 5 m
Threshold detection range		7 m
Reference target		H50 reflector
Light source		LED
Light type		modulated visible red light
Polarization filter		yes
Diameter of the light spot		approx. 500 mm at a distance of 7 m
Opening angle		approx. 4 °
Optical face		frontal
Ambient light limit		EN 60947-5-2:2007+A1:2012
Functional safety related parameters
MTTF_d		860 a
Mission Time (T_M)		20 a
Diagnostic Coverage (DC)		0 %
Indicators/operating means
Operation indicator		LED green: power on
Function indicator		LED yellow: lights up when receiving the light beam ; flashes when falling short of the operating reserve; OFF when light beam is interrupted
Control elements		sensitivity adjustment
Control elements		Light-on/dark-on changeover switch
Electrical specifications
Operating voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load supply current		< 20 mA
Output
Switching type		The switching type of the sensor is adjustable. The default setting is: light-on
Signal output		1 PNP output, short-circuit protected, reverse polarity protected, open collector
Switching voltage		max. 30 V DC
Switching current		max. 100 mA , resistive load
Voltage drop		≤ 1.5 V DC
Switching frequency		1000 Hz
Response time		0.5 ms
Conformity
Product standard		EN 60947-5-2
Approvals and certificates
UL approval		cULus Listed, Class 2 Power Source or listed Power Supply with a limited voltage output with (maybe integrated) fuse (max. 3.3 A according UL248), Type 1 enclosure
CCC approval		CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature		-30 ... 60 °C (-22 ... 140 °F)
Storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical specifications
Degree of protection		IP67
Connection		Connector M8 x 1 , 4-pin
Material
	Housing	PC (Polycarbonate)
	Optical face	PMMA
Mass		approx. 10 g
Tightening torque, fastening screws		0.6 Nm
Dimensions
	Height	31 mm
	Width	11 mm
	Depth	20 mm

Classifications

System	Classcode
ECLASS 13.0	27270902
ECLASS 12.0	27270902
ECLASS 11.0	27270902
ECLASS 10.0.1	27270902
ECLASS 9.0	27270902
ECLASS 8.0	27270902
ECLASS 5.1	27270902
ETIM 9.0	EC002717
ETIM 8.0	EC002717
ETIM 7.0	EC002717
ETIM 6.0	EC002717
ETIM 5.0	EC002717
UNSPSC 12.1	39121528
