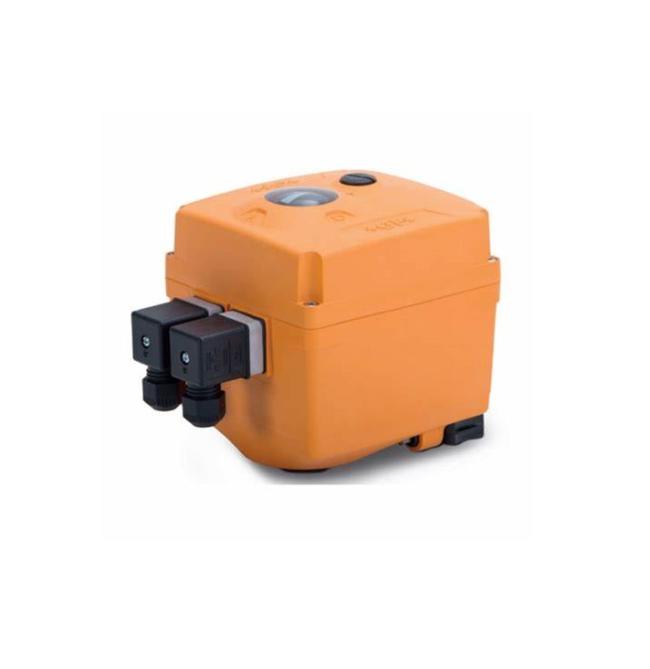

EA15E Georg Fischer Electric actuator type EA15E

Product Description:

The EA15 shall be partial a turn electric actuator utilized in open/close applications. The actuator housing shall be of glass-filled PP material construction. An emergency manual override shall be integrated. The actuator base mount shall comply with ISO 5211. Position detection components shall be of solid state design with two programmable end stops available and each end stop shall utilize a bistable relay for position feedback. End stops shall be adjustable via a series of push buttons. An internal adjustable heater shall be integrated and utilize a temperature sensor within the actuator housing. A 7 segment display shall communicate fault status. Optical position indication shall be integrated and reinforced with a color specific LED. All actuators shall be manufactured under ISO9001 for Quality and ISO14001 for Environmental Management.

Features:

General

• Nominal Torque: 10 Nm
• Peak Torque: 20 Nm • Base Mount: F05
• Actuator Housing: Glass-filled PP
• DIN Plug Connection: Cable gland
• Manual Override: Integrated
• Position Indicator: LED, optical, integrated
• Position Feedback: Open, close
• Heater: 10 position adjustable
• Protection Class: IP67

Actuator Certifications/Compliance

• Machinery Directive 2006/42/EC, Annex II B
• EMV Directive CE 2004/108/CE
• EMV VDE 0843 Section 20
• Low Voltage Directive CE 2006/95/CE
• Vibration Testing EN 60068-2-6
• Actuators for Industrial Valves EN 15714-2
