EVE Prismatic Battery Cell, Superior Long Cycle Life Battery Cells, 3.2V 306Ah Cells For Solar Energy Storage Systems
EVE Prismatic Battery Cell, Superior Long Cycle Life Battery Cells, 3.2V 306Ah Cells For Solar Energy Storage Systems And Wind Energy Storage Systems
Product Features
1. Ultra-Long Cycle Life: These cells boast an exceptional cycle life of 10,000 cycles, ensuring longevity and durability. They can withstand frequent charging and discharging cycles without significant degradation, making them ideal for long-term use in various applications.
2. High Safety Performance: With advanced safety features and robust construction, the 3.2V 306Ah battery cells offer enhanced safety during operation. They are designed to minimize the risk of overheating, short circuits, and other potential hazards, ensuring reliable and secure performance.
3. Environmentally Friendly: These battery cells are environmentally friendly, utilizing eco-friendly materials and manufacturing processes. They are free from harmful chemicals and heavy metals, reducing their environmental impact and promoting sustainability in energy storage solutions.
Product Specification
| Item | Parameter | Remark |
| Model type | MB30 | |
| Nominal capacity | 306Ah | 0.5C / 0.5C, 25℃ ± 2℃, 2.5V~ 3.65 V, Fresh cell |
| Nominal energy | 979.2Wh | |
| Nominal voltage | 3.2V | 0.5C discharge, 25℃ ± 2℃, 2.5V~3.65 V |
| End-off charge voltage | 3.65V | / |
| End-off discharge voltage | 2.5V ( T >0℃ ) 2.0V ( T <0℃ ) |
/ |
| Standard Charging Power | 0.5 P | 25℃ ± 2℃ |
| Max. Continuous Charging Powert | 0.5 P | |
| Standard Discharging Power | 0.5 P | |
| Max. Continuous Discharging Power | 0.5 P | |
| Initial IR | 0.18 mΩ ± 0.05 mΩ | AC, 1 kHz, Delivery SOC, Fresh cell |
| Weight | 5600 g ±300 g | |
| Dimension | H1: 207.2 ± 0.5 mm | With Terminal |
| H2: 204.6 ± 0.5 mm | Without Terminal | |
| L : 173.7 ± 0.50 mm | / | |
| T: 71.7 ± 0.8 mm | / | |
| Charge Temperature | 0℃~60℃ | / |
| Discharge Temperature | -30℃~60℃ | / |
| Storage temperature | 1 year: 0℃ ~ 35℃ | Delivery SOC |
| 1 month: -20℃ ~ 45℃ | ||
| 25℃ Cycle Life | 10000 cycles, 70% SOH, 25℃ |
Product Applications
The 3.2V 306Ah cells are versatile:
Solar Energy Storage: Efficiently store excess solar energy, enhancing system stability and reducing grid reliance.
Wind Energy Storage: Store surplus wind energy, ensuring consistent power supply despite varying wind conditions.
Off-Grid Power Systems: Provide reliable energy storage for off-grid locations, ensuring continuous power supply for critical loads.
Energy Backup Solutions: Serve as effective backup power solutions for commercial and industrial facilities during grid outages, safeguarding essential operations.

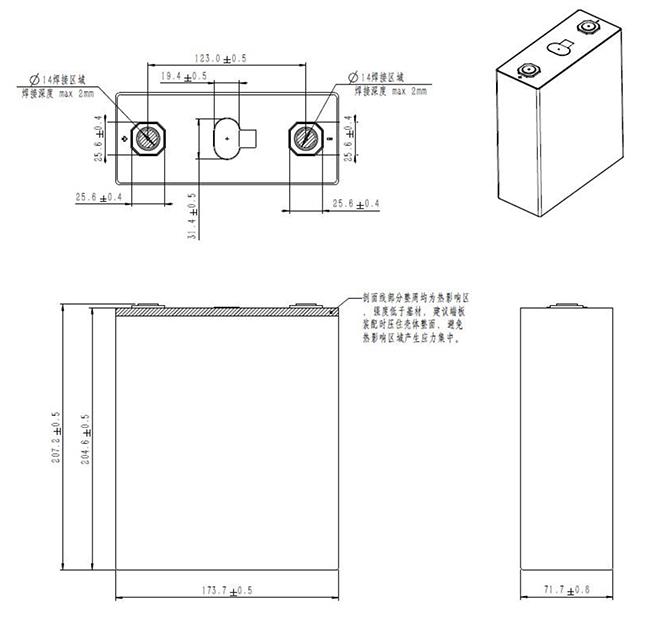

Dimensions
