For 35-40 Ton Excavator KS350 Silenced Type Hydraulic Rock Breaker 165mm Chisel
KS350 Silenced Type Hydraulic Breaker 165mm Chisel Diameter Suitable 35~40 Ton Excavator
This is our product brochure. Please download it if you need it. >>>
[ KEISHARP Hydraulic Breaker catalogue.pdf ]
Device Information
| Model Number | KS350 | ||
| Weight | Side | kg | 3320 |
| Top | kg | 3621 | |
| Silent | kg | 3149 | |
| Length | Side | mm | 2860 |
| Top | mm | 3370 | |
| Silent | mm | 3369 | |
| Working flow | L/min | 210~270 | |
| Work stress | bar | 200~220 | |
| Impact frequency | bpm | 150~300 | |
| Brazing rod diameter | mm | 165 | |
| Matching host | t | 35~40 | |
Specification
| Model Number | KS60 | KS80 | KS100 | KS120 | KS150 | KS220 | KS320 | KS350 | ||
| Weight | Side | kg | 170 | 250 | 360 | 597 | 709 | 1900 | 2750 | 3320 |
| Top | kg | 173 | 296 | 396 | 625 | 842 | 2134 | 2995 | 3621 | |
| Silent | kg | 180 | 362 | 466 | 666 | 886 | 1910 | 2610 | 3149 | |
| Length | Side | mm | 1170 | 1398 | 1545 | 1778 | 1946 | 2420 | 2707 | 2860 |
| Top | mm | 1436 | 1598 | 1787 | 2109 | 2284 | 2824 | 3133 | 3370 | |
| Silent | mm | 1446 | 1652 | 1862 | 2140 | 2310 | 2786 | 3161 | 3369 | |
| Working flow | L/min | 20~50 | 40~70 | 50~90 | 60~100 | 80~110 | 130~180 | 180~250 | 210~270 | |
| Work stress | bar | 80~130 | 110~140 | 140~150 | 150~160 | 160~170 | 160~180 | 190~220 | 200~220 | |
| Impact frequency | bpm | 600~1100 | 500~900 | 400~800 | 400~800 | 350~700 | 400~550 | 250~350 | 150~300 | |
| Brazing rod diameter | mm | 53 | 68 | 75 | 85 | 100 | 140 | 155 | 165 | |
| Matching host | t | 2.5~4.5 | 4~7 | 6~9 | 7~14 | 10~16 | 20~27 | 27~35 | 35~40 | |
| Model Number | KS400 | KS450 | KS500 | KS550 | KS600 | KS650 | KS850 | KS1000 | ||
| Weight | Side | kg | 4300 | 5250 | 5350 | 5500 | 6300 | 7900 | 10200 | 12100 |
| Top | kg | 4617 | 6122 | 6242 | 6402 | 7276 | 8151 | 12000 | 14026 | |
| Silent | kg | 4575 | 5300 | 5420 | 5580 | 6052 | 7525 | 11374 | 13400 | |
| Length | Side | mm | 3070 | 3325 | 3330 | 3380 | 3445 | 3710 | 4230 | 4525 |
| Top | mm | 3648 | 3917 | 4026 | 4076 | 4185 | 4295 | 5048 | 5230 | |
| Silent | mm | 3683 | 3904 | 4030 | 4080 | 4212 | 4345 | 5098 | 5280 | |
| Working flow | L/min | 220~280 | 245~290 | 255~300 | 290~340 | 310~360 | 340~440 | 400~530 | 450~580 | |
| Work stress | bar | 200~230 | 270~290 | 270~290 | 280~300 | 280~300 | 290~310 | 290~310 | 290~310 | |
| Impact frequency | bpm | 150~200 | 100~150 | 100~150 | 100~150 | 100~150 | 90~130 | 70~120 | 70~120 | |
| Brazing rod diameter | mm | 175 | 190 | 195 | 200 | 205 | 210 | 230 | 255 | |
| Matching host | t | 40~50 | 45~55 | 50~60 | 50~65 | 55~65 | 65~100 | 80~120 | 90~160 | |

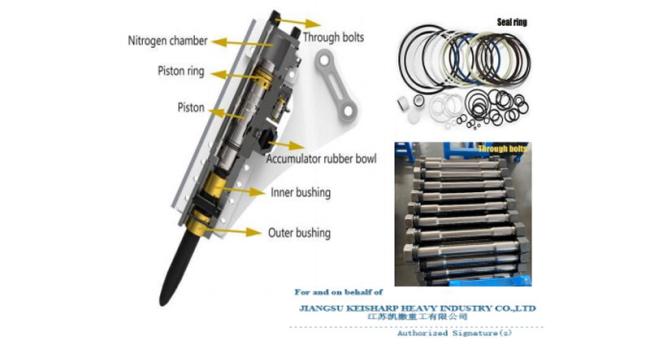

Technical Features
- Inner jacket, coat: High strength custom alloy steel for longer life and less maintenance.
- Brazing rod: Staged heat treatment process, strong and durable.
- Lower cylinder: Optimized structure with excellent strength and toughness as well as durability.
- Oil seal: Adopt the world famous brand.
- Main valve: Be responsive with modular design.
- Piston: Industry leading material SNCM616V/26V.
Workshop
KEISHARP Heavy Industries has introduced the latest technology and related authorized patents from Germany, imported a full set of production lines and equipment from Doosan Korea, integrated 5G IOT with the whole process R&D and manufacturing technology of heavy machinery, and focused on the technology R&D and intelligent manufacturing of hydraulic crusher under 5G mechanical intelligent application scenarios.
Company Introduction
FAQ
Q: Are you a manufacturer?
A: We are a professional manufacturer, integrating research and development, production, sales and service in one comprehensive service provider.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breakers and 6 months for spare parts.
Q: Can you produce according to customer's design?
A: Sure, OEM & ODM service available. We are professional manufacturer in Jiangsu.
Q: How about delivery terms?
A: Spot in 5~7 workdays, Order in 10~15 workdays after payment.
Q: How to choose the suitable model?
A: 1. Choose model according to excavator model(Excavator weight) 2. Choose model according to client's country or decided by client himself.
