mine grinding ball Forged grinding steel balls 40Cr/b2/b3 HRC>58

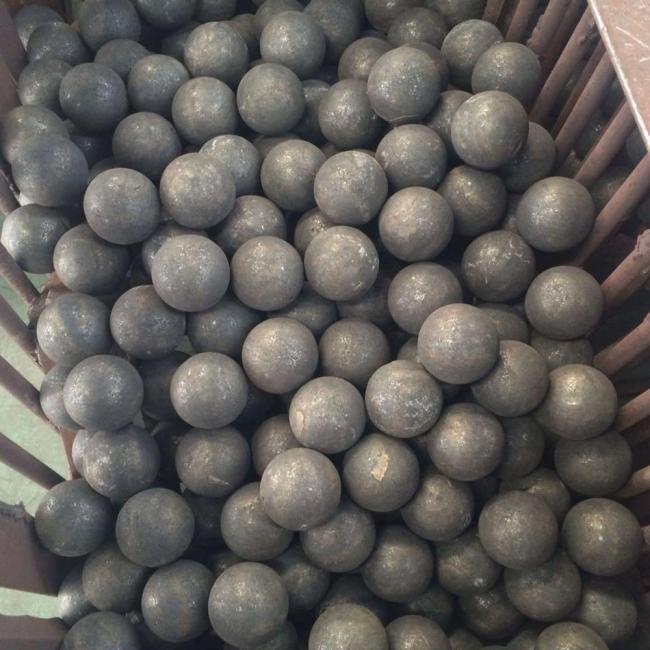

Forged(hot rolling)steel ball: Our company mainly produces Φ20mm-Φ200mm forged steel ball. Huafu balls feature high accurate dimensions,rounded geometry shape, high hardness and good mechanical properties,wear-resistance,no deformation,no breakage.
Huafu is equipped with advanced casting and forging producing facilities, a full inspection system, well educated professional persons and a management team. We import automatic hot rolling steel ball production line and semi-automatic hot rolling production line for the fast changing market. We also make our advanced heat processing lines. Our products are all produced of good-quality steel. They are cut by plasma cutting machines and heated by electric furnaces which increase the full hardness, impact the toughness and lower the break rate of steel balls.
Diameter tolerance and roundness
| Diameter | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 125 | 150 |
| Tolerance(mm) | ±2 | +3,-2 | +4,-3 | +5,-4 | ||||||||
| Roundness(%) | ≤2 | ≤3 | ≤4 | ≤5 | ||||||||
We mainly produce as follows kinds of forged (hot rolling) steel ball
| Brand | C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | Ni(%) |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.80 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 50Mn | 0.48-0.56 | 0.17-0.37 | 0.60-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 60Mn | 0.57-0.65 | 0.17-0.37 | 0.70-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 65Mn | 0.62-0.70 | 0.17-0.37 | 0.90-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| U71MN | 0.65-0.76 | 0.17-0.37 | 1.10-1.40 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 40Cr | 0.37-0.45 | 0.17-0.37 | 0.50-0.8 | 0.80-1.1 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 42CrMo | 0.38-0.45 | 0.17-0.37 | 0.50-0.80 | 0.90-1.2 | 0-0.03 | 0.15-0.25 | 0-0.035 | 0-0.035 | 0-0.30 |
| 70Cr2 | 0.65-0.75 | 0.20-0.30 | 0.75-0.90 | 0.55-0.70 | 0-0.25 | 0-0.30 | 0-0.030 | 0-0.030 | 0-0.30 |
| 40Mn2 | 0.37-0.44 | 0.17-0.37 | 1.4-1.8 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.30 | 0-0.30 |
| B-2 | 0.70-0.80 | 0.17-0.37 | 0.70-0.80 | 0.40-0.60 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| B-3 | 0.58-0.66 | 1.2-1.6 | 0.65-0.80 | 0.70-0.90 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| B-4 | 0.60-0.65 | 1.6-1.7 | 0.7-0.8 | 0.7-0.8 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| B-6 | 0.75-0.85 | 0.2-0.40 | 0.9-1.0 | 0.85-0.95 | 0-0.25 | 0.06-0.13 | 0-0.035 | 02-0.035 | 0.06-0.13 |
| B-6A | 0.82-0.95 | 0.20-0.40 | 0.92-1.02 | 0.80-0.95 | 0-0.25 | 0.06-0.10 | 0-0.035 | 0-0.035 | 0.06-0.10 |
| B-7 | 0.35-0.40 | 0.17-0.37 | 0.7-0.8 | 0.9-1.0 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| BU | 0.95-1.05 | 0.17-0.37 | 0.9-1.10 | 0.40-0.60 | 0-0.15 | 0-0.05 | 0-0.035 | 0-0.035 | 0-0.30 |
| Gr15 | 0.95-1.05 | 0.15-0.35 | 0.20-0.40 | 1.30-1.65 | 0-0.25 | 0-0.10 | 0-0.027 | 0-0.020 | 0-0.10 |
Technical specification of forged(hot rolling)steel ball
| Brand | Breakage rate | Hardness | Impact value | Drop times | Micro structure |
| 45# | <1% | ≥45 | ≥12 | ≥8000 | M+C |
| 50Mn | <1% | ≥55 | ≥12 | ≥10000 | M+C |
| 60Mn | <1% | ≥55 | ≥12 | ≥12000 | M+C |
| 65Mn | <1% | ≥58 | ≥12 | ≥12000 | M+C |
| U71MN | <1% | ≥58 | ≥12 | ≥12000 | M+C |
| 40Cr | <1% | ≥55 | ≥12 | ≥12000 | M+C |
| 42CrMo | <1% | ≥55 | ≥12 | ≥12000 | M+C |
| 70Cr2 | <1% | ≥58 | ≥12 | ≥12000 | M+C |
| 40Mn2 | <1% | ≥55 | ≥12 | ≥12000 | M+C |
| B-2 | <1% | ≥58 | ≥12 | ≥15000 | M+C |
| B-3 | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| B-4 | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| B-6 | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| B-6A | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| B-7 | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| BU | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| Gr15 | <1% | ≥60 | ≥12 | ≥15000 | M+C |
Production process of Forged steel ball
Roll forging production line
Manual put material into storage rack→automatic continued feeding device→stokehole pinch roll feeding device→furnace heating→pinch roll discharging speediness discharging→enter into rolling ball machine→rolling ball quenching system→steel ball sweltering self tempering device→finished product steel ball
Environment
Jinan Huafu Forging Co.,Ltd is locates in Zhangqiu city,Shandong province,Our company covers the 8000square meters area, over 100 employees, annual production capacity is 100000 tons, invested 11 million yuan. Our company main produce forged steel ball, casting iron ball, steel cylpebs, grinding rod, millliners, steel, hammerhead, automatic production line of steel ball & grinding rod and decorative wrought iron products.
PICTURES OF THE FACTORY
Full view of the factory
business premises
Factory area
Research building
