5inch low wear high hardness grinding steel ball for ball mill
5inch low wear high hardness grinding steel ball for ball mill
Our Address: Zhangqiu city,Shandong province
Our company area:80000square meters area
Our employees:over 100
Annual production capacity:100000 tons
Registered capital:50 million yuan.
Main products:forged steel ball,casting iron ball,steel cylpebs ,grinding rod,mill liners,steel,hammerhead,automatic production line of steel ball &grinding rod and decorative wrought iron products.
1.Diameter tolerance and roundness
| Diameter | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 125 | 150 |
| Diameter roundness(mm) | ±2 | +3,-2 | +4,-3 | +5,-4 | ||||||||
| Roundness(%) | ≤2 | ≤3 | ≤4 | ≤5 | ||||||||
2.Chemical composition
| Brand | C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | Ni(%) |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.80 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 40Mn | 0.37-0.44 | 0.17-0.37 | 0.7-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 50Mn | 0.48-0.56 | 0.17-0.37 | 0.60-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 60Mn | 0.57-0.65 | 0.17-0.37 | 0.70-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 65Mn | 0.62-0.70 | 0.17-0.37 | 0.90-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 70Mn | 0.67-0.75 | 0.17-0.37 | 0.90-1.20 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 40Cr | 0.37-0.45 | 0.17-0.37 | 0.50-0.8 | 0.80-1.1 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 42CrMo | 0.38-0.45 | 0.17-0.37 | 0.50-0.80 | 0.90-1.2 | 0-0.03 | 0.15-0.25 | 0-0.035 | 0-0.035 | 0-0.30 |
| 70Cr2 | 0.65-0.75 | 0.20-0.30 | 0.75-0.90 | 0.55-0.70 | 0-0.25 | 0-0.30 | 0-0.030 | 0-0.030 | 0-0.30 |
| 40Mn2 | 0.37-0.44 | 0.17-0.37 | 1.4-1.8 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.30 | 0-0.30 |
| 70Mn2 | 0.65-0.75 | 0.20-0.45 | 1.4-1.8 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.030 | 0-0.30 |
| B-1 | 0.52-0.65 | 0.17-0.37 | 0.60-1.2 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| B-2 | 0.70-0.80 | 0.17-0.37 | 0.70-0.80 | 0.50-0.60 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| B-3 | 0.58-0.66 | 1.2-1.6 | 0.65-0.80 | 0.70-0.90 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| B-4 | 0.60-0.65 | 1.6-1.7 | 0.7-0.8 | 0.7-0.8 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| B-6 | 0.75-0.85 | 0.2-0.40 | 0.9-1.0 | 0.85-0.95 | 0-0.25 | 0.06-0.13 | 0-0.035 | 02-0.035 | 0.06-0.13 |
| B-6A | 0.82-0.95 | 0.20-0.40 | 0.92-1.02 | 0.80-0.95 | 0-0.25 | 0.06-0.10 | 0-0.035 | 0-0.035 | 0.06-0.10 |
| B-7 | 0.35-0.40 | 0.17-0.37 | 0.7-0.8 | 0.9-1.0 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| BU | 0.95-1.05 | 0.17-0.37 | 0.9-1.10 | 0.40-0.60 | 0-0.15 | 0-0.05 | 0-0.035 | 0-0.035 | 0-0.30 |
| Gr15 | 0.95-1.05 | 0.15-0.35 | 0.20-0.40 | 1.30-1.65 | 0-0.25 | 0-0.10 | 0-0.027 | 0-0.020 | 0-0.10 |
3.Technical specification
| Brand | Breakage rate | Hardness (HRC) | Impact value (J/cm²) | Drop times (times) | Micro structure |
| 45# | <1% | ≥45 | ≥12 | ≥8000 | M+C |
| 40Mn | <1% | ≥50 | ≥12 | ≥10000 | M+C |
| 50Mn | <1% | ≥55 | ≥12 | ≥10000 | M+C |
| 60Mn | <1% | ≥55 | ≥12 | ≥12000 | M+C |
| 65Mn | <1% | ≥58 | ≥12 | ≥12000 | M+C |
| 70Mn | <1% | ≥60 | ≥12 | ≥12000 | M+C |
| 40Cr | <1% | ≥55 | ≥12 | ≥12000 | M+C |
| 42CrMo | <1% | ≥55 | ≥12 | ≥12000 | M+C |
| 70Cr2 | <1% | ≥58 | ≥12 | ≥12000 | M+C |
| 40Mn2 | <1% | ≥55 | ≥12 | ≥12000 | M+C |
| 70Mn2 | <1% | ≥58 | ≥12 | ≥12000 | M+C |
| B-1 | <1% | ≥55 | ≥12 | ≥12000 | M+C |
| B-2 | <1% | ≥58 | ≥12 | ≥15000 | M+C |
| B-3 | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| B-4 | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| B-6 | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| B-6A | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| B-7 | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| BU | <1% | ≥60 | ≥12 | ≥15000 | M+C |
| Gr15 | <1% | ≥60 | ≥12 | ≥15000 | M+C |

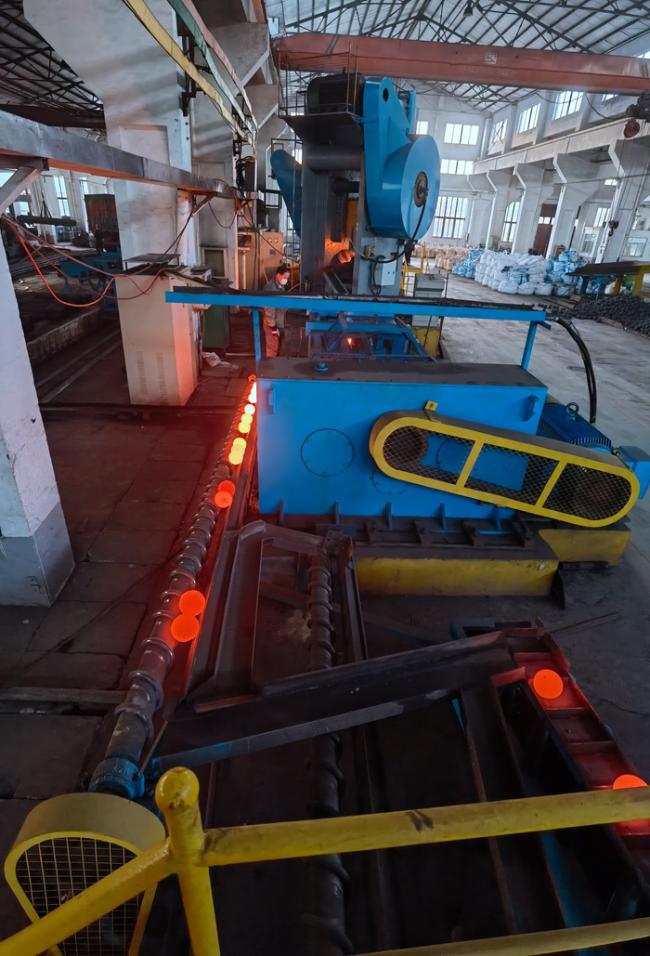

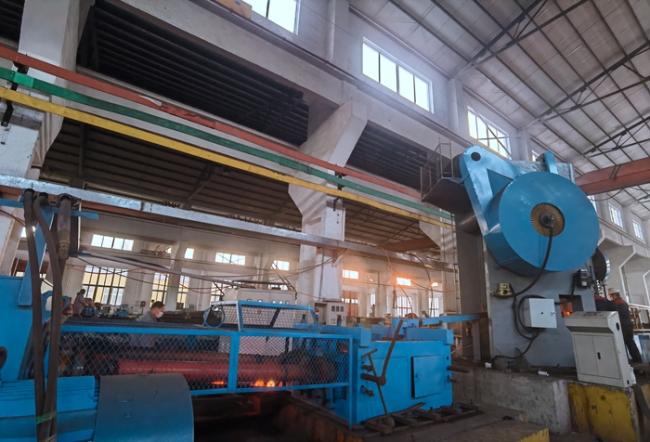

100-150MM Rolling Forging production pictures are as follows:

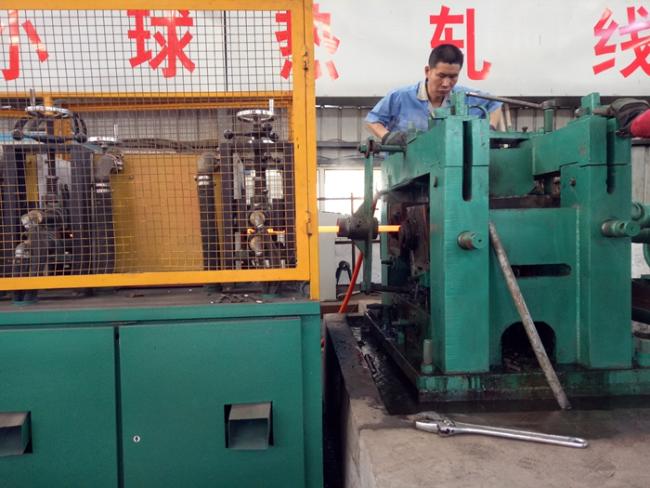

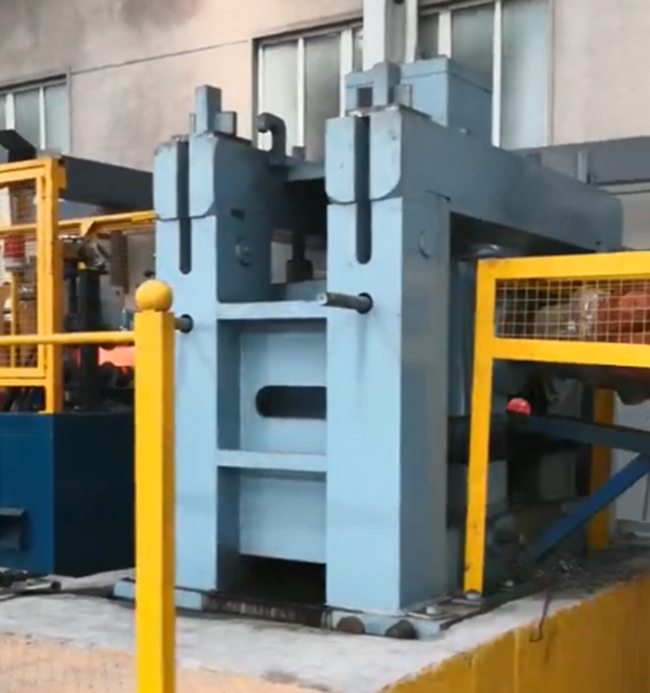

Hot Skew Rolling Production pictures are as folllows:
1.Bag:diameter17-150mm 1000kg/bag
2.Drum:diameter17-25mm 1000kg/drum
diameter30-50mm 950kg/drum
diameter60-70mm 900kg/drum
diameter80-90mm 850kg/drum
diameter100-150mm 800kg/drum
20feet container:25bags or 25-32drums
40feet container:27bags or27-34drums
