60mm Casting Steel Balls Grinding Ball For Mill
Jinan Huafu Forging Co.,Ltd is locates in Zhangqiu city,Shandong province,Our company covers the 8000square meters area, over 100 employees, annual production capacity is 100000 tons, invested 11 million yuan. Our company main produce forged steel ball, casting iron ball, steel cylpebs, grinding rod, millliners, steel, hammerhead, automatic production line of steel ball & grinding rod and decorative wrought iron products.

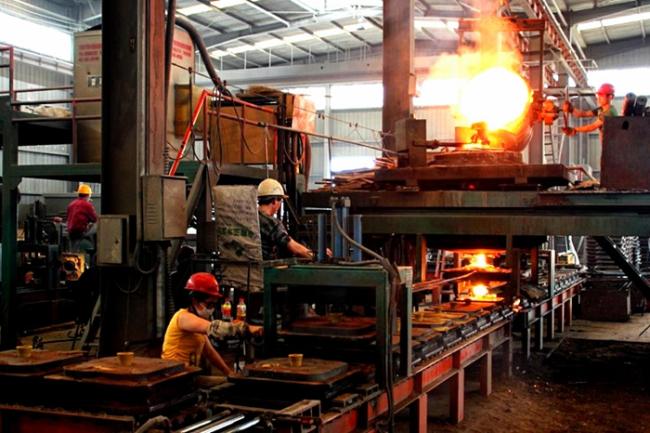

PICTURES OF THE FACTORY
Full view of the factory
business premises

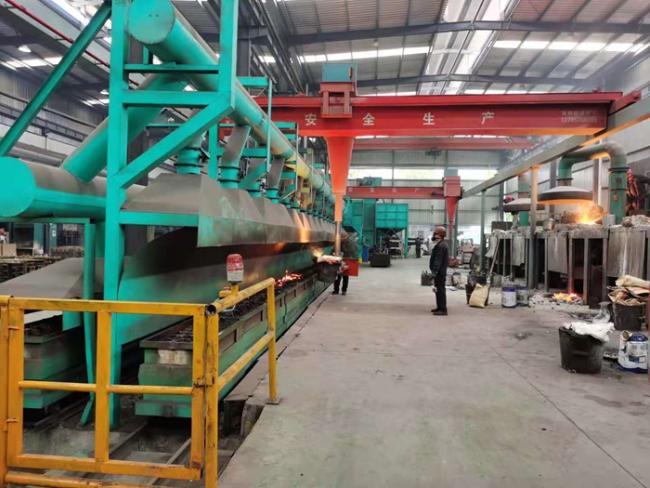

Factory area
Research building
Our company mainly produces 17mm-150mm low, middle, high chrome alloy casting iron ball. Huafu chose large angle steel, scrap steel and other raw material, according to different product, needs adding chrome, manganese, vanadium, titanium, rare earth and as so on metal. Products high hardness, low wear, good toughness and less broken, in the process of using spherewill further improve the surface hardness, wear resistance.
Chrome alloy casting iron ball are widely used in cement, buildingmaterials, metal mining, coal slurry thermal power, chemical engineering, ceramic coating, light industry, papermaking, ultrafine powder preparation of magnetic materials and other industries and further processing.
High chromium alloy cast balls are widely used in powder preparation and ultra-fine deep processing in industries such as cement and building materials, metal mines, coal slurry thermal power, chemical engineering, ceramic coatings, light industry papermaking, magnetic materials, etc. The product has high hardness, low wear, good toughness, and less fragmentation. During use, the surface hardness of the sphere will be further improved, and the wear resistance will be enhanced. At the same time, it can improve the production capacity of the mill, increase the specific surface area of cement, and improve the recovery rate of concentrate.
Diameter tolerance and roundness
| Diameter | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 125 | 150 |
| Tolerance(mm) | ±2 | +3,-2 | +4,-3 | +5,-4 | ||||||||
| Roundness(%) | ≤2 | ≤3 | ≤4 | ≤5 | ||||||||
Chemical composition
| Name | Brand | Chemical composition(%) | ||||||||
| C | Si | Mn | Cr | Mo | Cu | Ni | P | S | ||
| Chrome alloy casting iron ball | ZQCr26 | 2.0-3.3 | 1.2max | 0.3-1.5 | >23.0-30.0 | 0-3.0 | 0-1.2 | 0-1.5 | ≤0.10 | ≤0.06 |
| ZQCr20 | 2.0-3.3 | 1.2max | 0.3-1.5 | >18.0-23.0 | 0-3.0 | 0-1.2 | 0-1.5 | ≤0.10 | ≤0.06 | |
| ZQCr15 | 2.0-3.3 | 1.2max | 0.3-1.5 | >14.0-18.0 | 0-3.0 | 0-1.2 | 0-1.5 | ≤0.10 | ≤0.06 | |
| ZQCr12 | 2.0-3.3 | 1.2max | 0.3-1.5 | >10.0-14.0 | 0-3.0 | 0-1.2 | 0-1.5 | ≤0.10 | ≤0.06 | |
| ZQCr8 | 2.1-3.3 | 2.2max | 0.3-1.5 | 7.0-10.0 | 0-1.0 | 0-0.8 | - | ≤0.10 | ≤0.06 | |
| ZQCr5 | 2.1-3.3 | 1.5max | 0.3-1.5 | 4.0-6.0 | 0-1.0 | 0-0.8 | - | ≤0.10 | ≤0.10 | |
| ZQCr2 | 2.1-3.6 | 1.5max | 0.3-1.5 | 1.0-3.0 | 0-1.0 | 0-0.8 | - | ≤0.10 | ≤0.10 | |

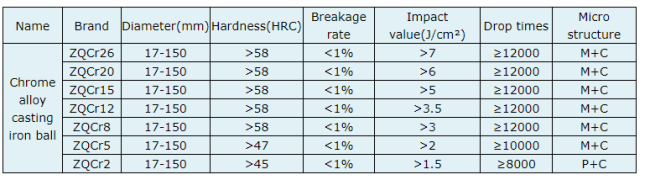

Technical specification
Production process of Chrome alloy casting iron ball:
Raw material→Secientic proportioning→Electric furnace smelting→Assay before furnace→Mould forming→Polishing→Heat treatment→Packing
Professional Team Services
Casting steel balls are widely used in ball mills in industries such as metallurgical mines, cement and building materials, thermal power generation, flue gas desulfurization, magnetic materials, chemicals, coal water slurry, pellets, slag, ultrafine powder, fly ash, calcium carbonate, quartz sand, etc.
Ball mill
Packing and Delivery
