B2 forged steel ball grinding media steel ball for mining
Product description
Forged(hot rolling) steel ball: Our company mainly produces Φ20mm-Φ200mm forged steel ball. Huafu balls feature high accurate dimensions,rounded geometry shape, high hardness and good mechanical properties, wear-resistance, no deformation, no breakage.
Work Fellow

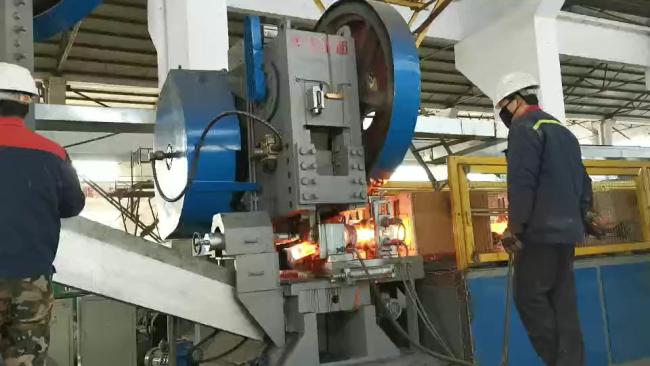

Production process of Forged steel ball
Manual put material into storage rack→automatic continued feeding device→stokehole pinch roll feeding device→furnace heating→pinch roll discharging speediness discharging→enter into rolling ball machine
→rolling ball quenching system→steel ball sweltering self tempering device→finished product steel ball
Diameter tolerance and roundness
| Diameter | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 125 | 150 |
| Tolerance(mm) | ±2 | +3,-2 | +4,-3 | +5,-4 | ||||||||
| Roundness(%) | ≤2 | ≤3 | ≤4 | ≤5 | ||||||||
Chemical composition
| Brand | C(%) | Si(%) | Mn(%) | Cr(%) | Cu(%) | Mo(%) | P(%) | S(%) | Ni(%) |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.80 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 50Mn | 0.48-0.56 | 0.17-0.37 | 0.60-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 60Mn | 0.57-0.65 | 0.17-0.37 | 0.70-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 65Mn | 0.62-0.70 | 0.17-0.37 | 0.90-1.0 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| U71MN | 0.65-0.76 | 0.17-0.37 | 1.10-1.40 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 40Cr | 0.37-0.45 | 0.17-0.37 | 0.50-0.8 | 0.80-1.1 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| 42CrMo | 0.38-0.45 | 0.17-0.37 | 0.50-0.80 | 0.90-1.2 | 0-0.03 | 0.15-0.25 | 0-0.035 | 0-0.035 | 0-0.30 |
| 70Cr2 | 0.65-0.75 | 0.20-0.30 | 0.75-0.90 | 0.55-0.70 | 0-0.25 | 0-0.30 | 0-0.030 | 0-0.030 | 0-0.30 |
| 40Mn2 | 0.37-0.44 | 0.17-0.37 | 1.4-1.8 | 0-0.25 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.30 | 0-0.30 |
| B-2 | 0.70-0.80 | 0.17-0.37 | 0.70-0.80 | 0.40-0.60 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| B-3 | 0.58-0.66 | 1.2-1.6 | 0.65-0.80 | 0.70-0.90 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| B-4 | 0.60-0.65 | 1.6-1.7 | 0.7-0.8 | 0.7-0.8 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| B-6 | 0.75-0.85 | 0.2-0.40 | 0.9-1.0 | 0.85-0.95 | 0-0.25 | 0.06-0.13 | 0-0.035 | 02-0.035 | 0.06-0.13 |
| B-6A | 0.82-0.95 | 0.20-0.40 | 0.92-1.02 | 0.80-0.95 | 0-0.25 | 0.06-0.10 | 0-0.035 | 0-0.035 | 0.06-0.10 |
| B-7 | 0.35-0.40 | 0.17-0.37 | 0.7-0.8 | 0.9-1.0 | 0-0.25 | 0-0.30 | 0-0.035 | 0-0.035 | 0-0.30 |
| BU | 0.95-1.05 | 0.17-0.37 | 0.9-1.10 | 0.40-0.60 | 0-0.15 | 0-0.05 | 0-0.035 | 0-0.035 | 0-0.30 |
| Gr15 | 0.95-1.05 | 0.15-0.35 | 0.20-0.40 | 1.30-1.65 | 0-0.25 | 0-0.10 | 0-0.027 | 0-0.020 | 0-0.10 |
Jinan Huafu Forging Co.,Ltd is locates in Zhangqiu city,Shandong province,Our company covers the 8000square meters area, over 100 employees, annual production capacity is 100000 tons, invested 11 million yuan. Our company main produce forged steel ball, casting iron ball, steel cylpebs, grinding rod, millliners, steel, hammerhead, automatic production line of steel ball & grinding rod and decorative wrought iron products.
PICTURES OF THE FACTORY
Full view of the factory
business premises
Factory area
Research building
Wear-resistant steel balls are widely used in ball mills in industries such as metallurgical mines, cement and building materials, thermal power generation, flue gas desulfurization, magnetic materials, chemicals, coal water slurry, pellets, slag, ultrafine powder, fly ash, calcium carbonate, quartz sand, etc.
Ball mill
Packing and Delivery
Contact us:
1.Are you a manufacturer or a trader?
Manufacturer, some time we help our clients to purchase related products as a trader.
2.What’s the MOQ?
The MOQ varies for different products. Please contact us to understand.
3.how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
4.May I visit your factory?
Yes, we will arrange professional reception personnel to patiently explain to you.
5.Why choose us over other suppliers?
We have a large scale, strong strength, and rich experience, professional technology, and perfect customer service, and have obtained various certifications such as CE/ISO9001.
